Repair and Diagnosis: Electrical: Starters: Overhaul: Starter: Notes
NOTE:
Ensure to apply grease before assembly where indicated "A". See Fig 1
.

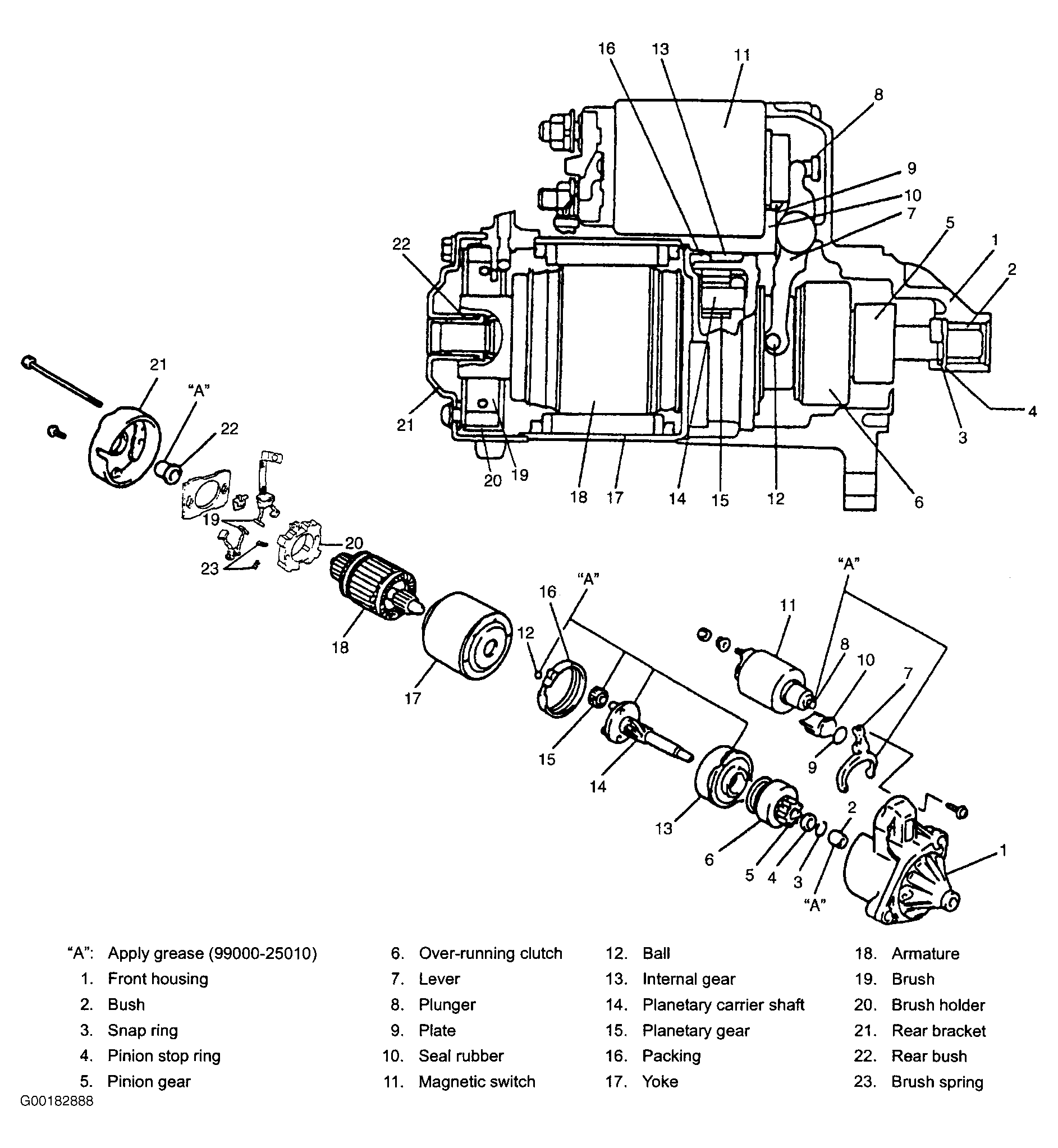

The starter motor consists of parts and has permanent magnets mounted in starting motor yoke (frame). Use exploded view of starter for overhaul. See Fig 1 . The magnetic switch assembly and parts in the starting motor are enclosed in the housings so that they will be protected against possible dirt and water splash.
