Engine Control Module Location

Under instrument panel, behind glove box. See Fig 1.

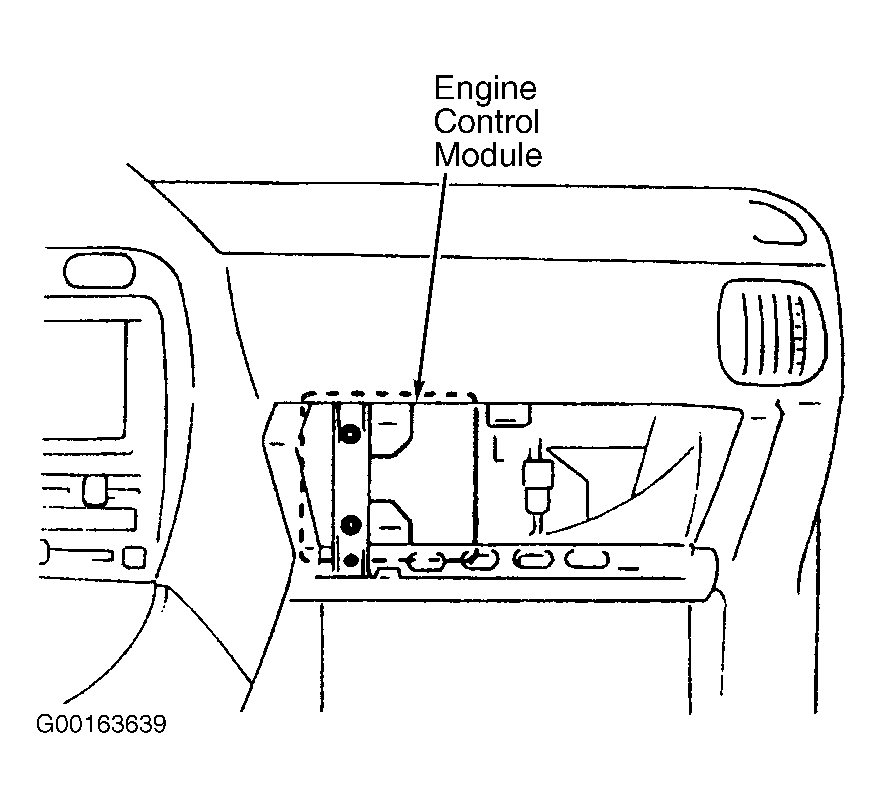

Fig 1: Locating Engine Control Module
G00163639Courtesy of SUZUKI OF AMERICA CORP.
