Component Locations

NOTE: For component locations, refer to appropriate illustrations. See Fig 1 -Fig 6

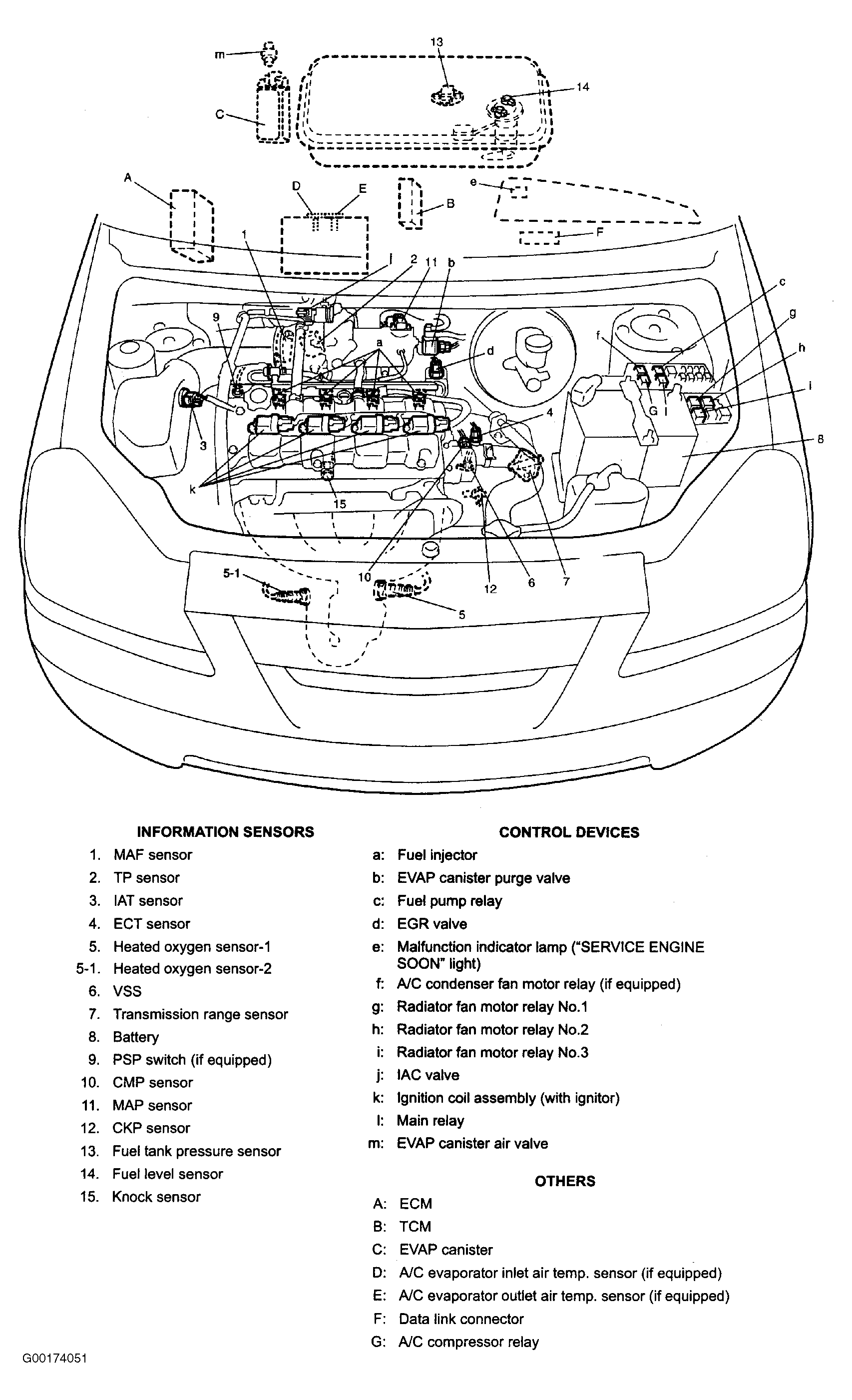

Fig 1: Identifying Component Locations (Aerio)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying Component Locations (Esteem 1.6L)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Identifying Component Locations (Esteem 1.8L)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Identifying Component Locations (Grand Vitara 2.5L)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Identifying Component Locations (Vitara 2.0L)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: Identifying Component Locations (XL-7 2.7L)

Courtesy of SUZUKI OF AMERICA CORP.
