Enable Conditions

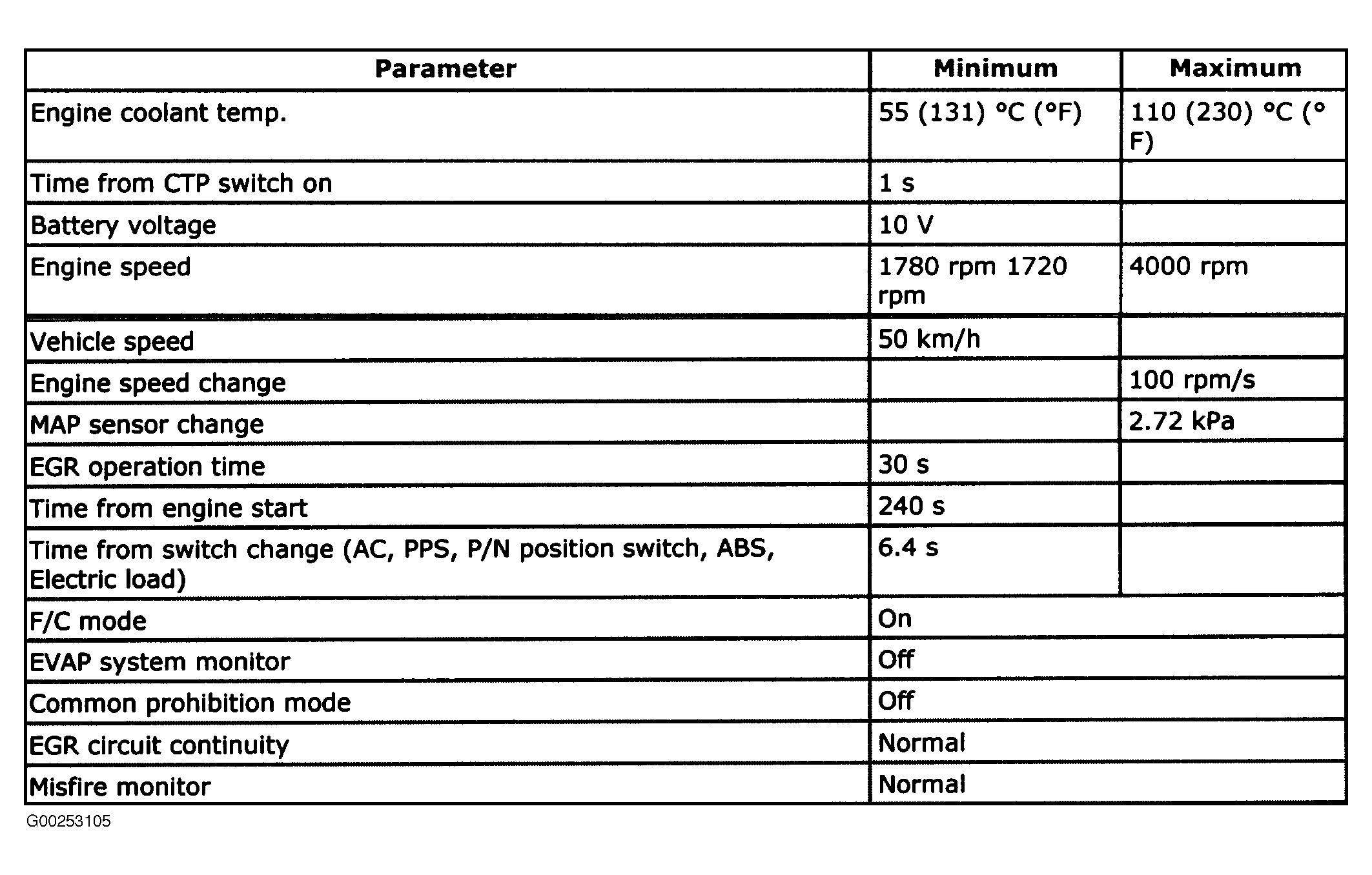

Fig 1: EGR System Monitor Enable Conditions
Courtesy of SUZUKI OF AMERICA CORP.

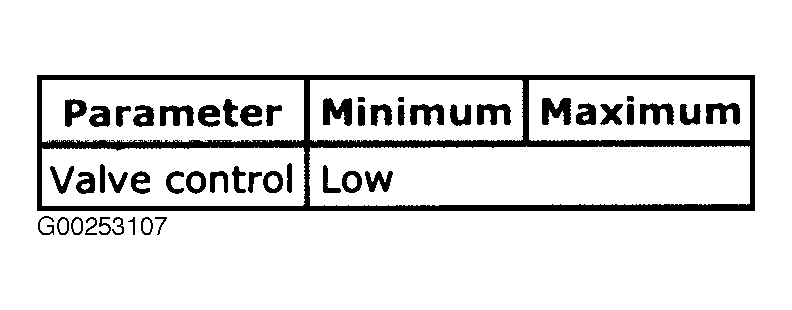

Fig 2: EGR System Circuit Monitor Enable Conditions
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
