H27 engine

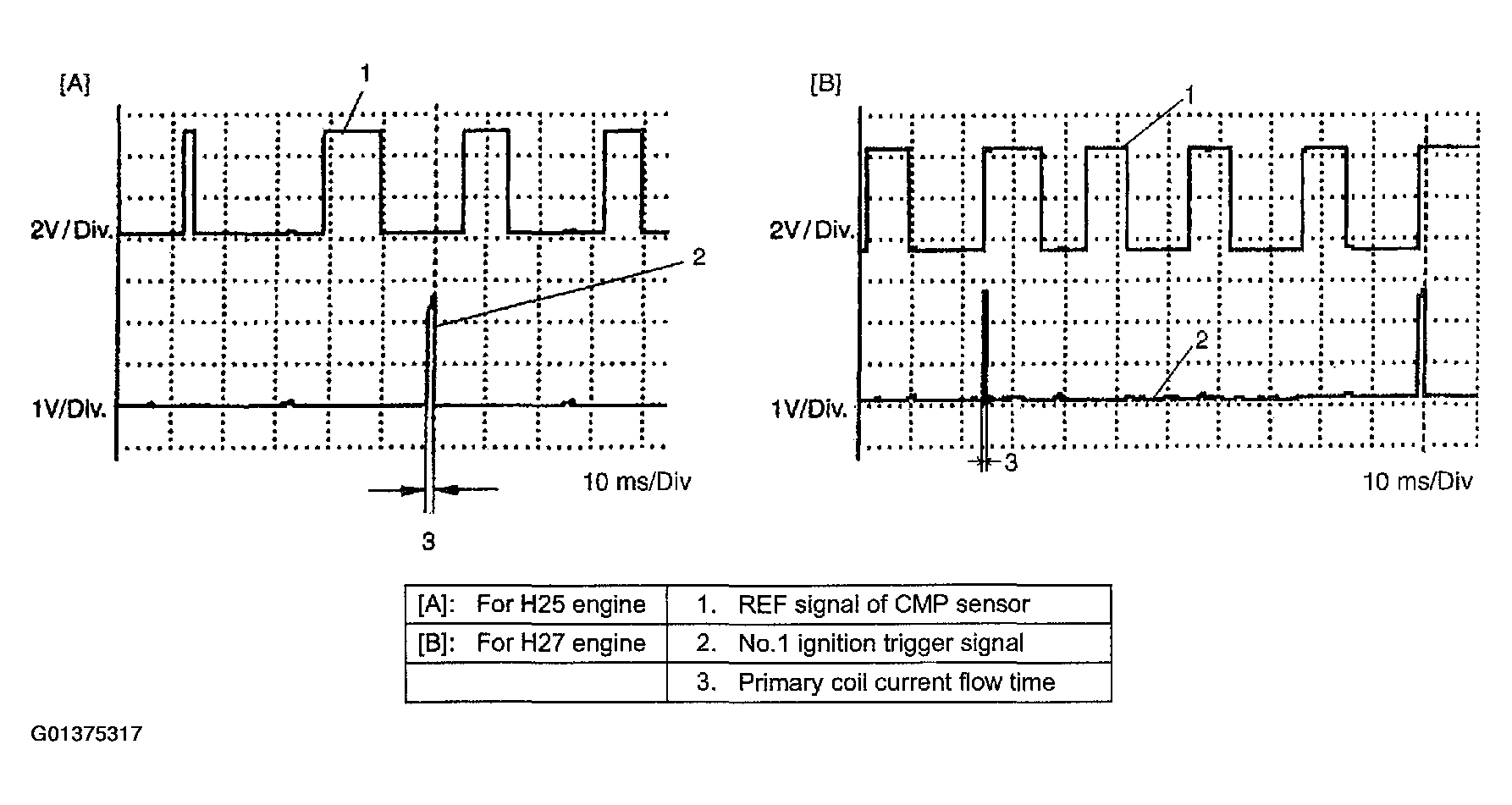

Oscilloscope waveforms of CMP sensor REF signal and No. 1 ignition trigger signal are as shown in figure when connecting oscilloscope between terminal "C51-1-13" of ECM (PCM) connector connected to ECM (PCM) and ground, and between terminal "C51-2-28" and ground.
