ECM Connector Identification

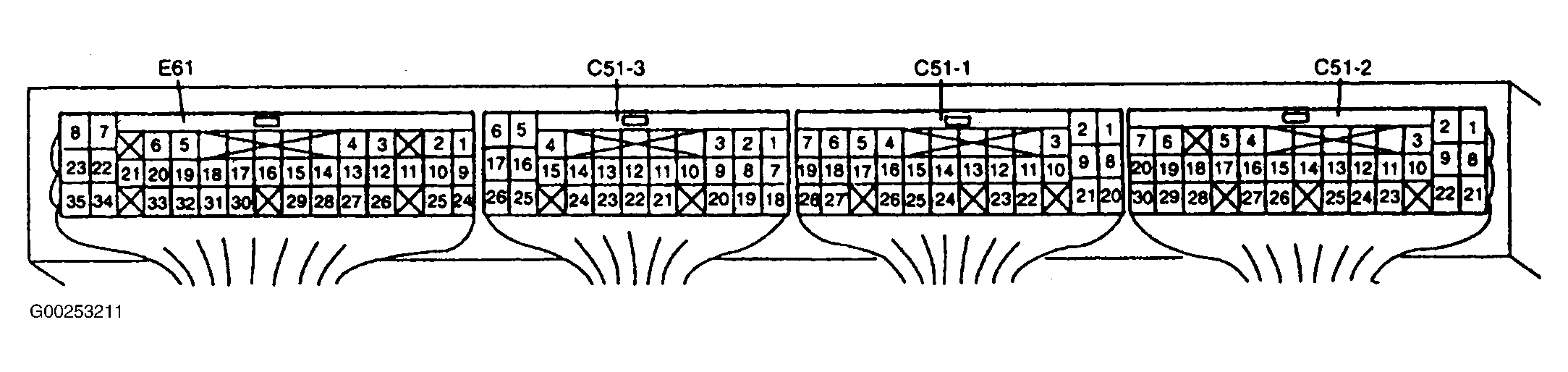

Fig 1: Identifying ECM Harness Connector Terminals

Courtesy of SUZUKI OF AMERICA CORP.

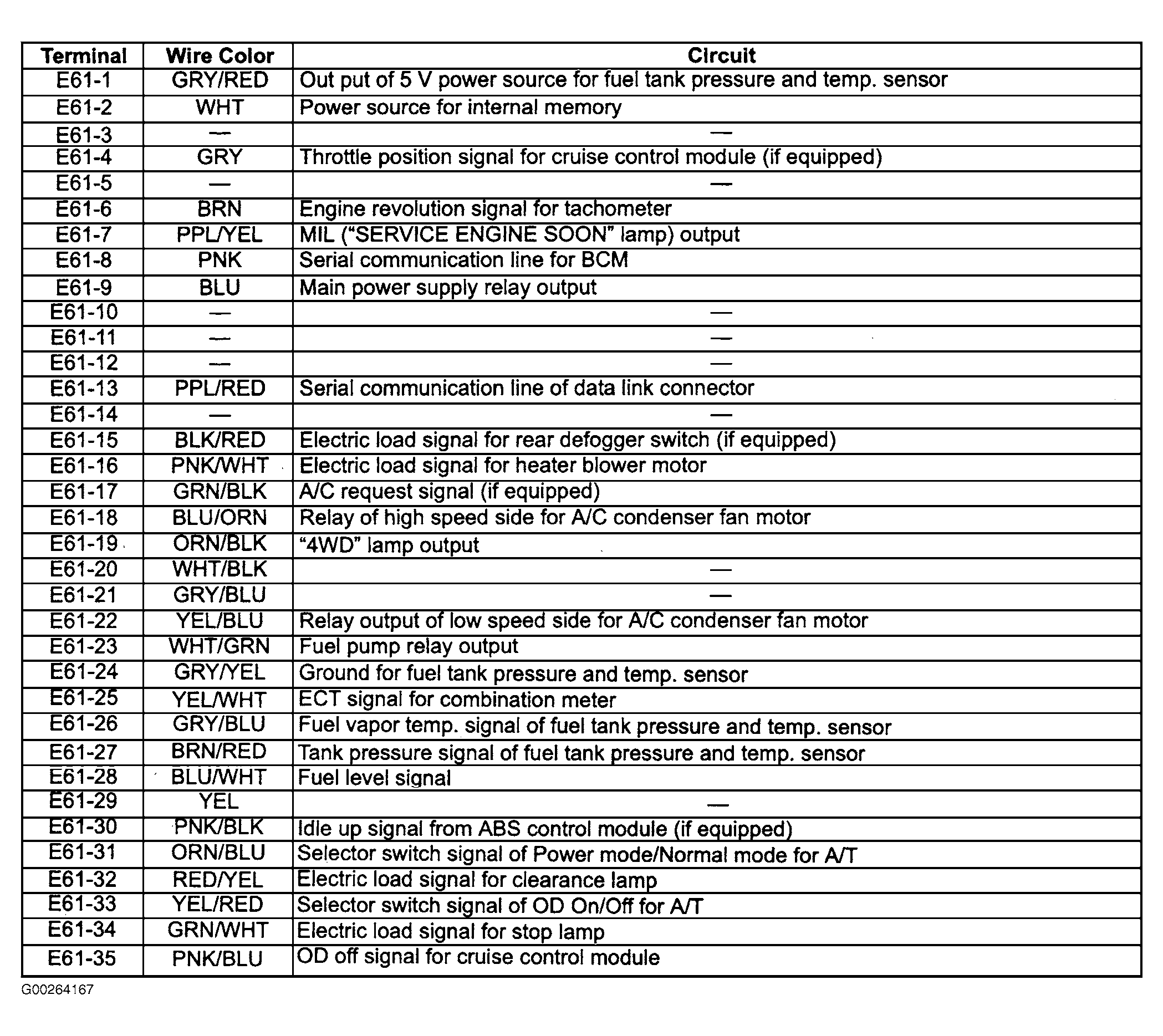

Fig 2: Identifying ECM Connector E61 Circuit Functions

Courtesy of SUZUKI OF AMERICA CORP.

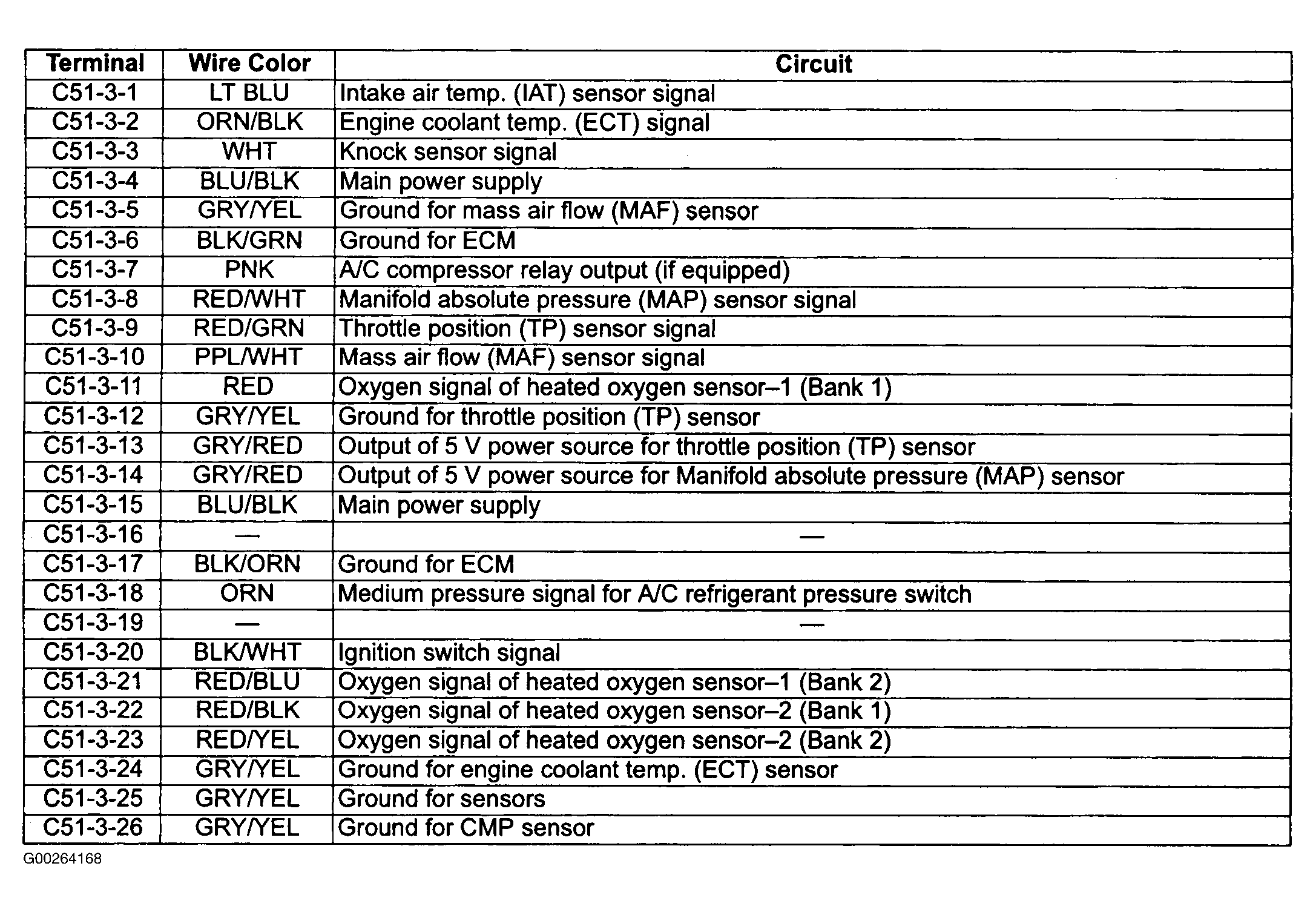

Fig 3: Identifying ECM Connector C51-3 Circuit Functions

Courtesy of SUZUKI OF AMERICA CORP.

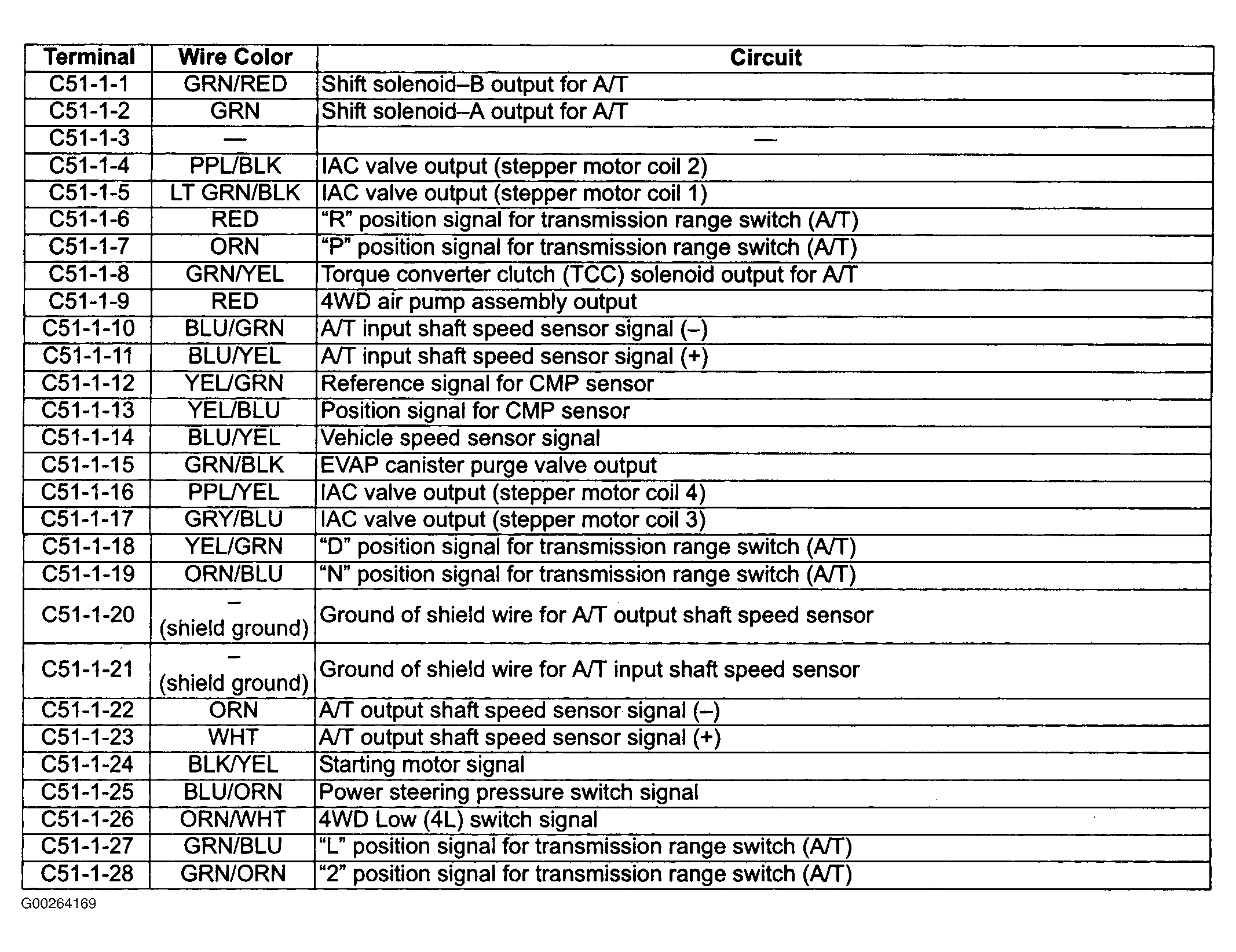

Fig 4: Identifying ECM Connector C51-1 Circuit Functions

Courtesy of SUZUKI OF AMERICA CORP.

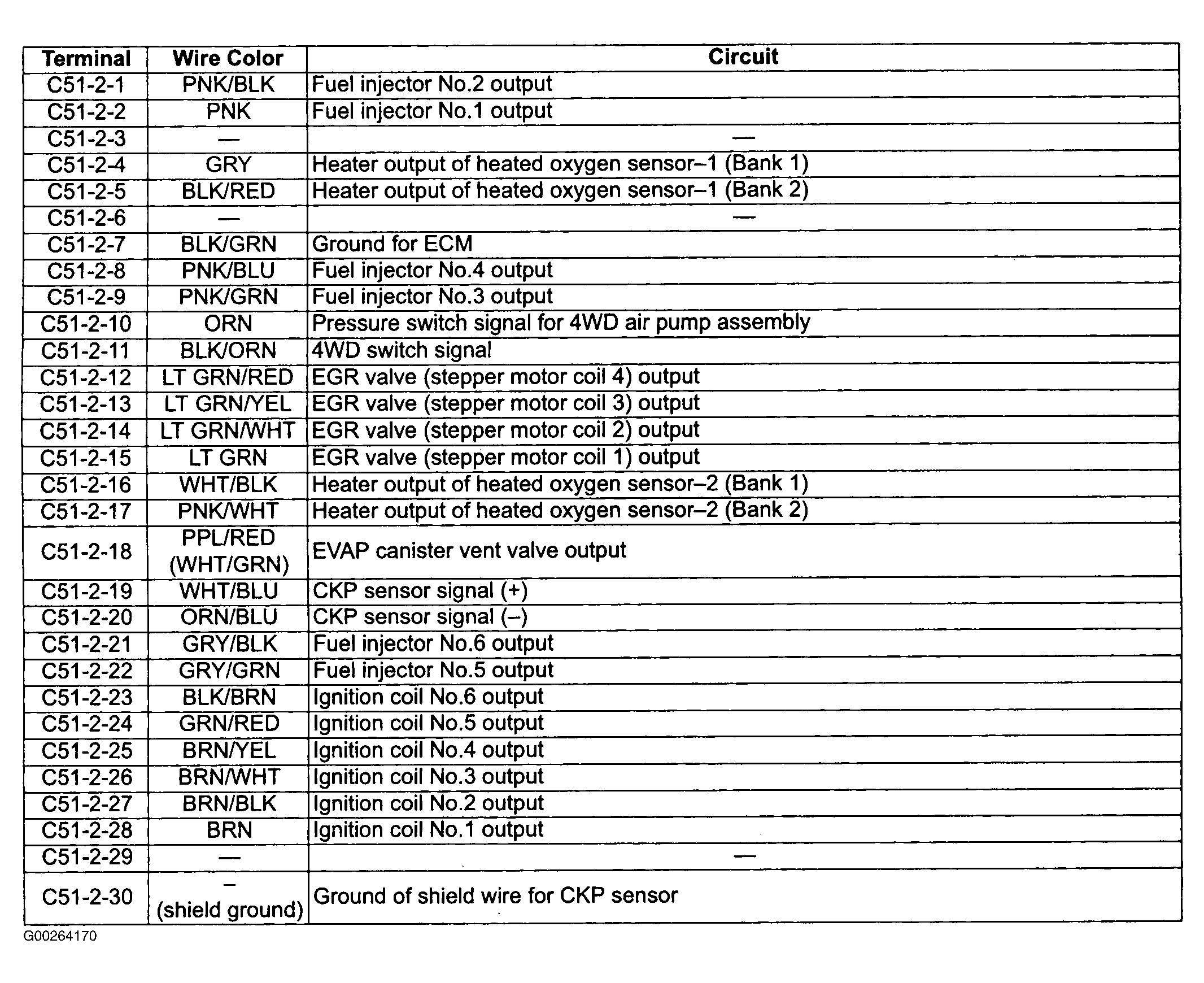

Fig 5: Identifying ECM Connector C51-2 Circuit Functions

Courtesy of SUZUKI OF AMERICA CORP.
