Enable Conditions

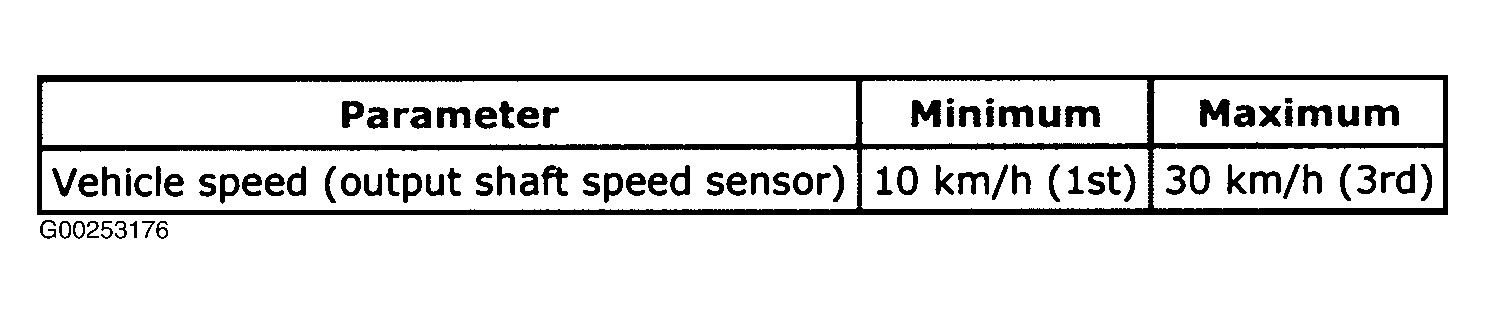

Fig 1: Transmission Range Switch Circuit Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

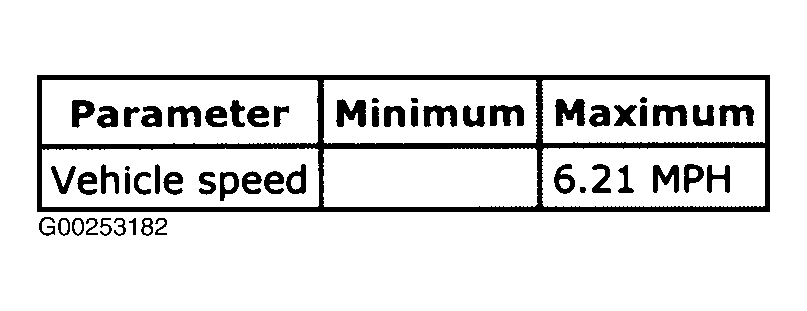

Fig 2: Transmission Range Switch Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

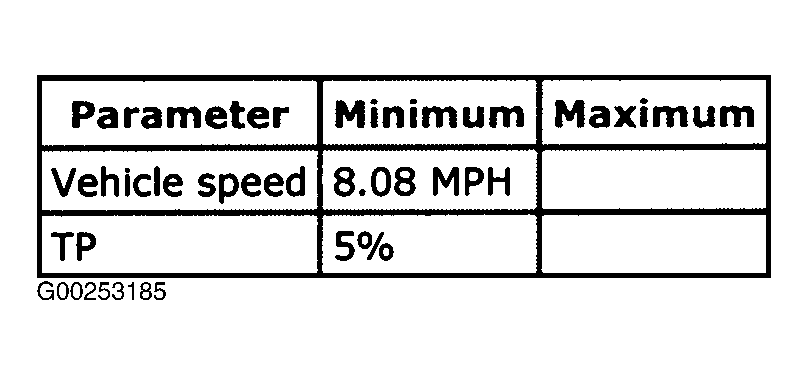

Fig 3: ISS Sensor Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

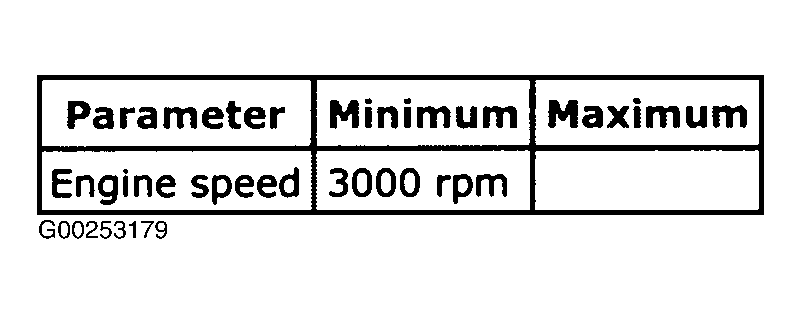

Fig 4: OSS Sensor Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

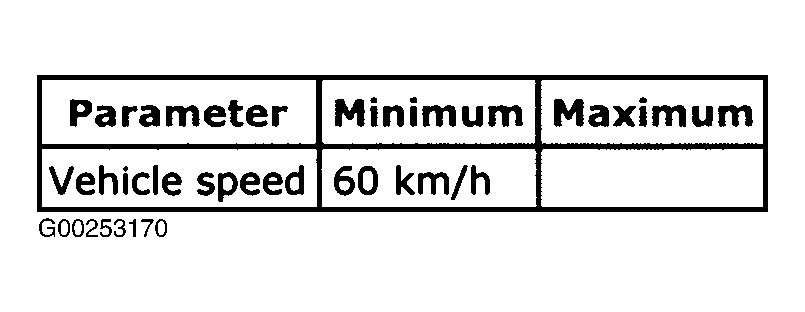

Fig 5: Cruise Control Signal Circuit Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

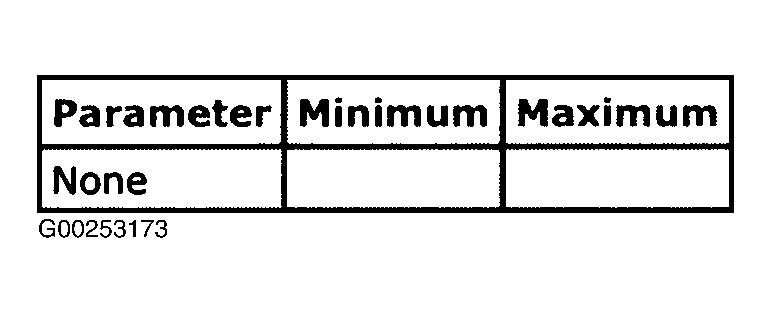

Fig 6: 4WD LOW Switch Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.
