Enable Conditions

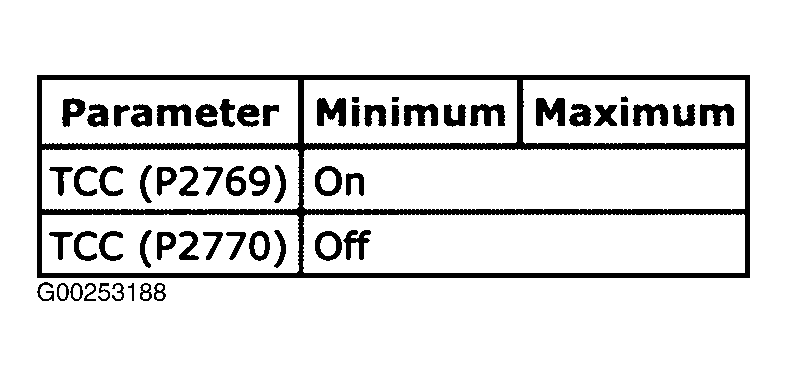

Fig 1: TCC Solenoid Circuit Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

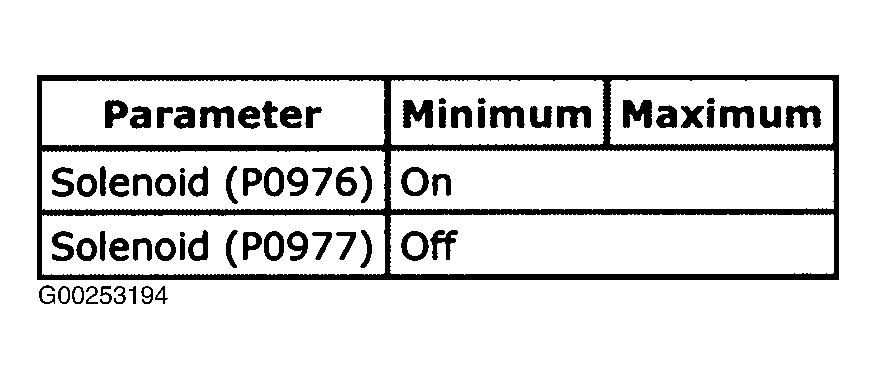

Fig 2: Shift Solenoid No. 1 Circuit Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Shift Solenoid No. 2 Circuit Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

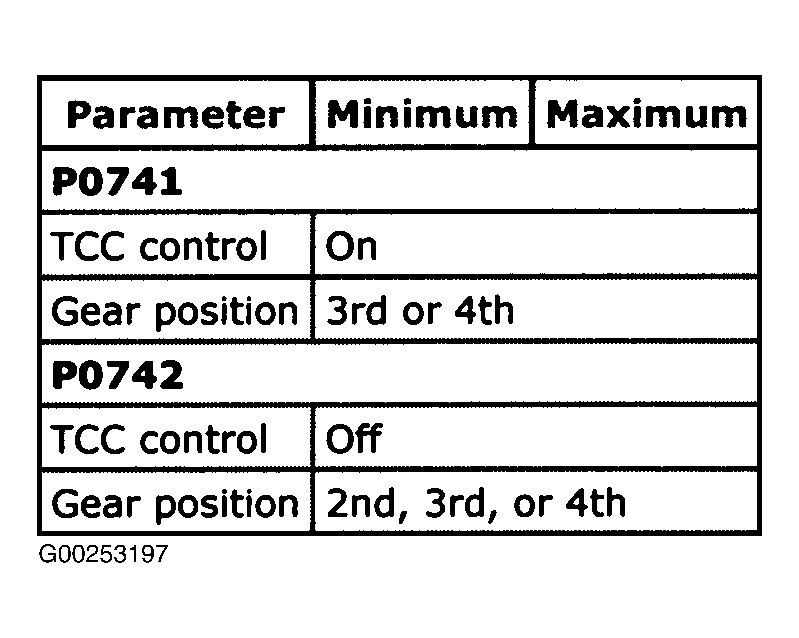

Fig 4: TCC Solenoid Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

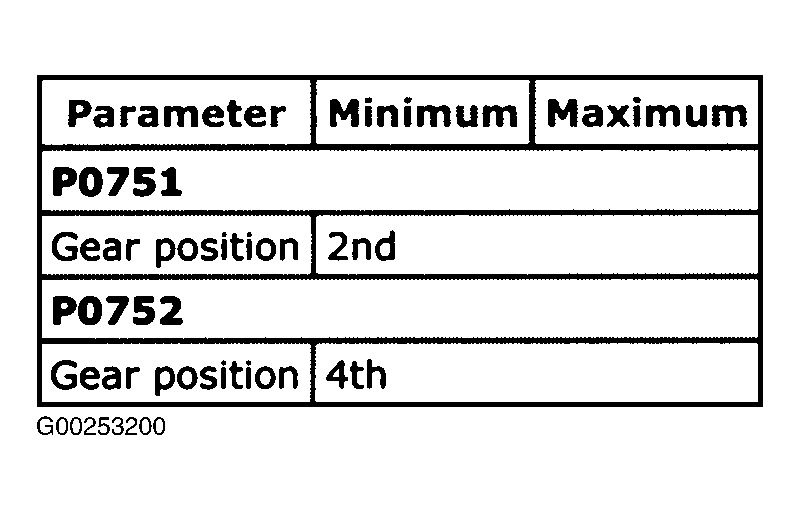

Fig 5: Shift Solenoid No. 1 Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: Shift Solenoid No. 2 Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.
