Enable Conditions

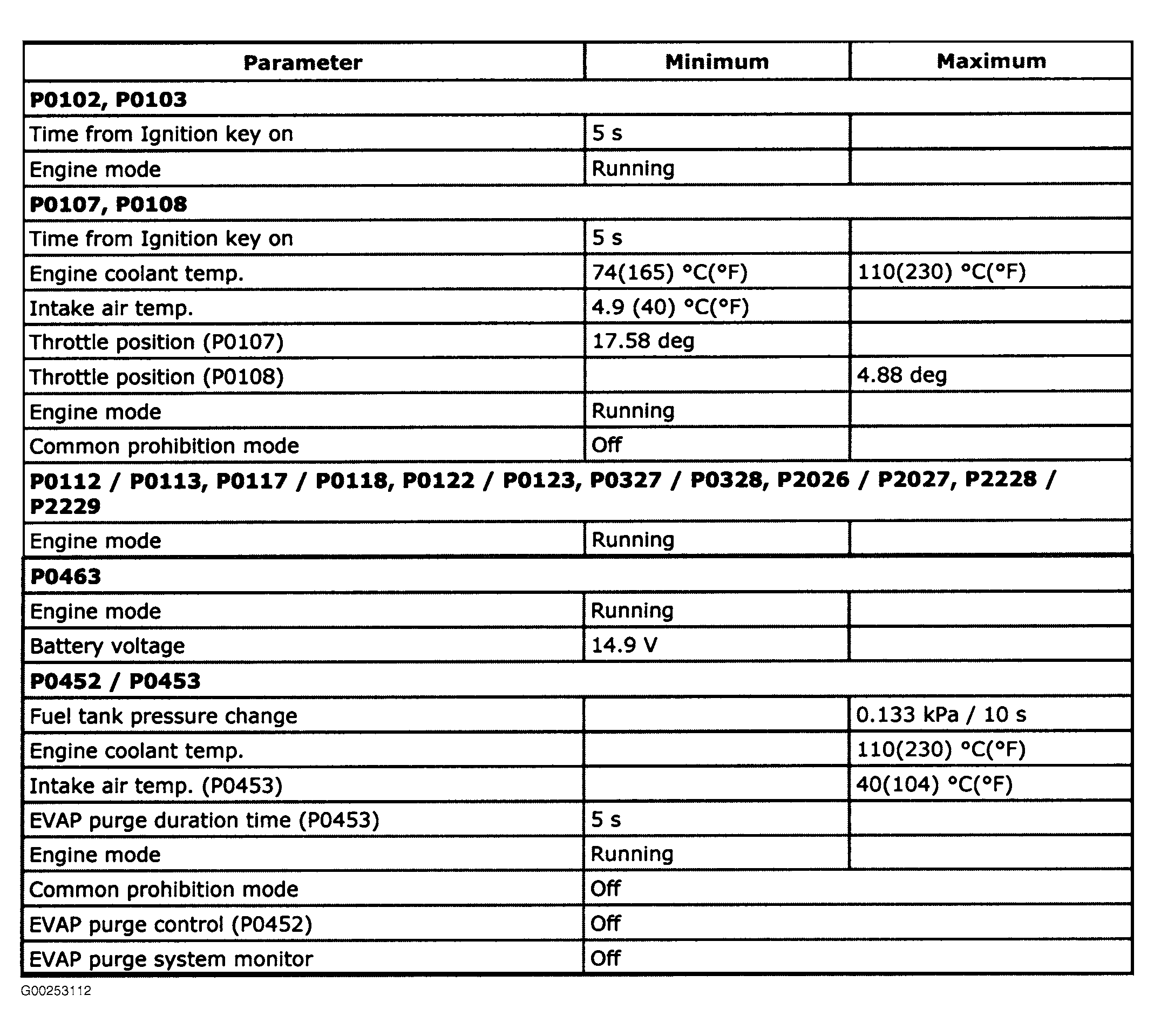

Fig 1: Sensor Circuit Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

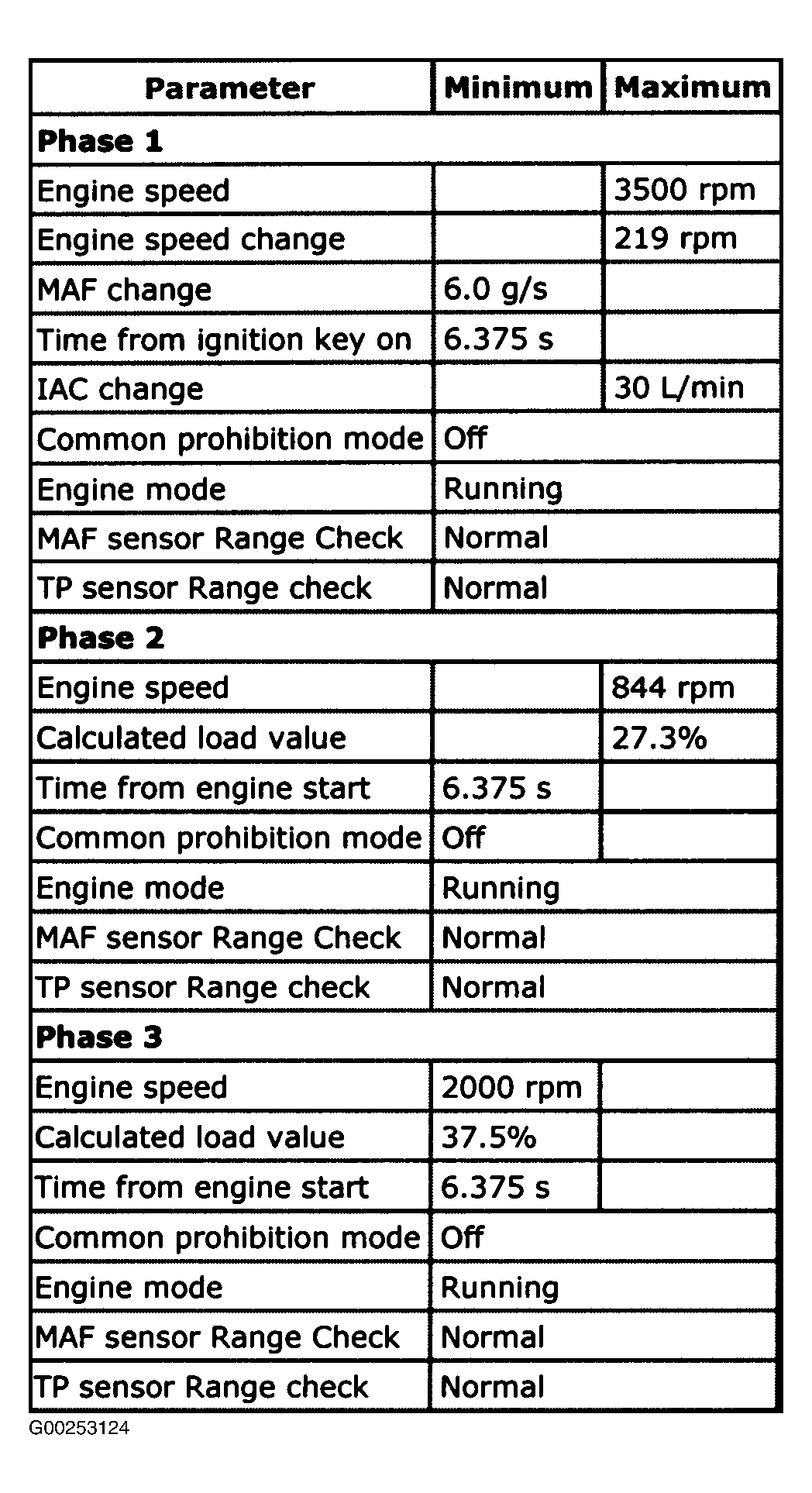

Fig 2: MAF Sensor Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: IAT Sensor Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

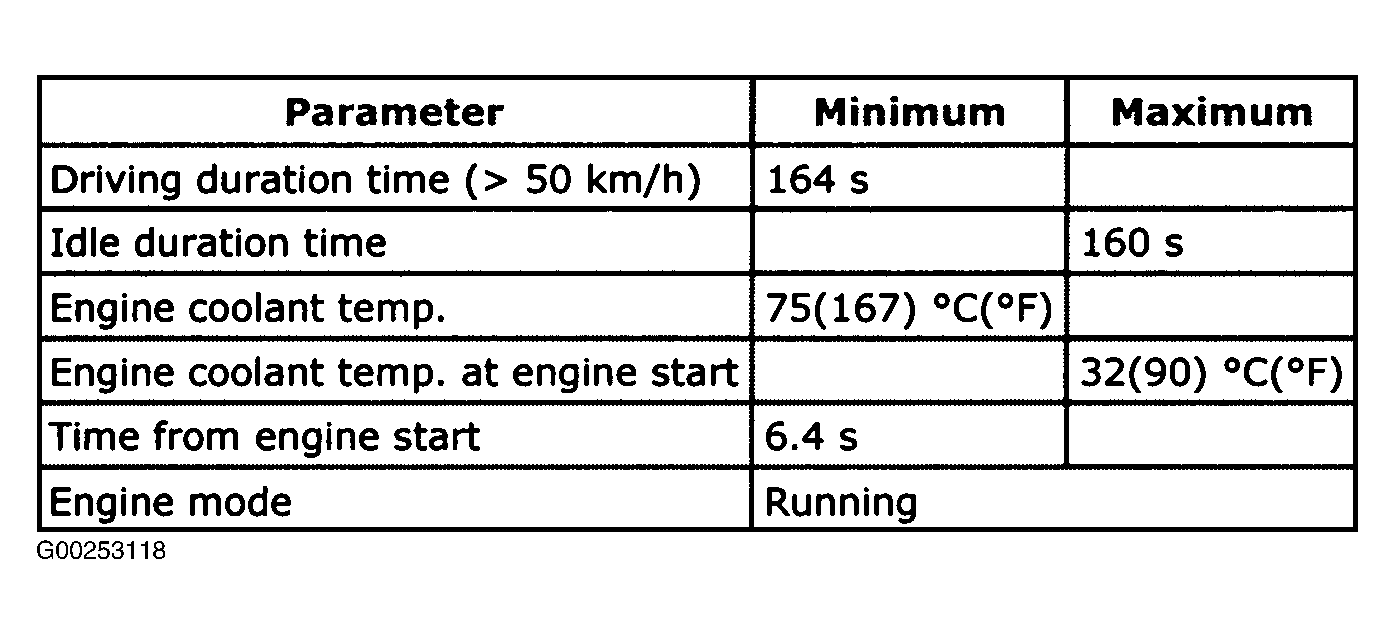

Fig 4: ECT Sensor Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

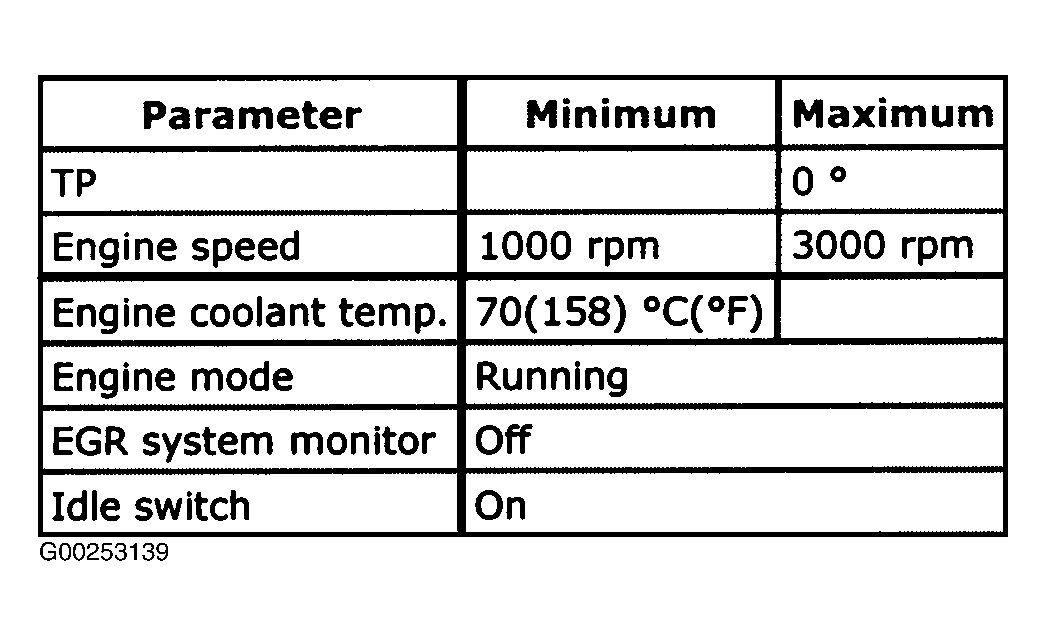

Fig 5: TP Sensor Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

Fig 6: EVAP Pressure Sensor Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

Fig 7: Fuel Level Sensor Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

Fig 8: VSS Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

Fig 9: Fuel Vapor Temperature Sensor Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

Fig 10: BARO Sensor Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

Fig 11: CKP Sensor Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

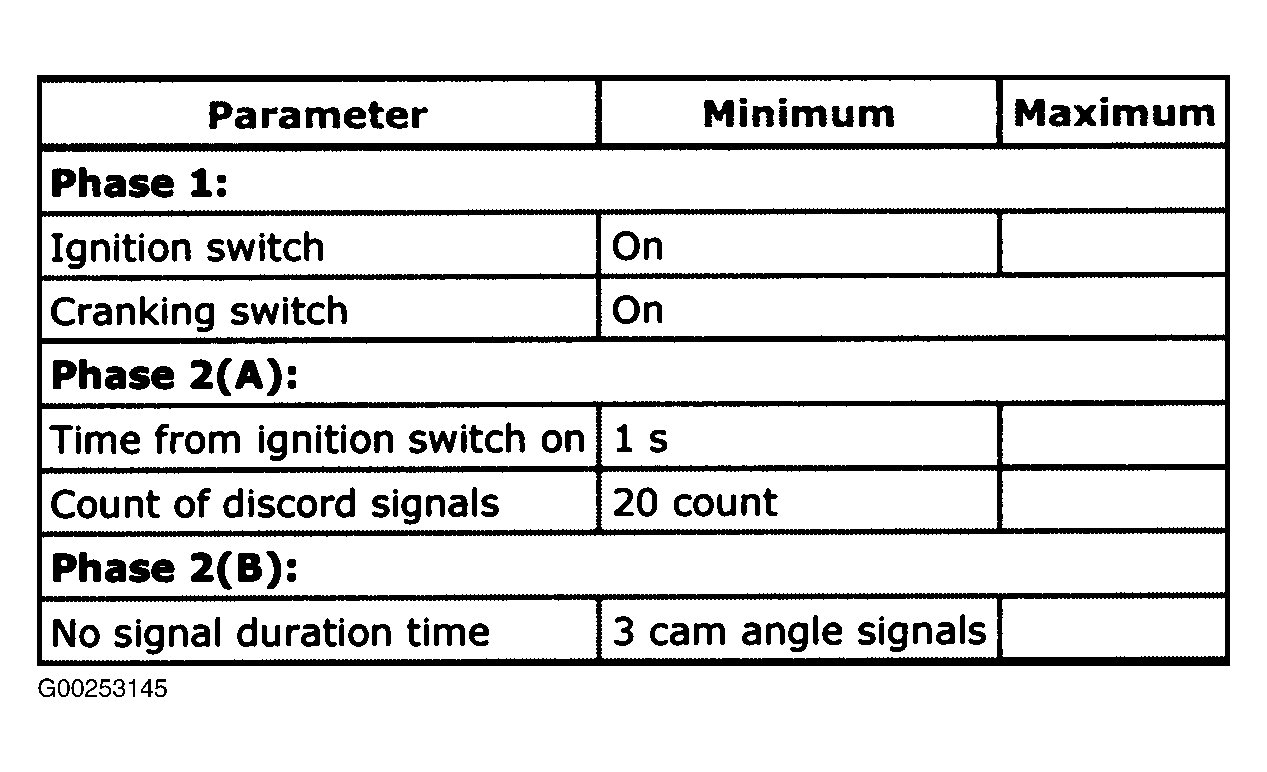

Fig 12: CMP Sensor Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

Fig 13: Starter Signal Circuit Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

Fig 14: Fuel Level Sensor Circuit Noise Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.
