System Description

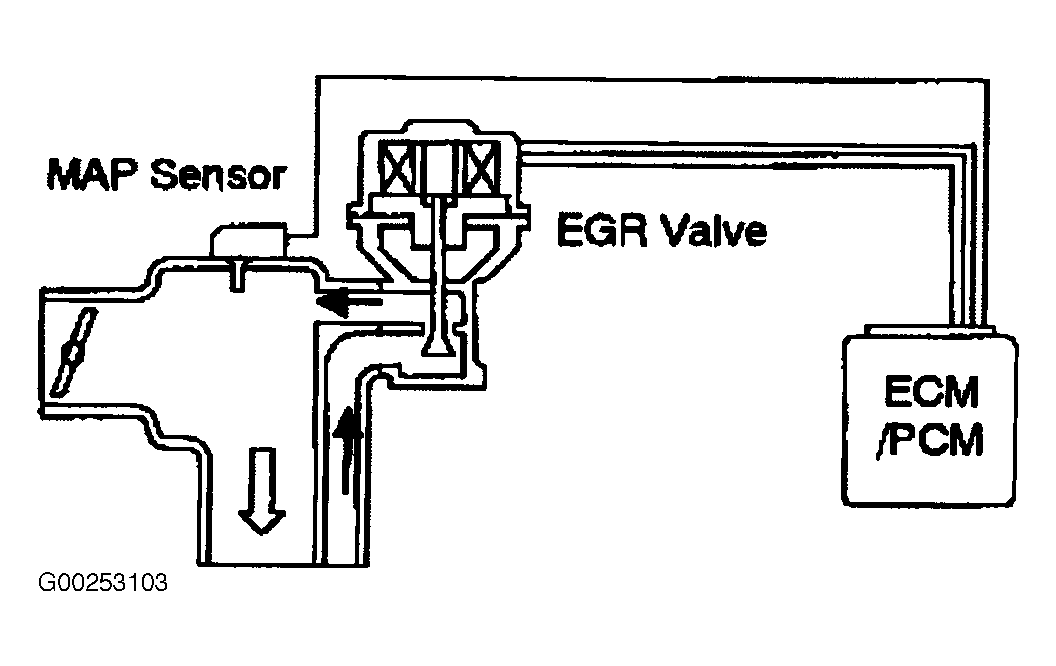

To monitor electric controlled EGR system, the system measures pressure change caused by switching of the EGR valve during deceleration condition and also measures the voltage of EGR valve stepper motor electrical circuit continuously. See Fig 1.
