Enable Conditions

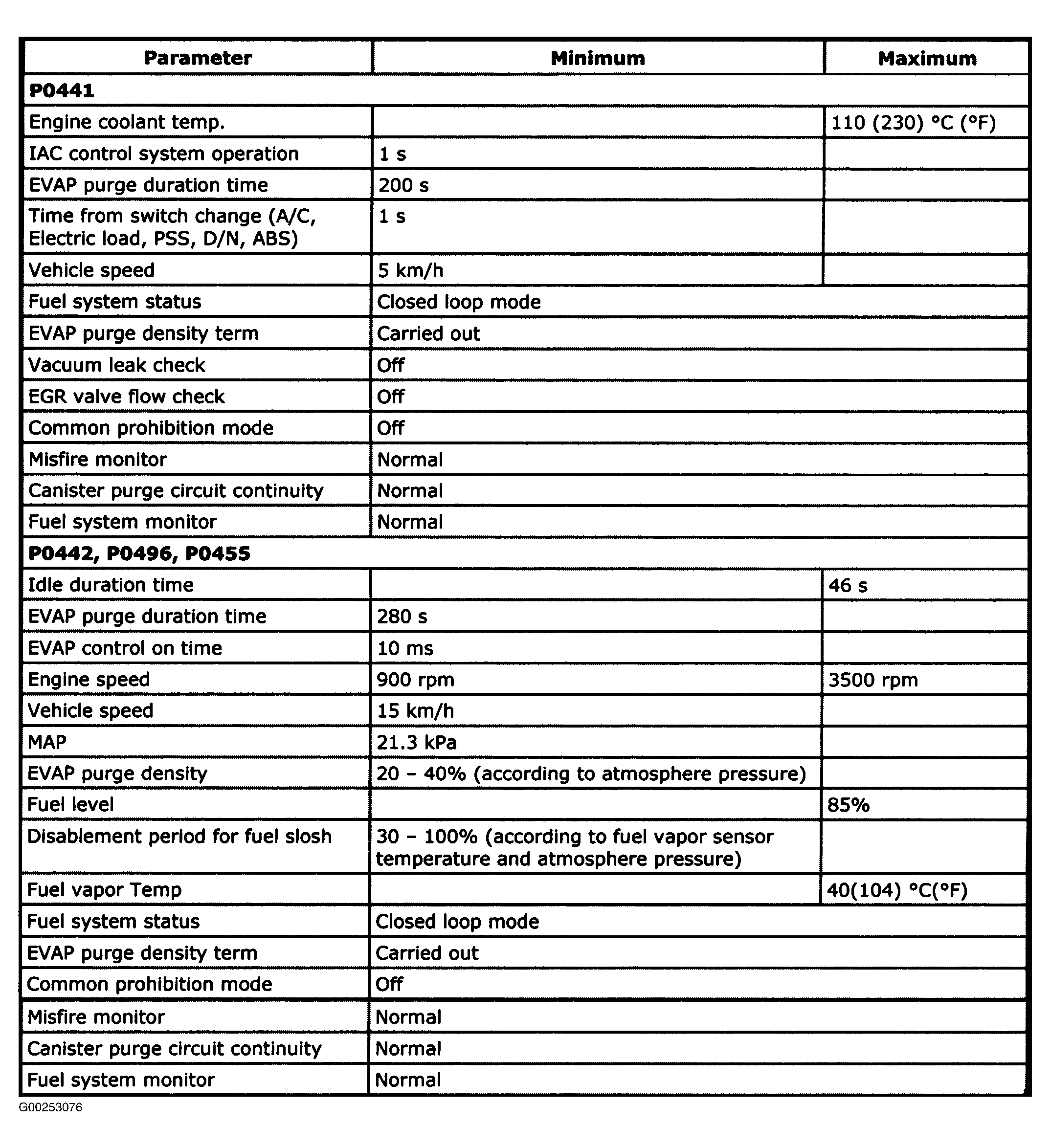

Fig 1: EVAP Control Monitor Enable Conditions (1 Of 2)
G00253076Courtesy of SUZUKI OF AMERICA CORP.

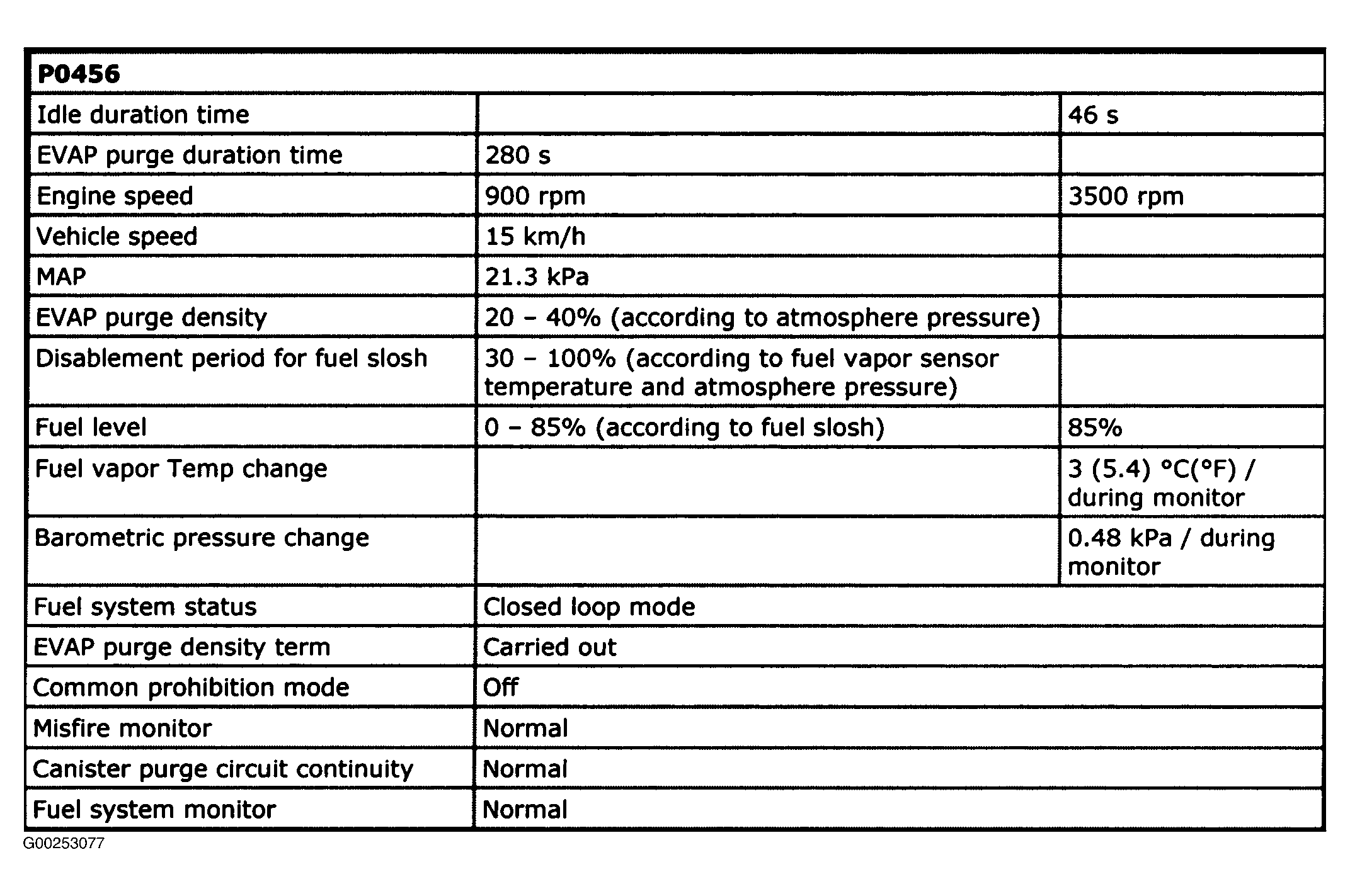

Fig 2: EVAP Control Monitor Enable Conditions (2 Of 2)
G00253077Courtesy of SUZUKI OF AMERICA CORP.
