EVAP Control System Monitor: Operation

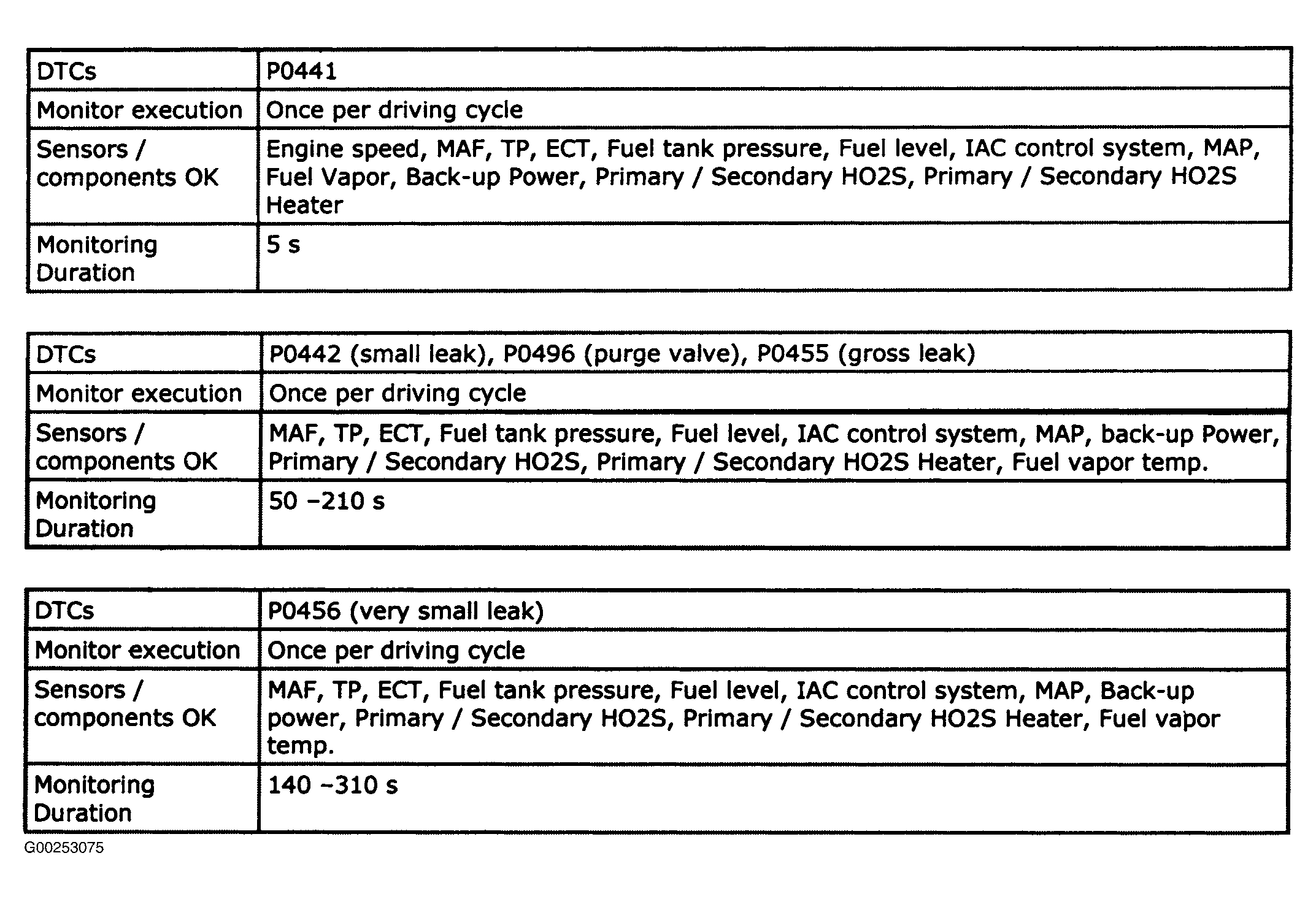

Fig 1: EVAP Control Monitor Operation
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
