Enable Conditions

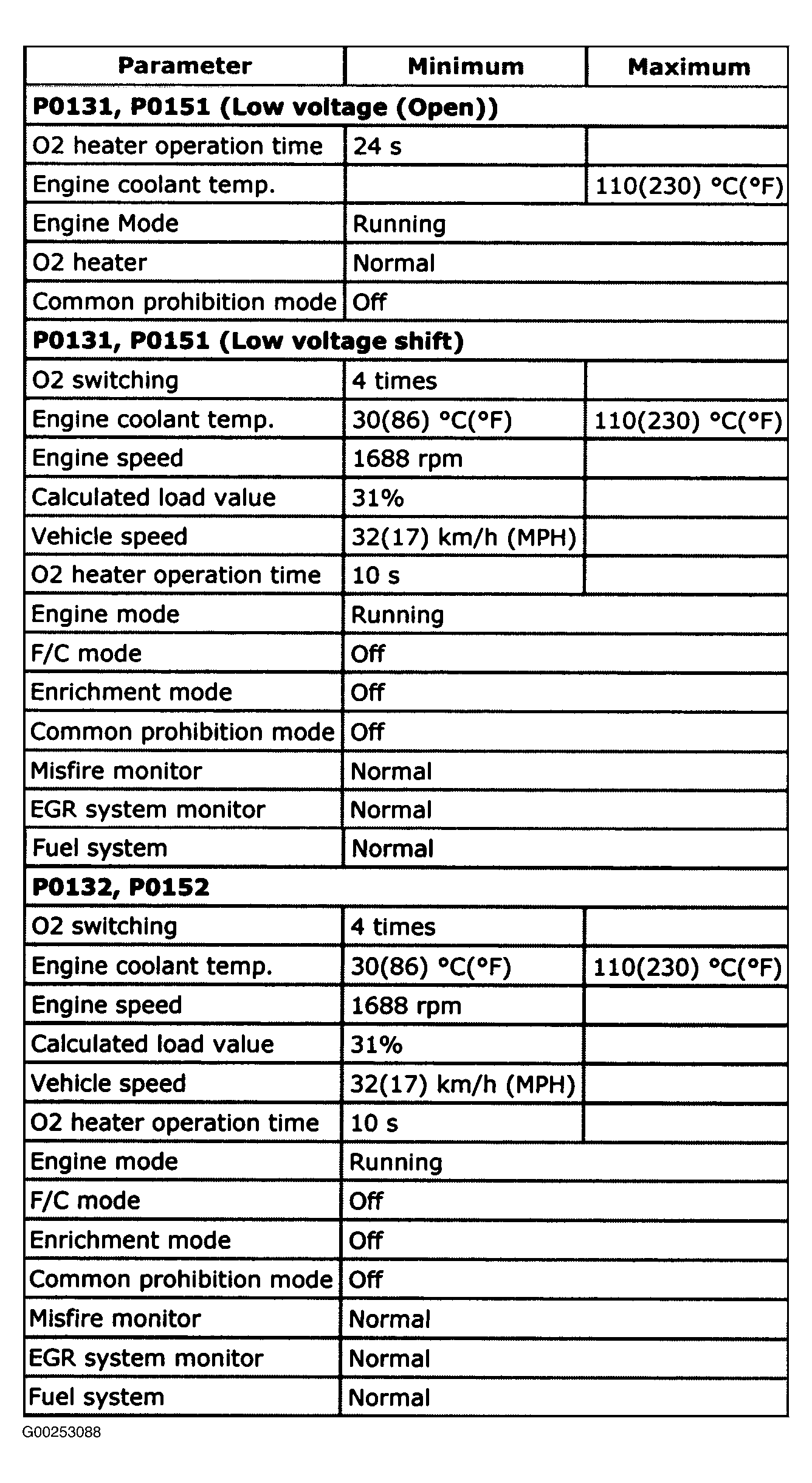

Fig 1: Primary HO2S Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

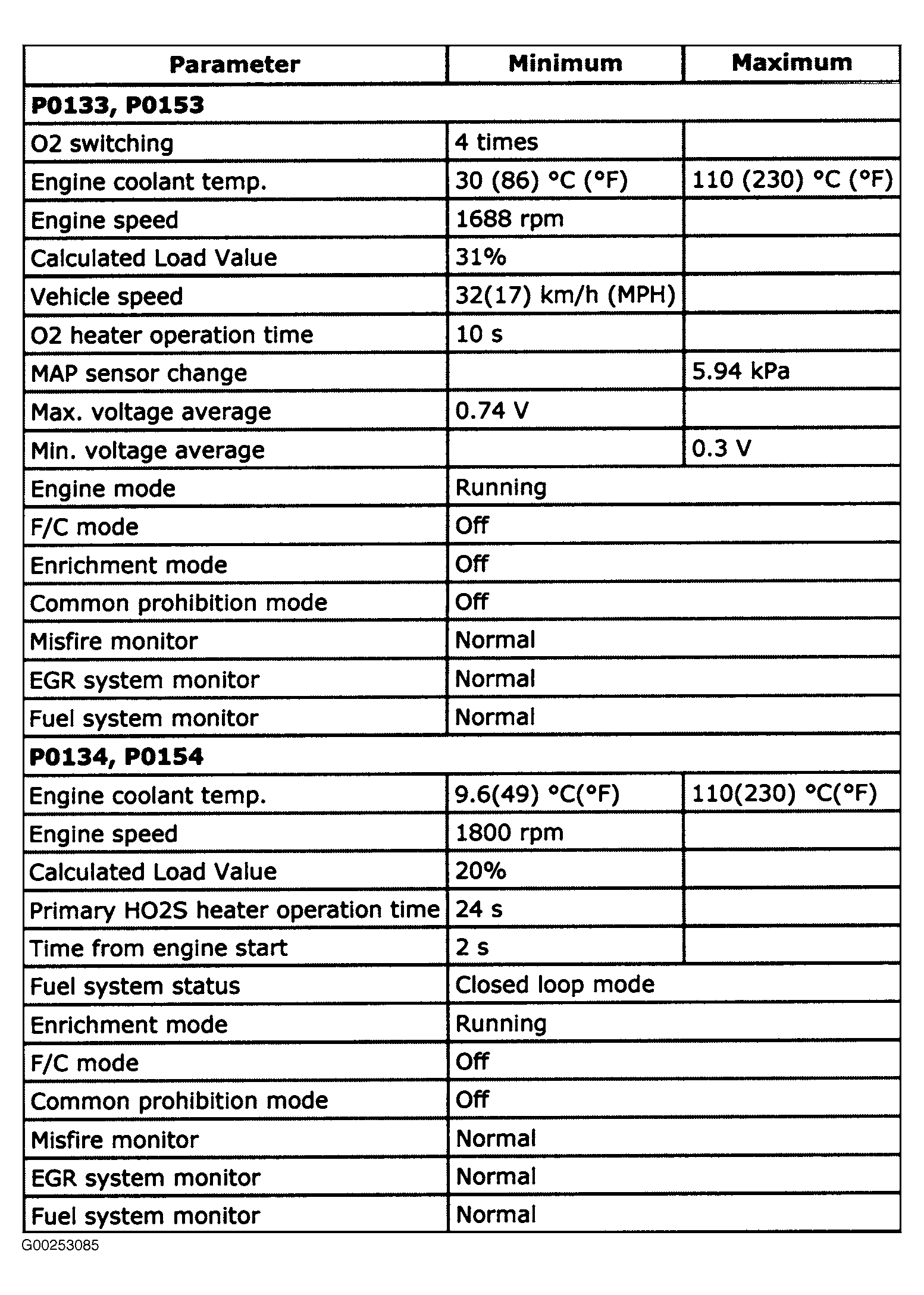

Fig 2: Primary HO2S Circuit Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

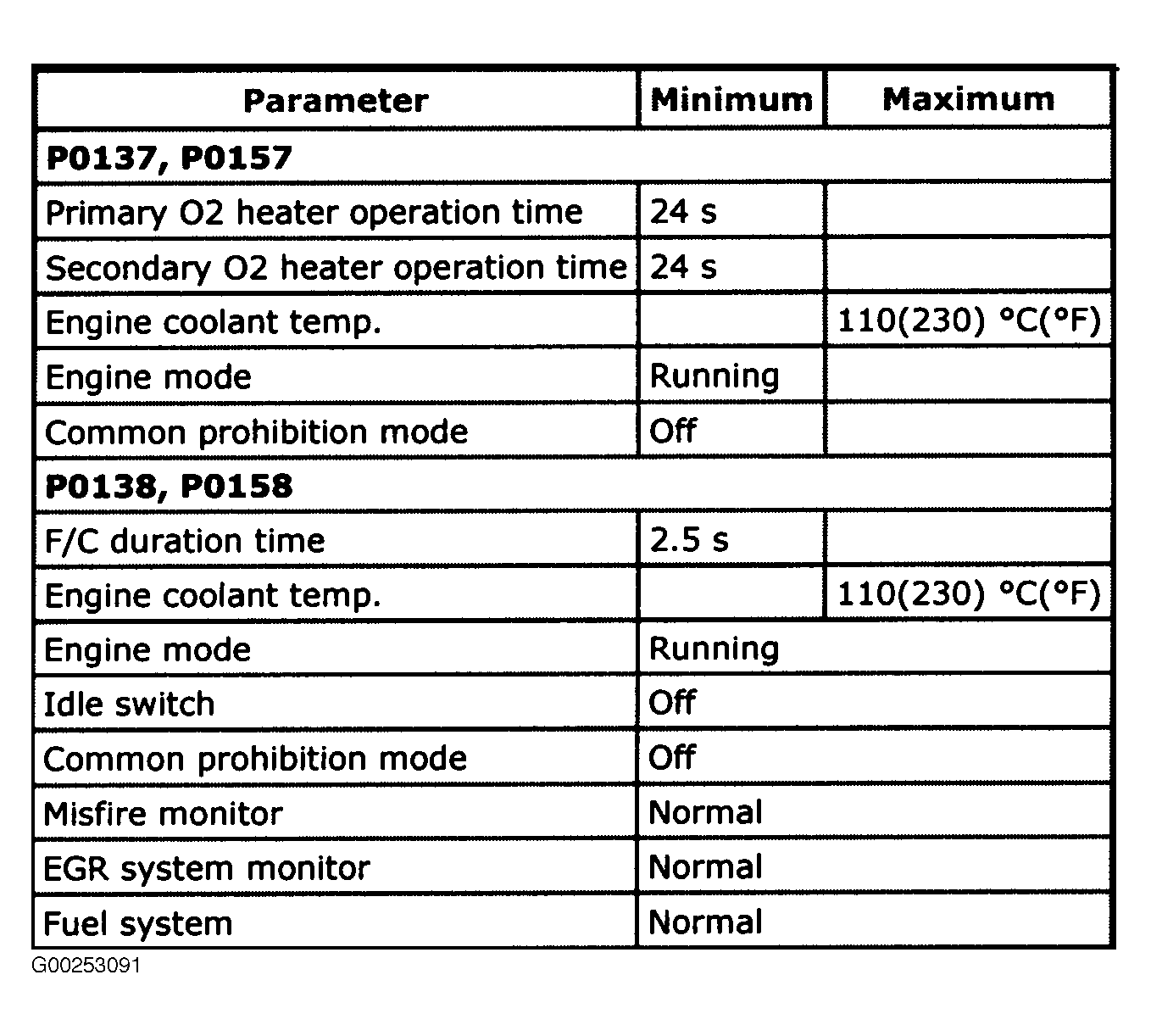

Fig 3: Secondary HO2S Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

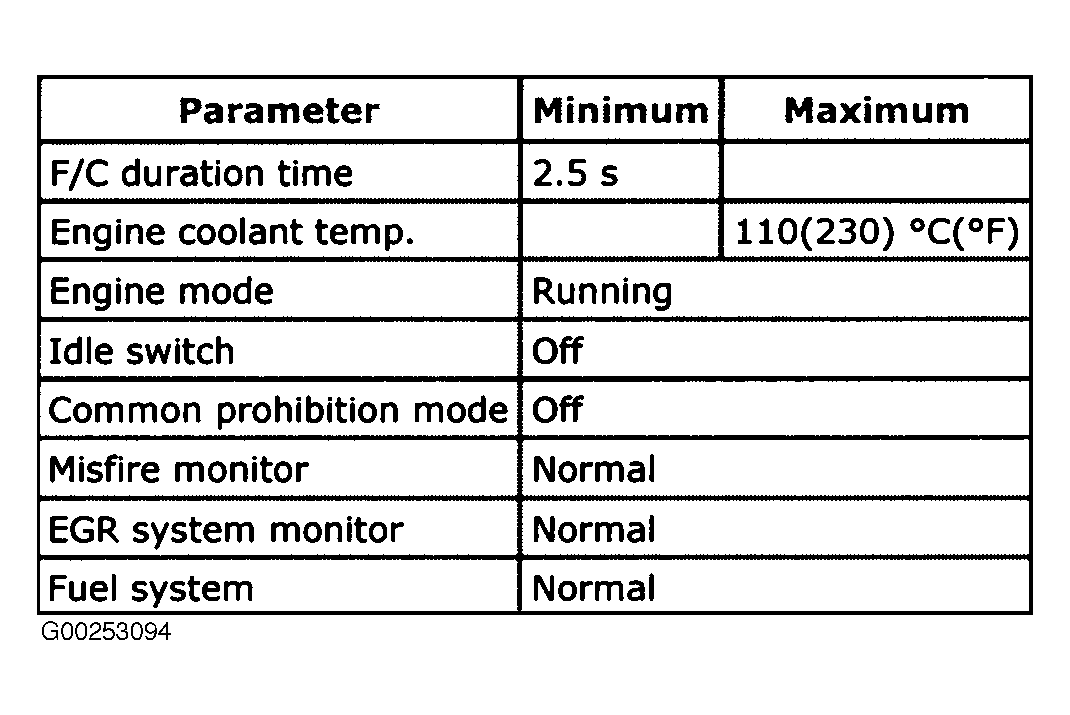

Fig 4: Secondary HO2S Circuit Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.
