Engine Control Module (ECM)/Powertrain Control Module (PCM) Removal and Installation: Removal

  1. Disconnect battery negative cable from battery.
  2. Disable air bag system (if equipped) referring to DISABLING & ACTIVATING AIR BAG SYSTEM .
  3. Remove ECM (PCM) cover (1) from bracket.

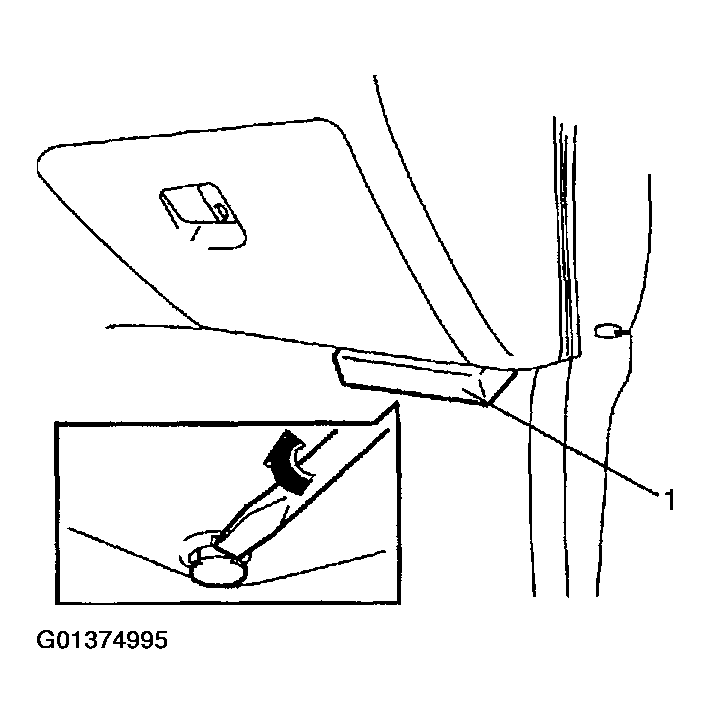

    Fig 1: Removing ECM (PCM) Cover
    G01374995Courtesy of SUZUKI OF AMERICA CORP.
  4. Disconnect connectors from ECM (PCM) (1).
  5. Remove ECM (PCM) (1) with bracket (2).

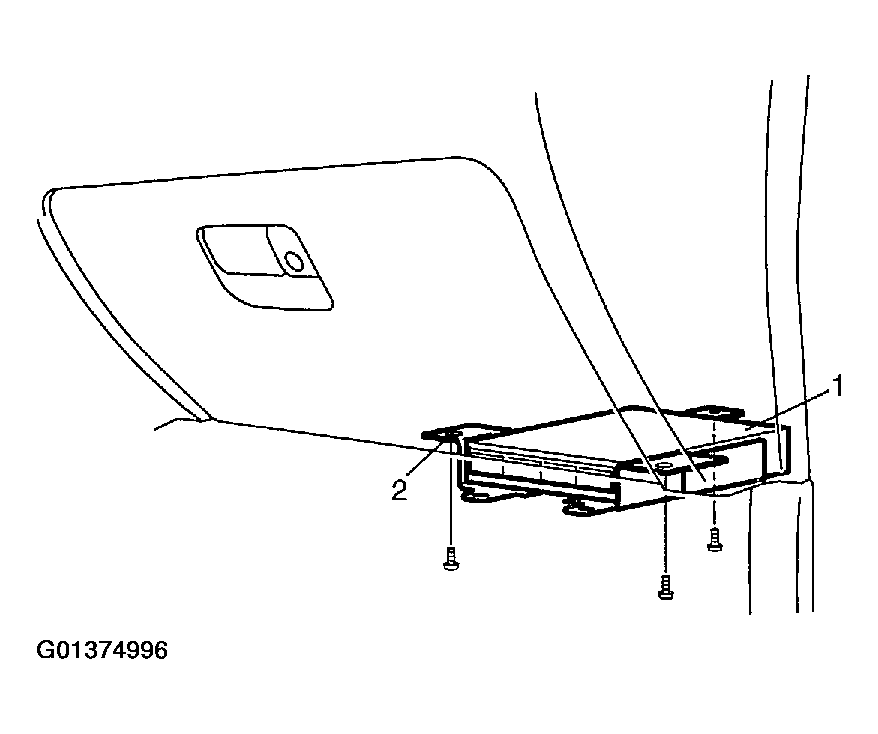

    Fig 2: Removing ECM (PCM)
    G01374996Courtesy of SUZUKI OF AMERICA CORP.
