Intake Air Temperature (IAT) Sensor Inspection

Immerse temperature sensing part of IAT sensor in water (or ice) and measure resistance between sensor terminals while heating water gradually.

If measured resistance doesn't show such characteristic as shown in the figure, replace IAT sensor.

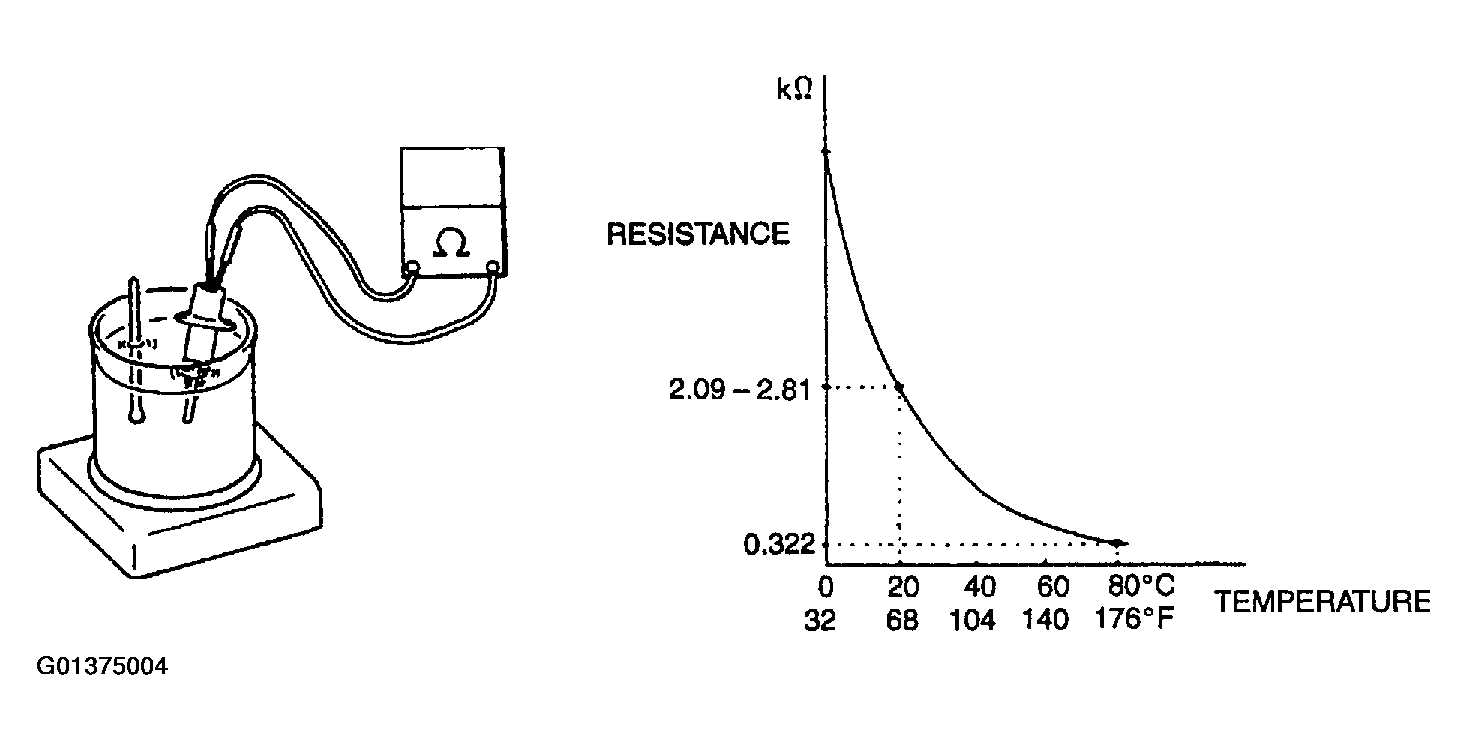

Fig 1: Checking IAT Sensor
G01375004Courtesy of SUZUKI OF AMERICA CORP.
