Main Relay Inspection

Disconnect negative cable at battery.

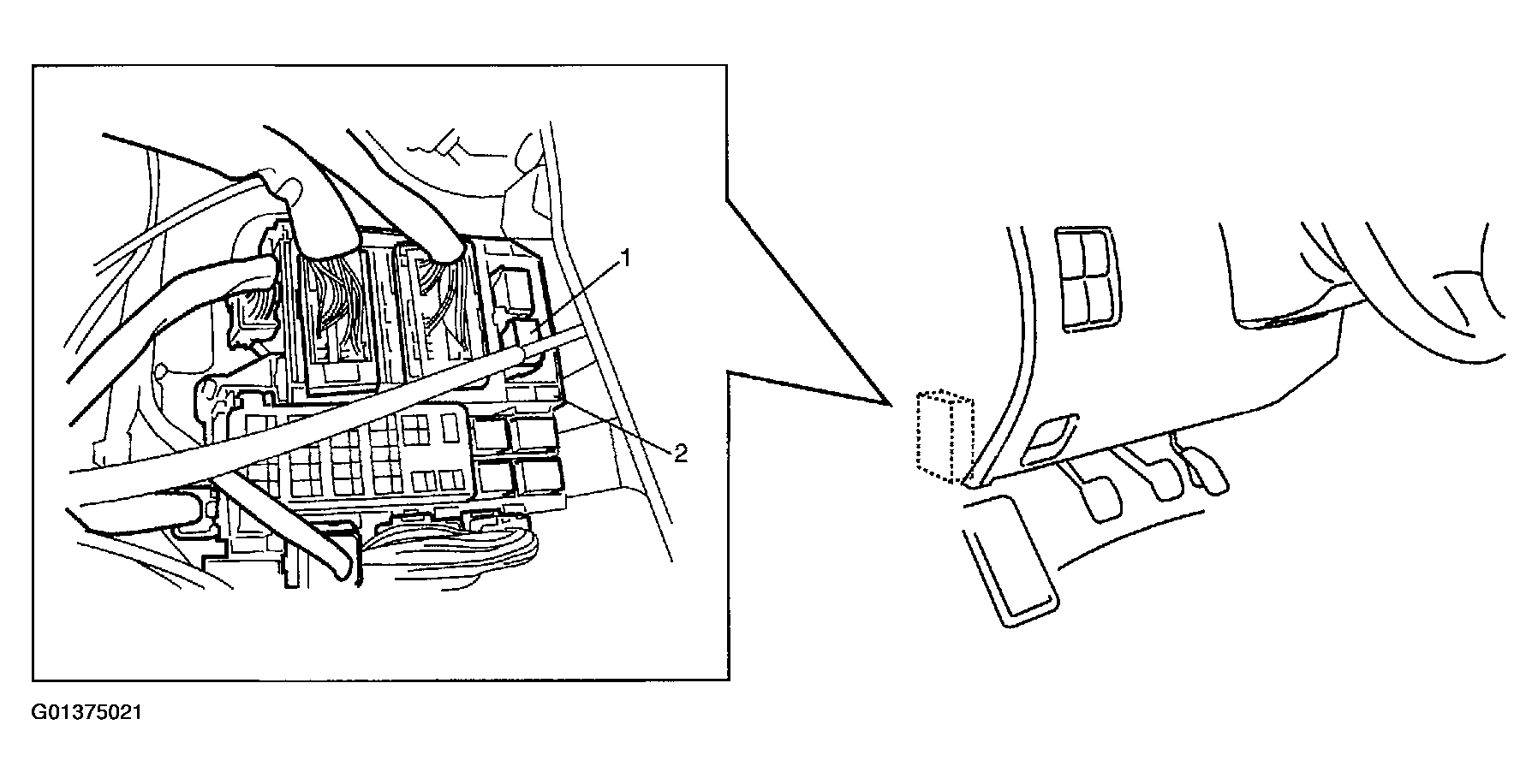

Remove main relay (1) from relay box (2).

Fig 1: Removing Main Relay
Courtesy of SUZUKI OF AMERICA CORP.

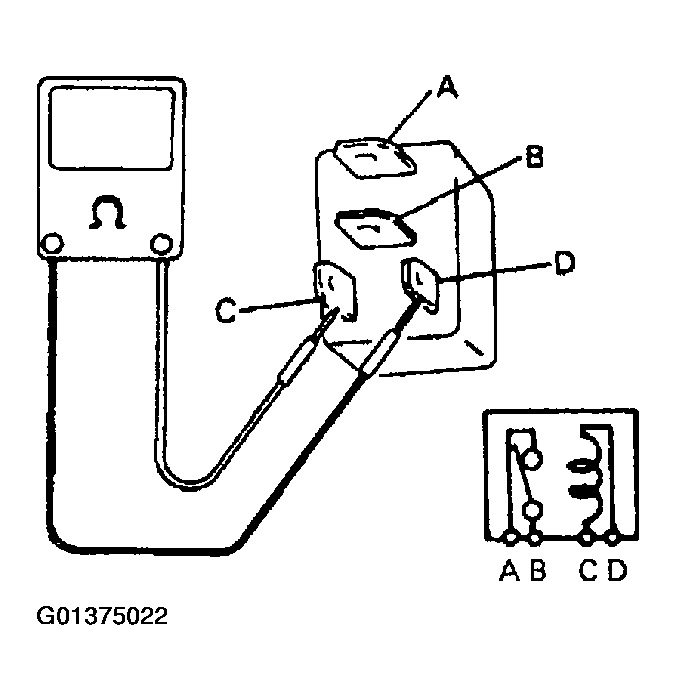

Check resistance between each two terminals as in table below.
If check results are as specified, proceed to next operation check. If not, replace.

Main relay resistance
1. Between "A" and "B": Infinity
2. Between "C" and "D": 79 - 95 ohm at 20 °C (68 °F)
Fig 2: Checking Resistance Between Relay Terminals (Power Not Applied)
Courtesy of SUZUKI OF AMERICA CORP.

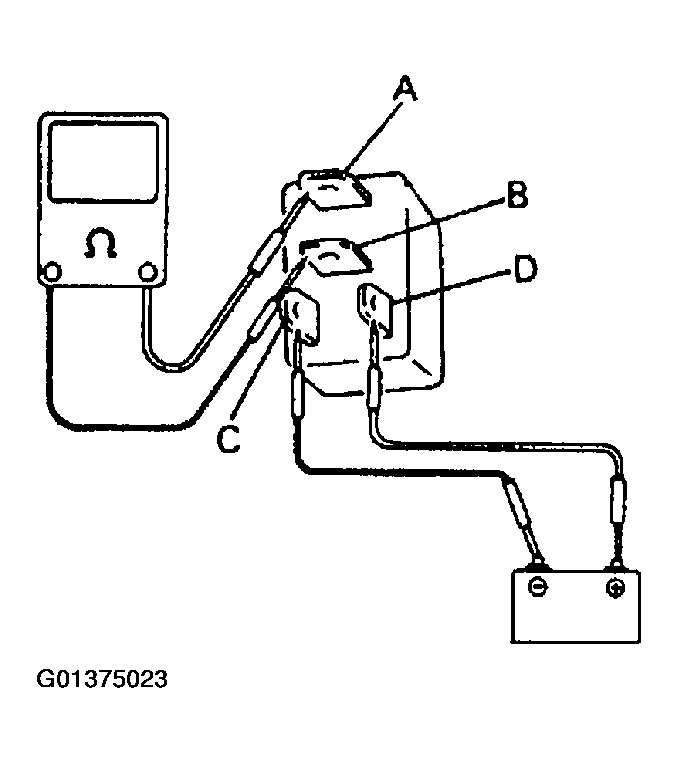

Check that there is continuity between terminals "A" and "B" when battery is connected to terminals "C" and "D". If malfunction is found, replace.

Fig 3: Checking Resistance Between Relay Terminals (Power Applied)
Courtesy of SUZUKI OF AMERICA CORP.
