Ignition System Components Location

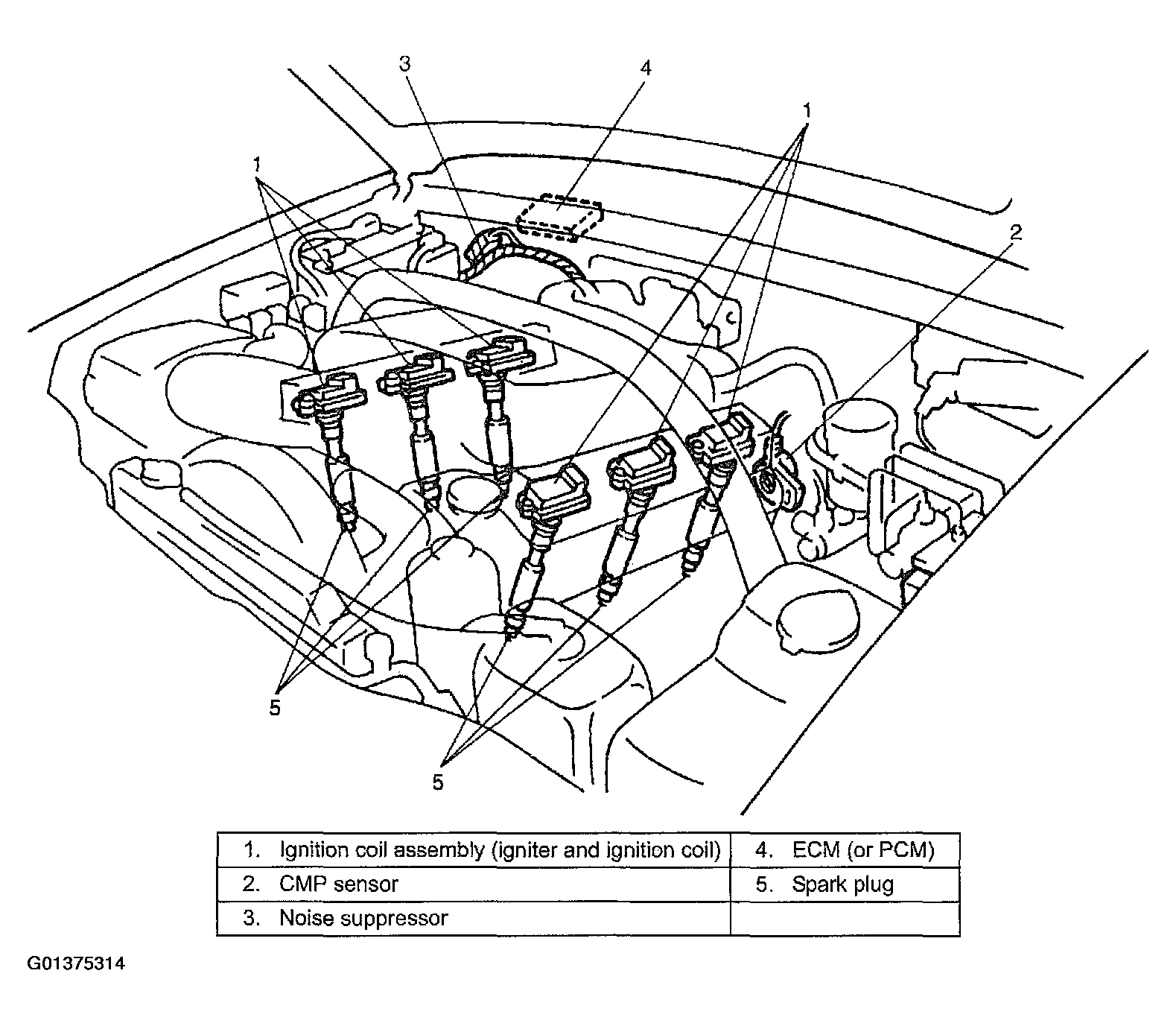

Fig 1: Locating Ignition System Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
