Engine Control Module

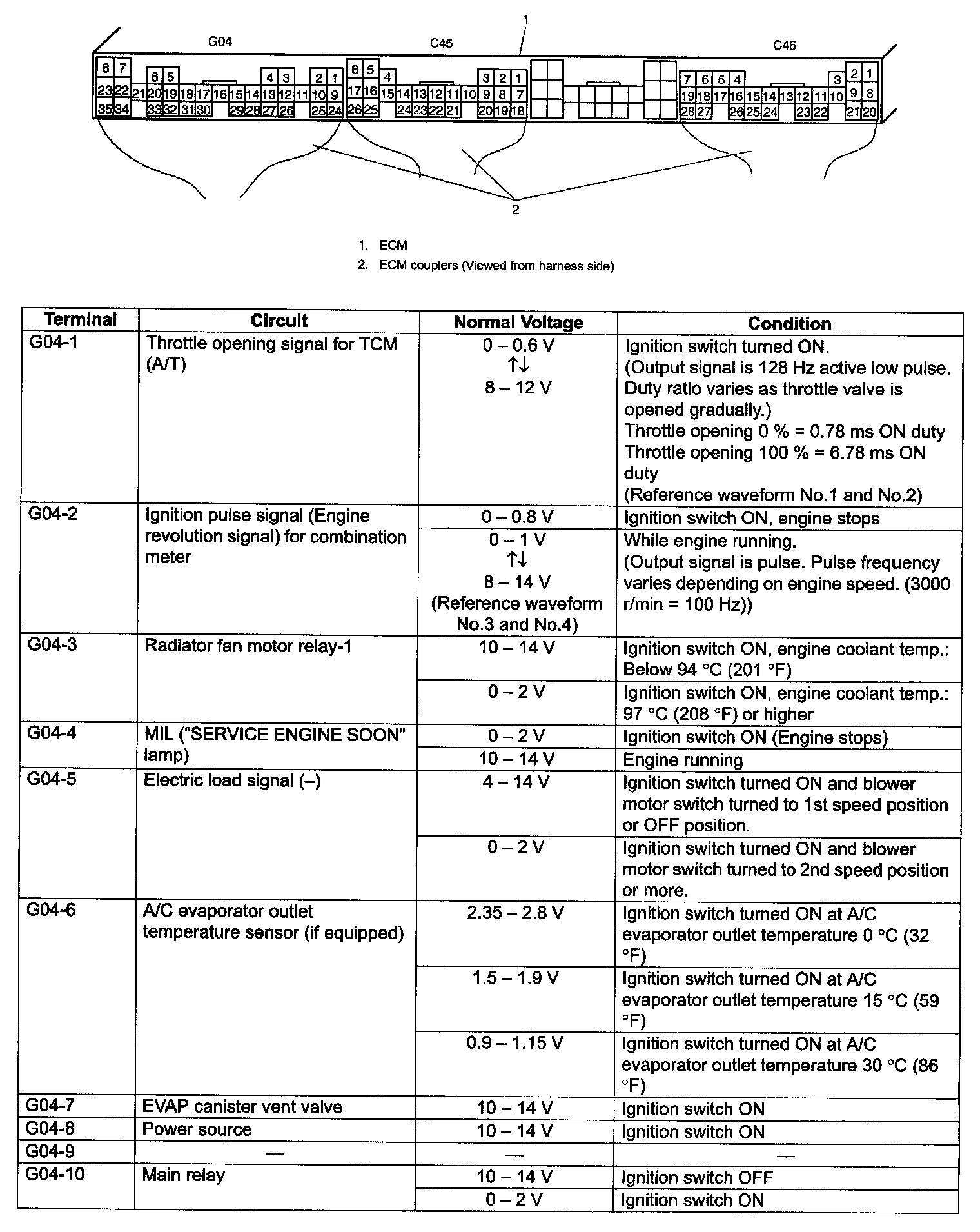

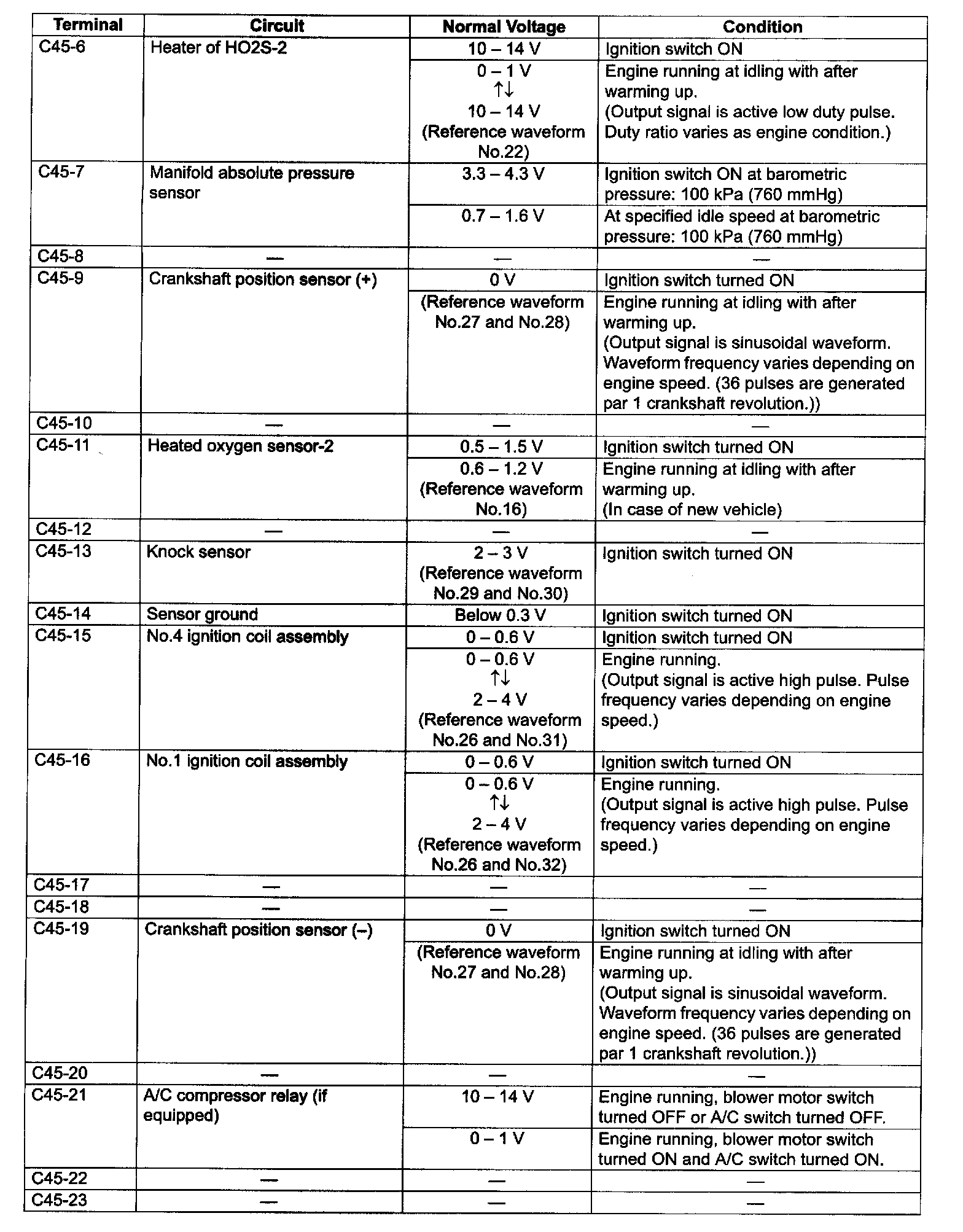

G04, C45, C46 Pinouts Part 1:






G04, C45, C46 Pinouts Part 2:





G04, C45, C46 Pinouts Part 3:





G04, C45, C46 Pinouts Part 4:





G04, C45, C46 Pinouts Part 5:





G04, C45, C46 Pinouts Part 6:





G04, C45, C46 Pinouts Part 7:
