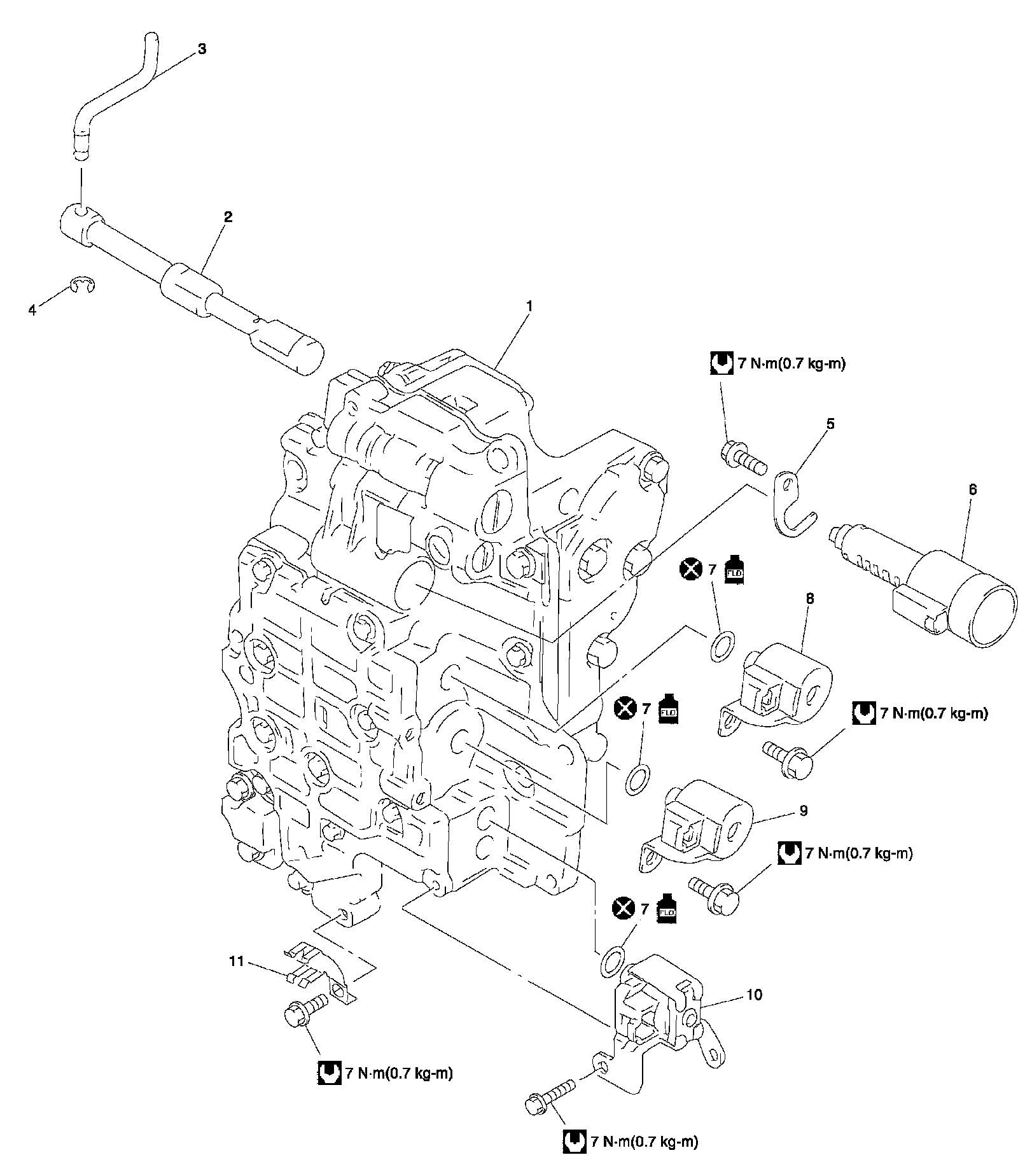

Valve Body Assembly Components

Part 1 Of 2:

Part 2 Of 2:

Valve Body Assembly Components

CAUTION: When replacing pressure control solenoid valve, it is strictly required to replace it together with valve body assembly as a set.
