Compressor Clutch

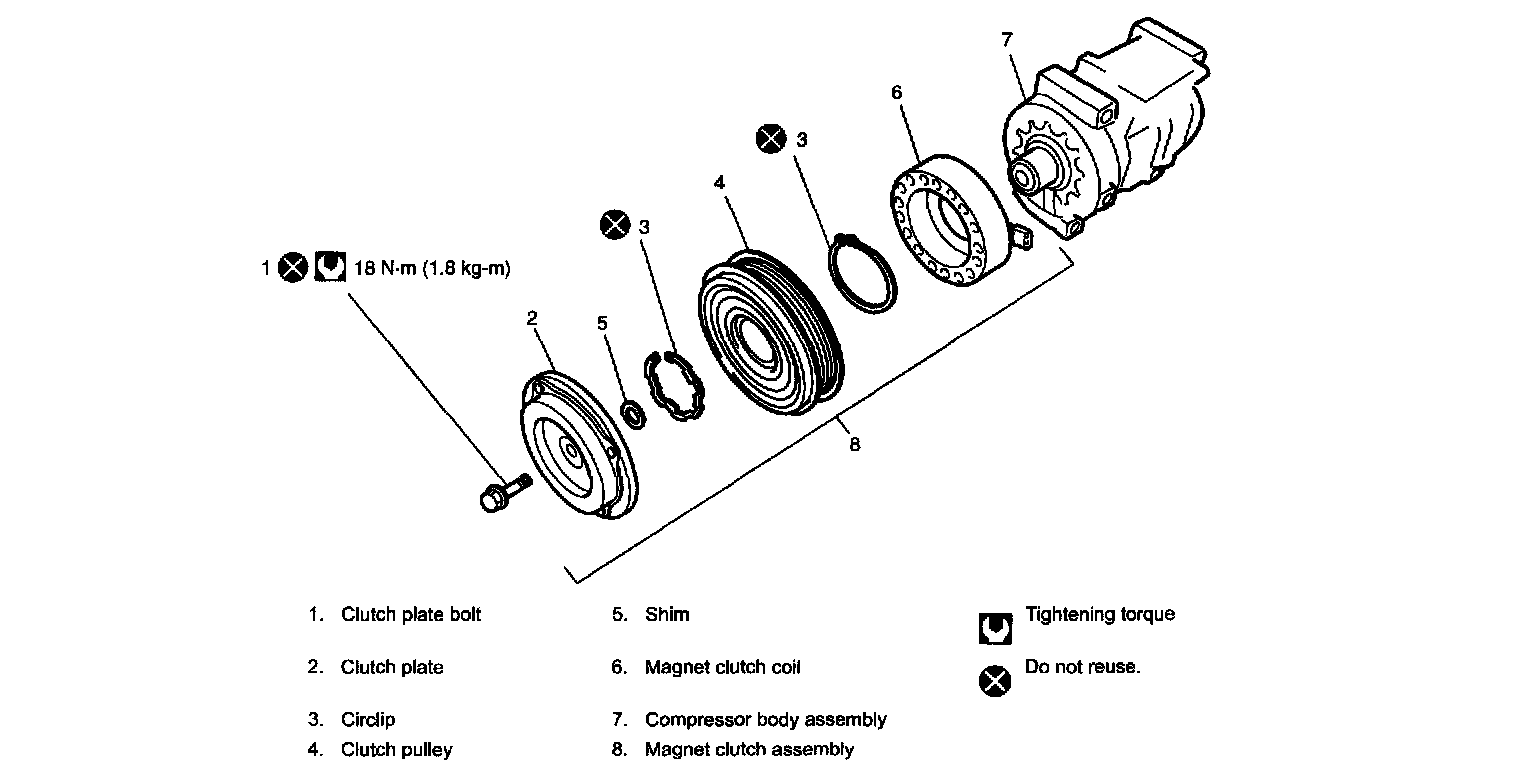

Magnet Clutch Components:






CAUTION: Never disassemble compressor body assembly. Performing any of these prohibited services will affect original performance of A/C system.
