Air Flow Meter/Sensor: Service and Repair

Mass Air Flow (MAF) and Intake Air Temperature (IAT) Sensor Removal and Installation

Reference: Mass Air Flow (MAF) and Intake Air Temperature (IAT) Sensor On-Vehicle Inspection

Removal
1.Disconnect negative battery cable at battery.

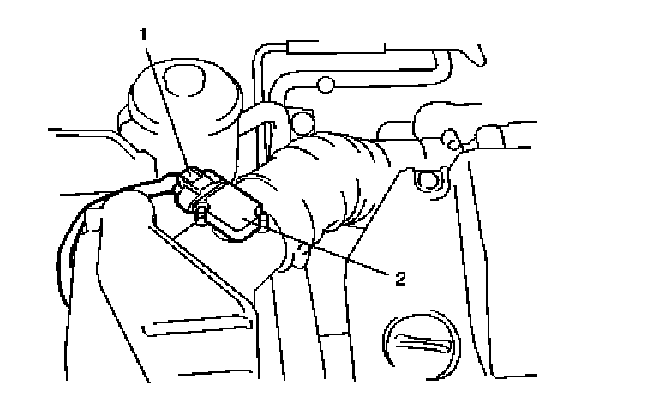

2.Disconnect coupler (1) from MAF and IAT sensor (2).




3.Remove MAF and IAT sensor (2) from air cleaner assembly.

Installation
Reference: Mass Air Flow (MAF) and Intake Air Temperature (IAT) Sensor Inspection
Reverse removal procedure noting the following:
- Connect coupler to MAF and IAT sensor securely until a click is heard.
