Electric Load Sensor: Testing and Inspection
Electric Load Signal Circuit Check

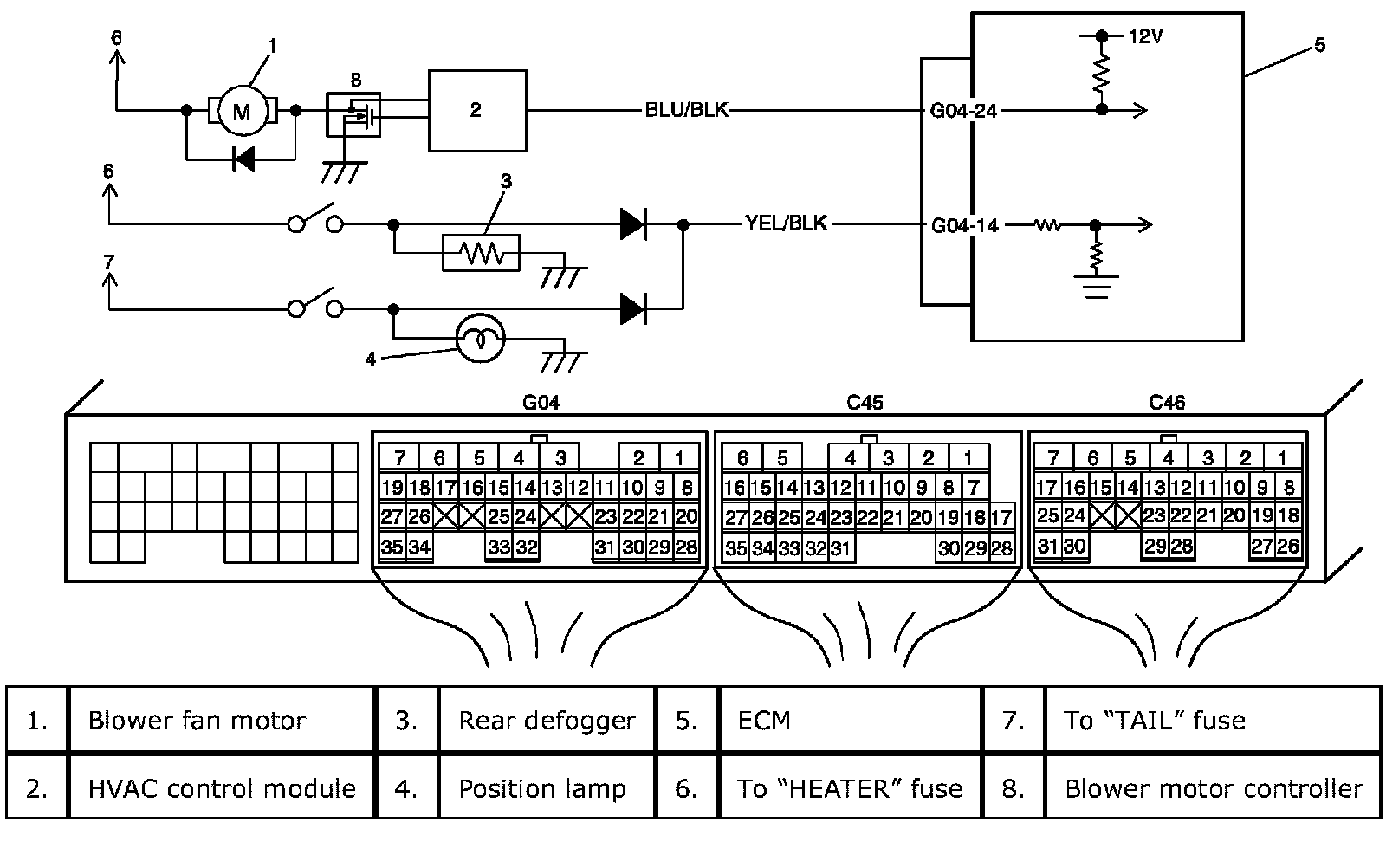

Wiring Diagram:
Wiring Diagram

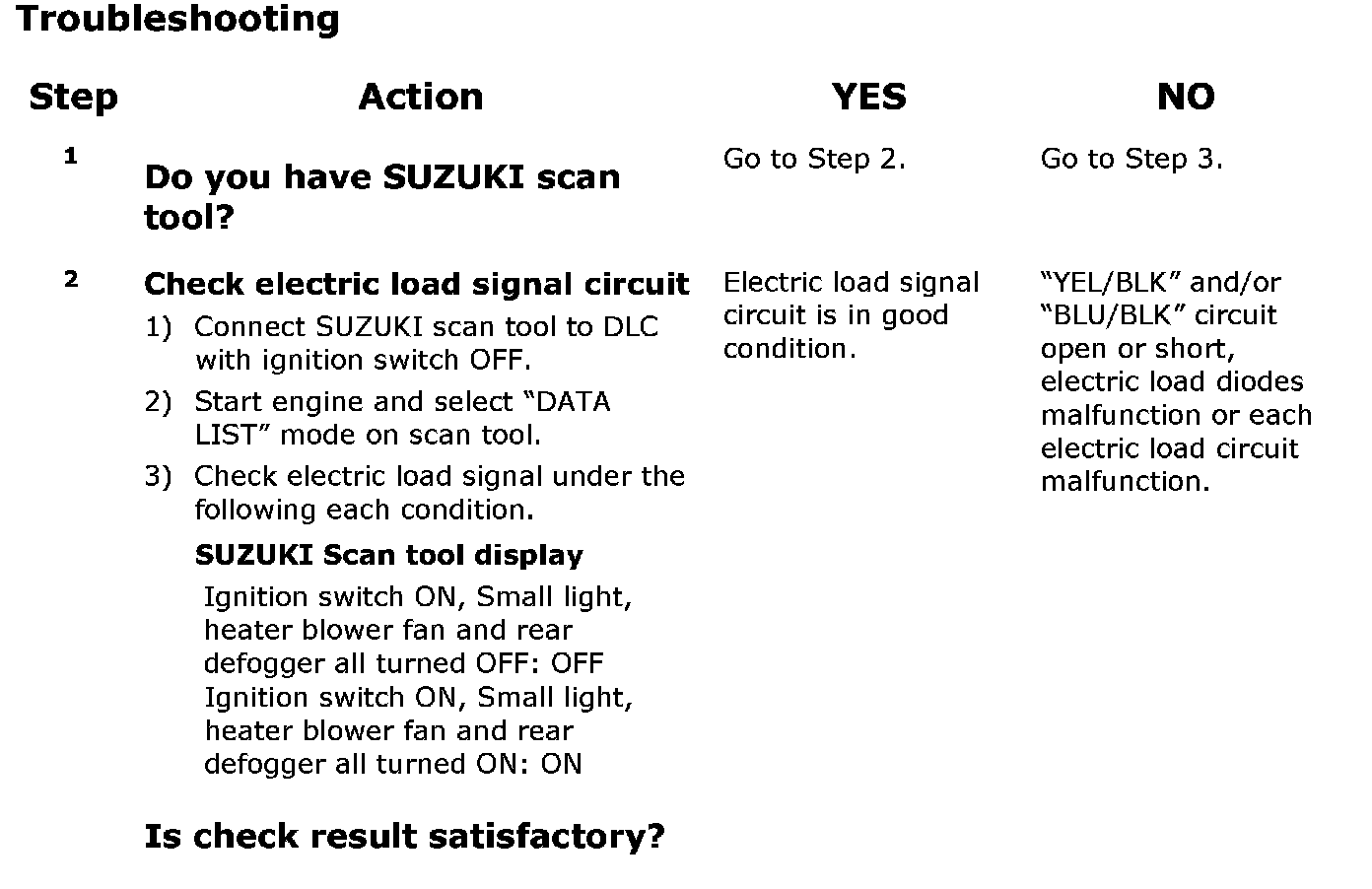

Step 1 - 2:

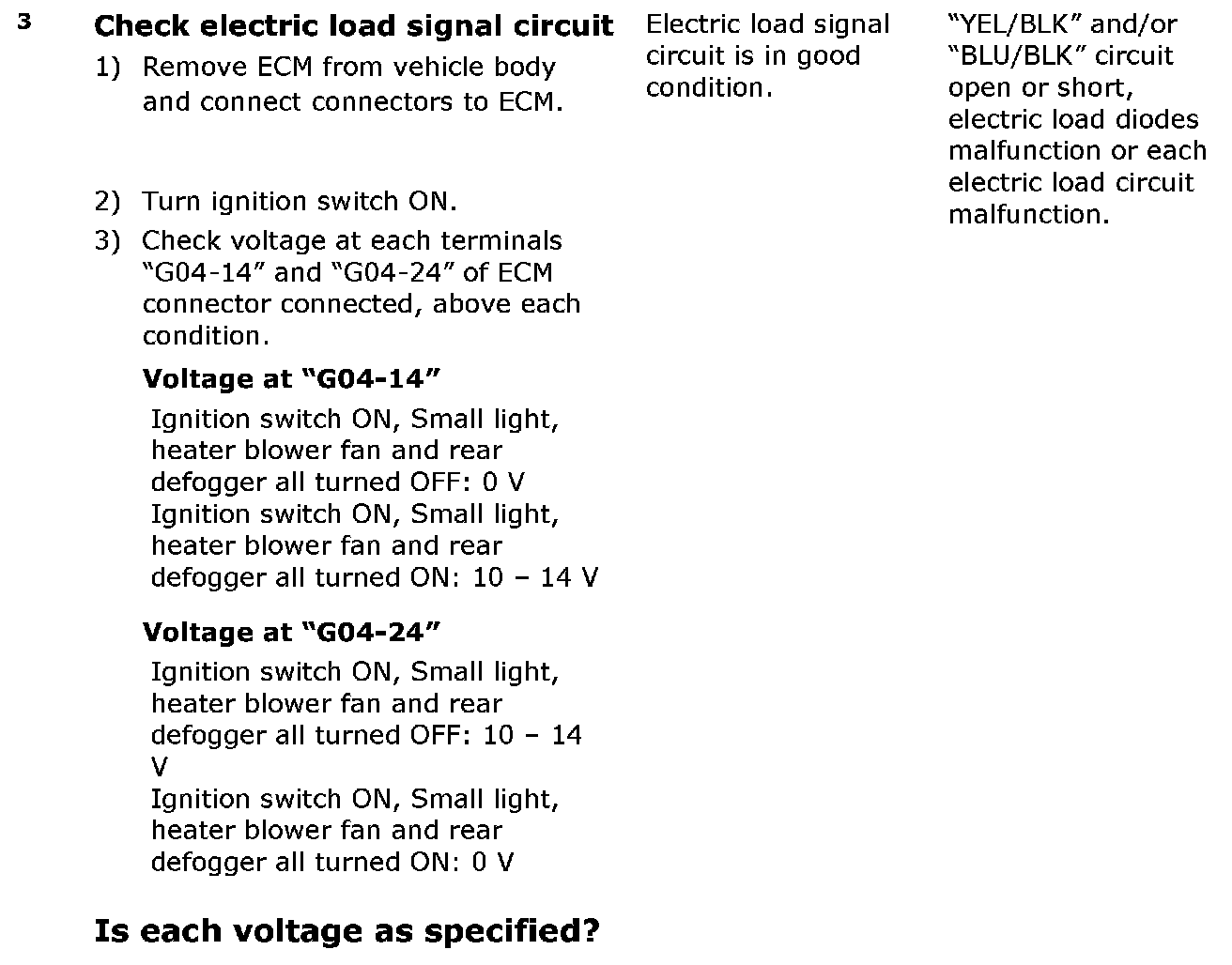

Step 3:
Troubleshooting
