Main Relay (Computer/Fuel System): Locations

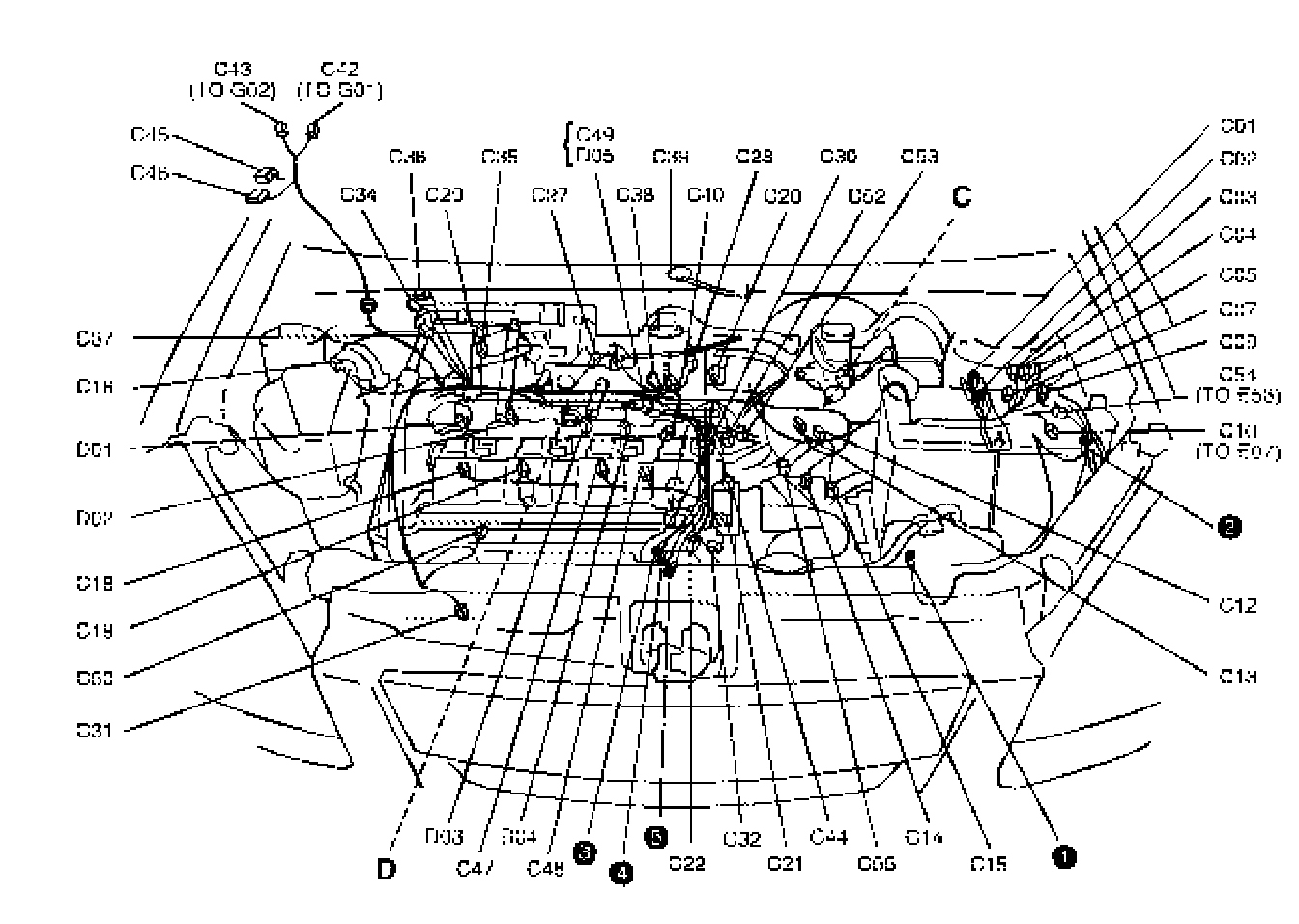

C: Engine Harness / D: Injector Harness View:

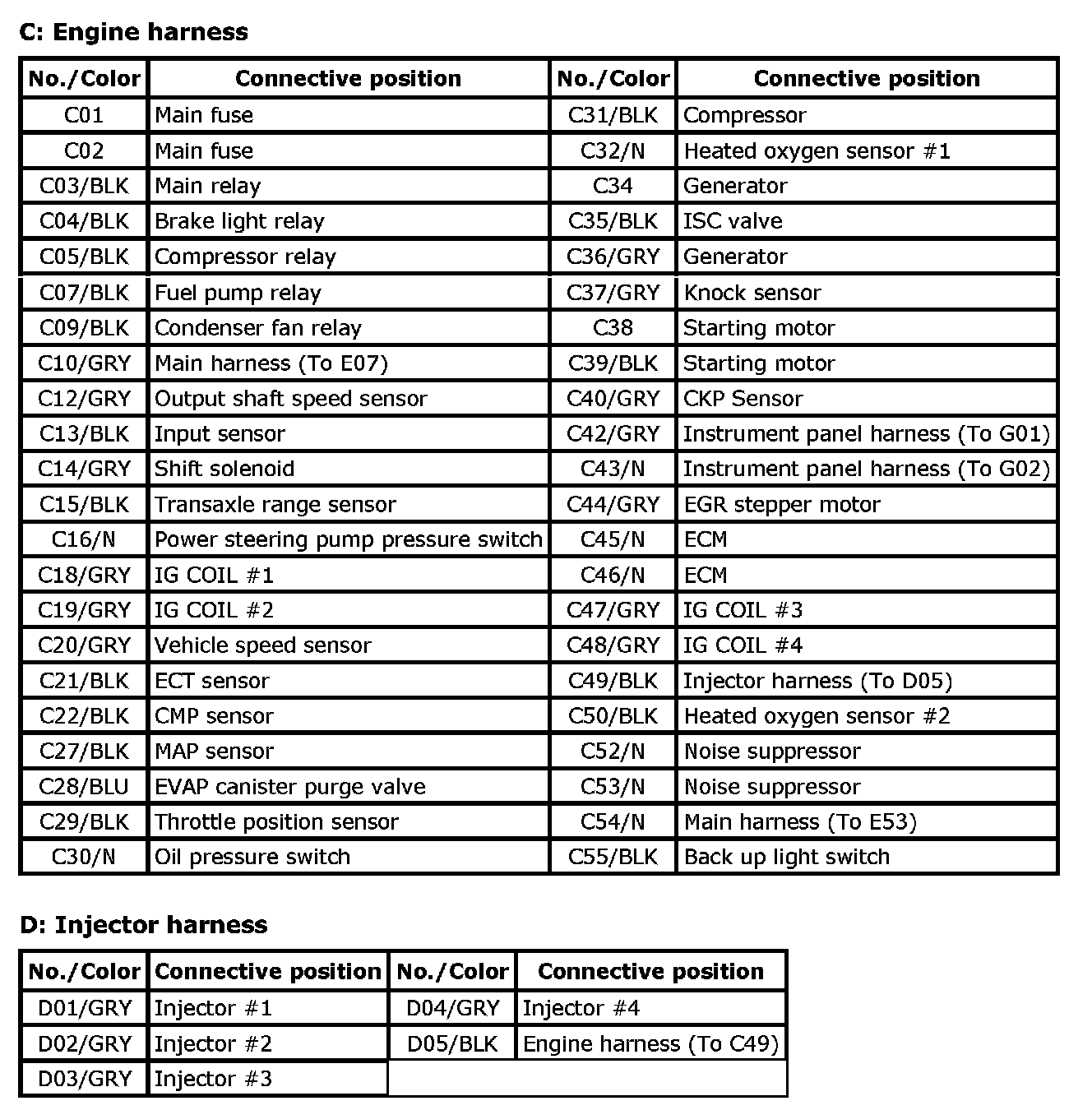

C: Engine Harness / D: Injector Harness Index:

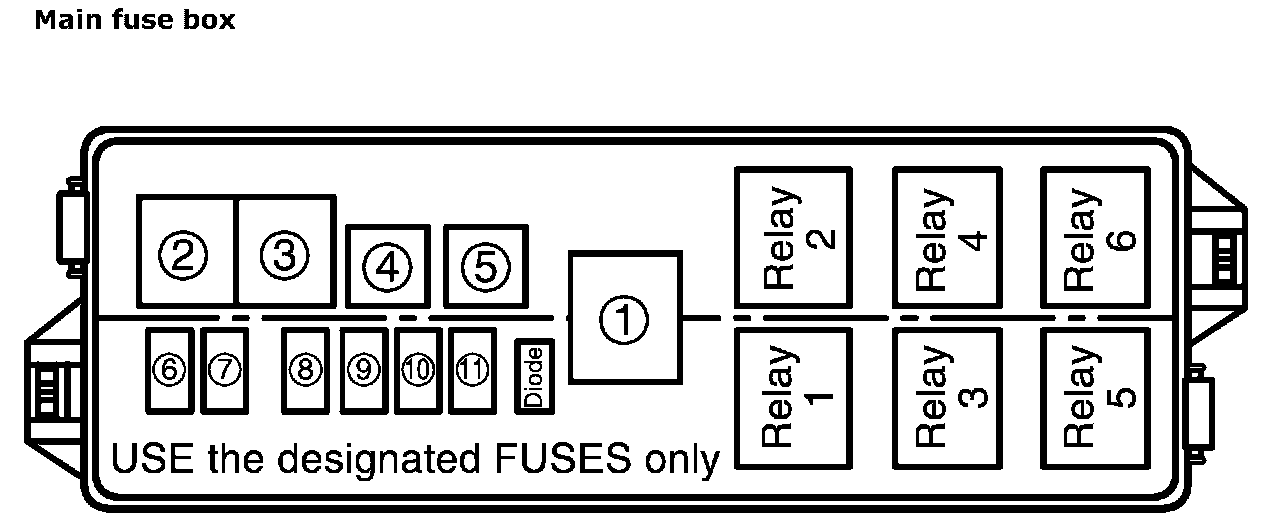

Fuse Box View 1:
