A/C Signal Circuits Inspection

A/C Signal Circuits Check (Vehicle With A/C)

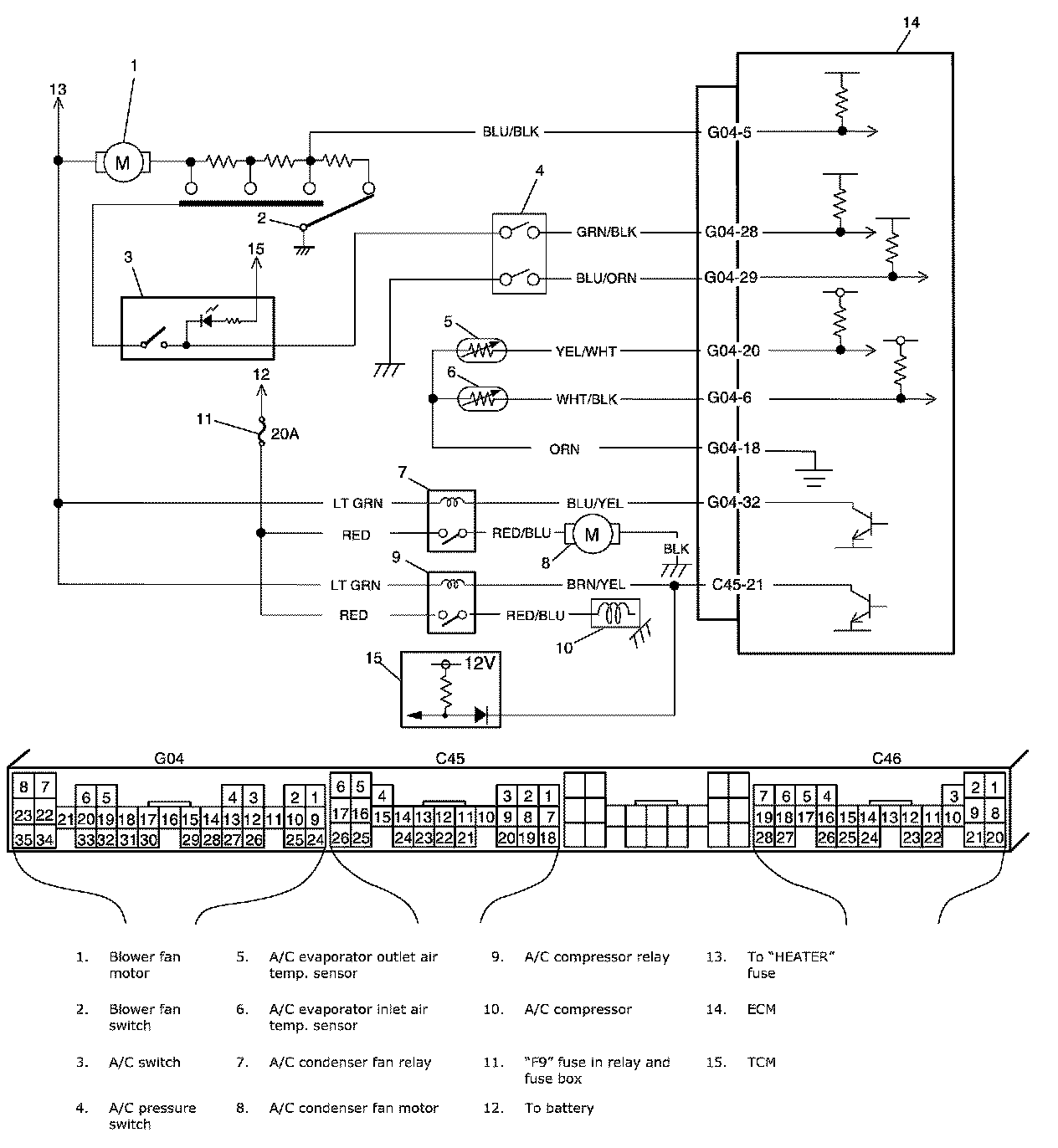

Wiring Diagram:

Step 1 - 2:

Step 3 - 5:

Step 5 - 6:

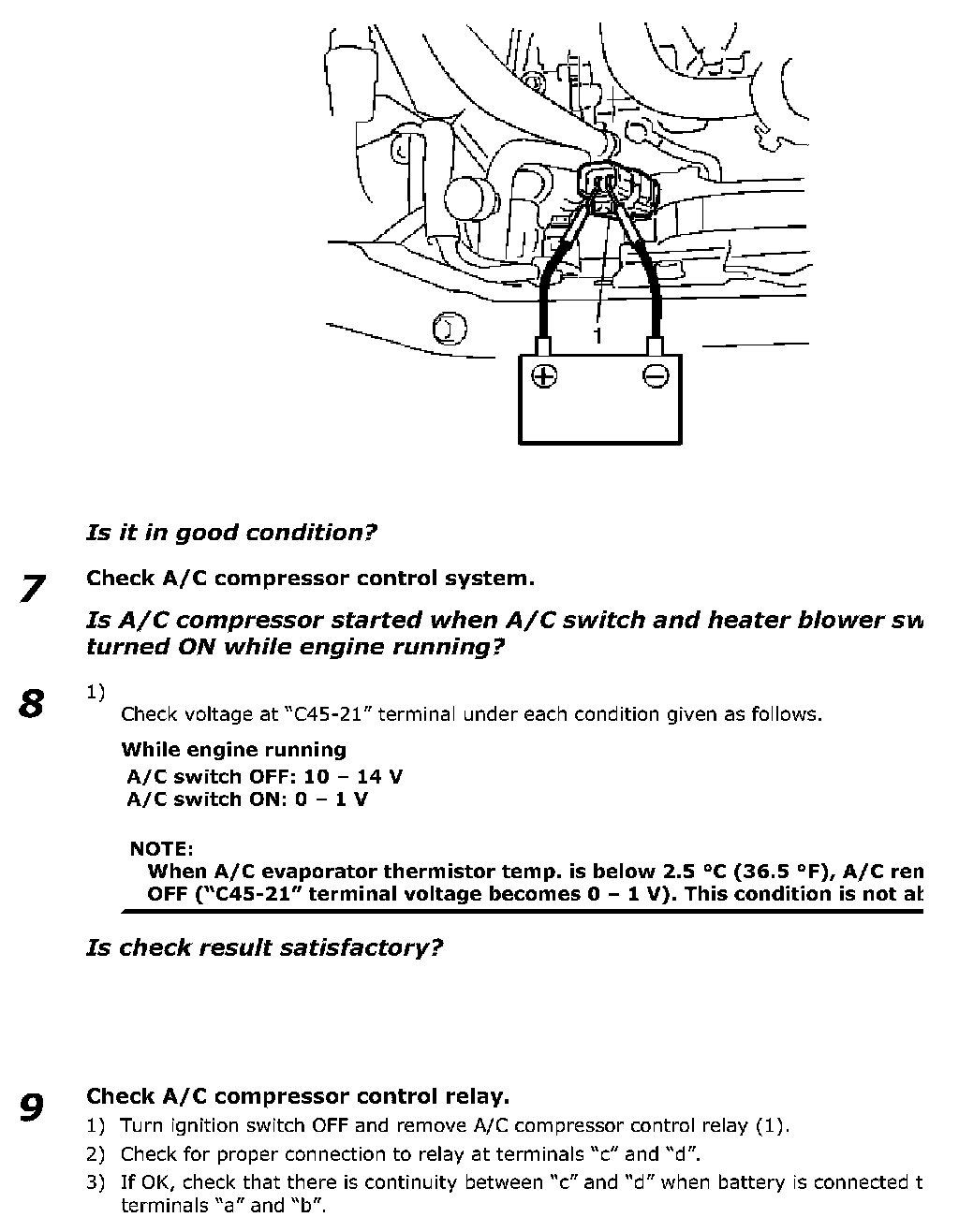

Step 6 - 9:

Step 9:

Troubleshooting
