Ignition Switch: Service and Repair

Removal
1. Disconnect negative cable at battery.
2. Confirm that ignition key is removed.
3. Remove steering column hole cover.
4. Remove steering column upper and lower cover.
5. Remove steering column mounting bolts.

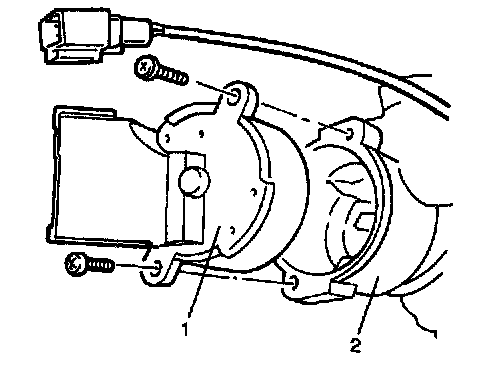

6. Disconnect couplers from ignition switch (1).
7. Remove ignition switch (1) from key cylinder (2).

Installation
Reverse removal procedure for installation.
