Ignition Switch: Testing and Inspection




Ignition Switch Inspection
1. Remove steering column referring to "Steering Column Assembly Removal and installation:".

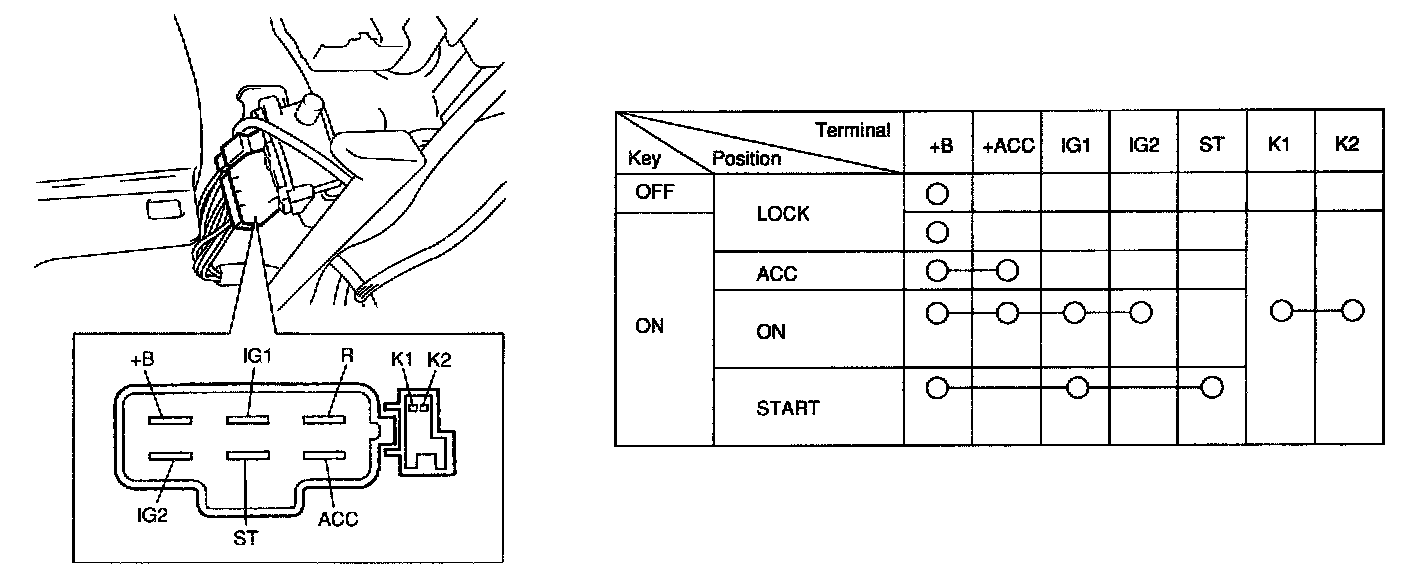

2. Check for continuity between terminals at each switch position as shown in the figure. If check result is not as specified, replace.
