Ignition System Check

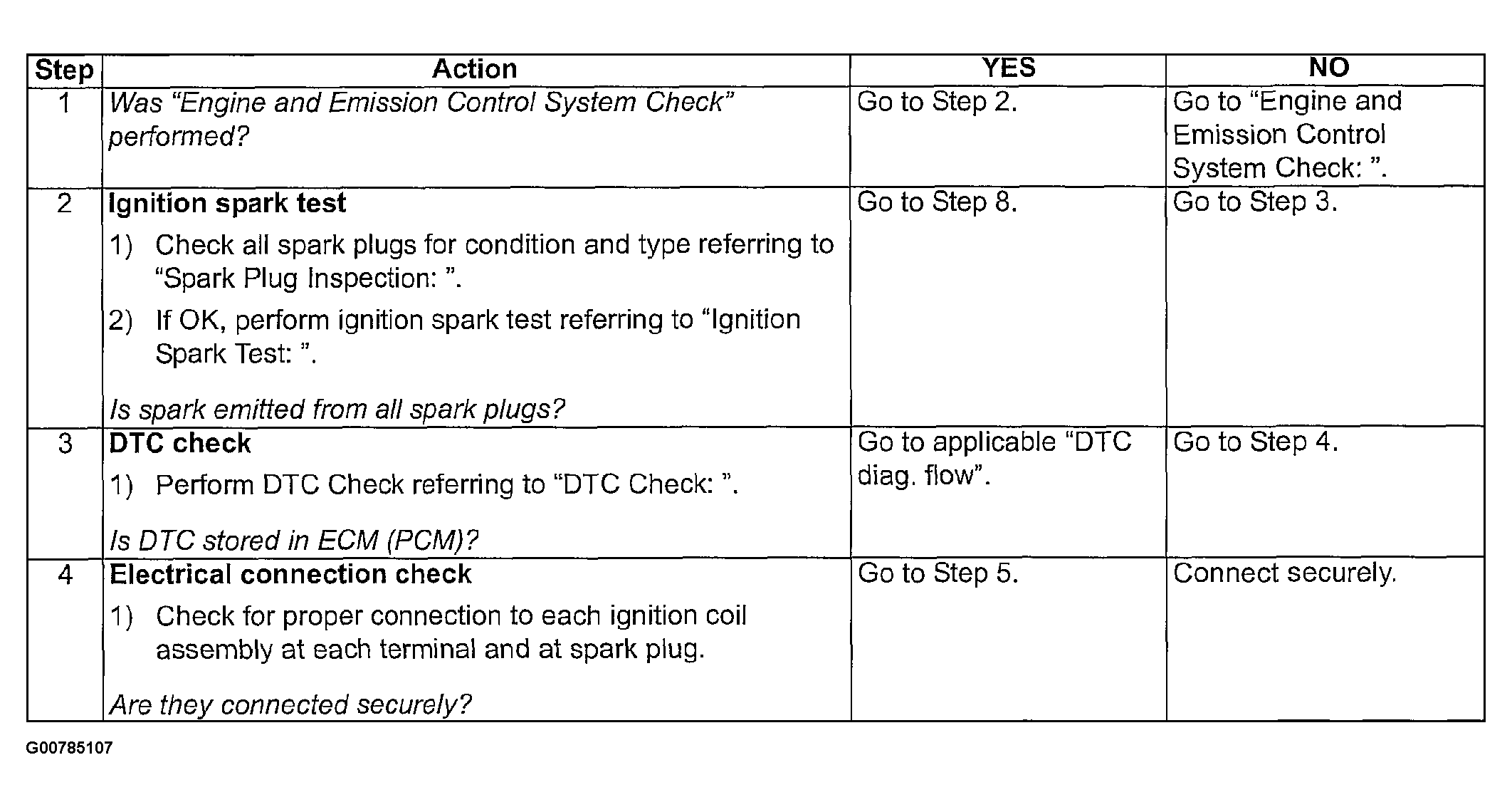

Fig 1: Ignition System Check Chart (1 of 2)
G00785107Courtesy of SUZUKI OF AMERICA CORP.

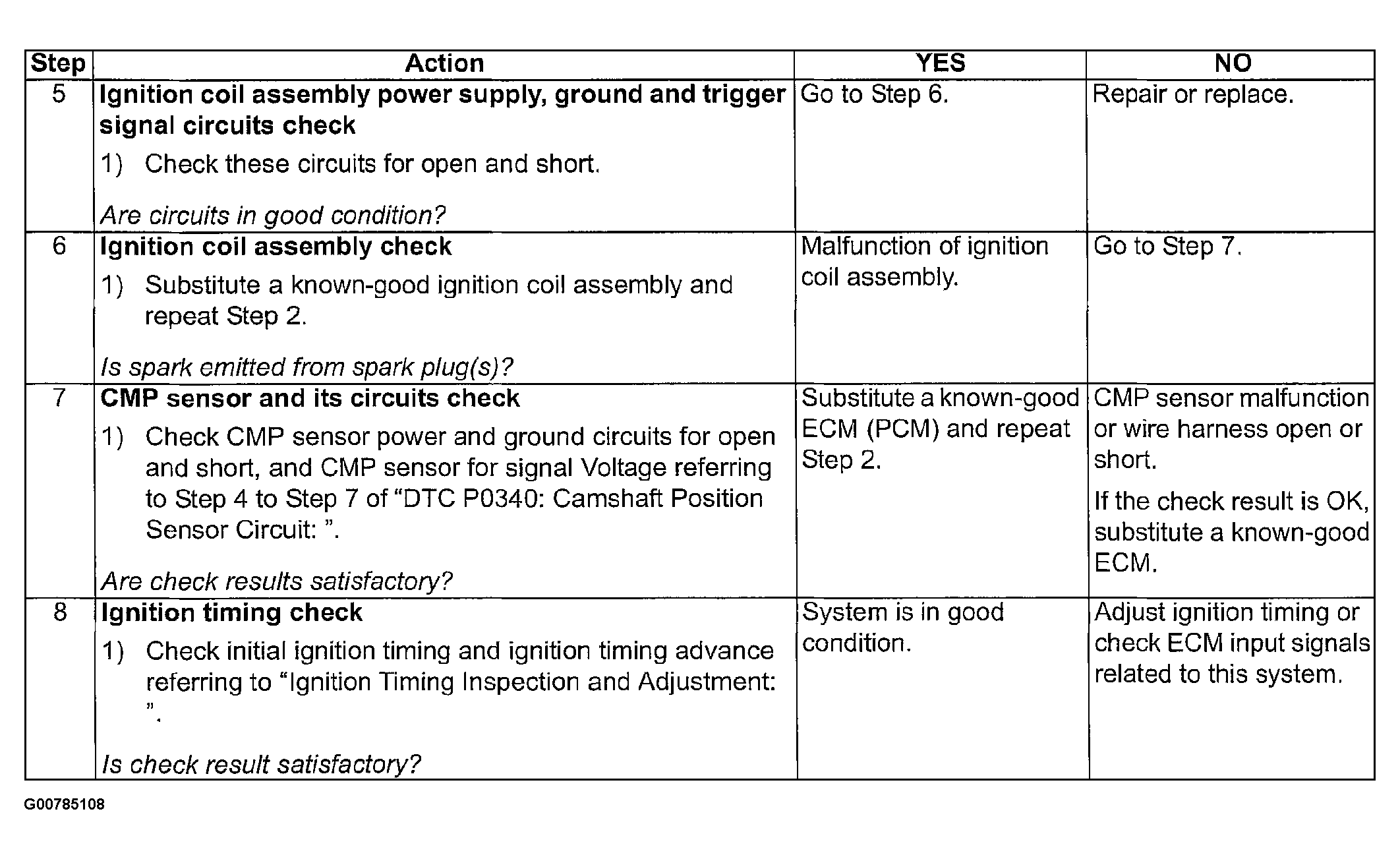

Fig 2: Ignition System Check Chart (2 of 2)
G00785108Courtesy of SUZUKI OF AMERICA CORP.
