Spark Plug Removal and Installation: Installation

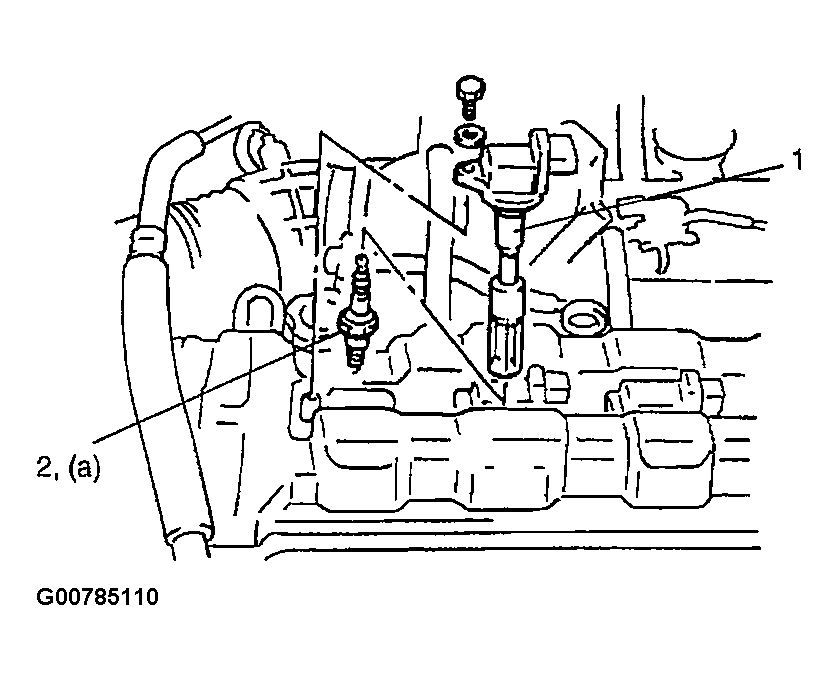

- Install spark plug (2) and tighten them to specified torque.
Tightening torque
Spark plug (a): 25 N.m (2.5 kg-m, 18.0 lb-ft)
- Install ignition coil (1) referring to Ignition Coil Assembly (Igniter and Ignition Coil) Removal and Installation .
- Install engine cover to cylinder head cover referring to ENGINE COVER REMOVAL AND INSTALLATION .
