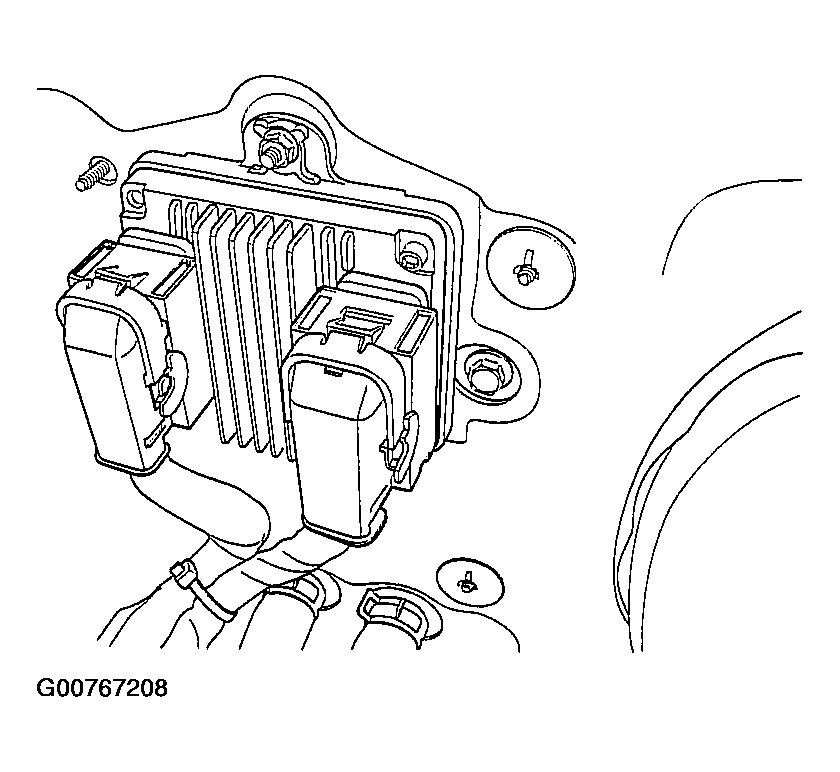

Engine Control Module Removal and Installation: Installation
- Connect the ECM connectors to the ECM.
- Align the ECM into the mounting base.
- Snap the ECM into its mounting base.
- Install the ECM trim locks.
- Install the passenger side kick panel.
- Connect the negative battery cable.
- Perform a crankshaft position system variation learning procedure. Refer to DTC P0315: 58X CRANK POSITION TOOTH ERROR NOT LEARNED .
