Engine Control Module Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Remove the air intake tube and resonator.
  3. Disconnect the ECM connectors from the ECM.
  4. Remove the engine control module.

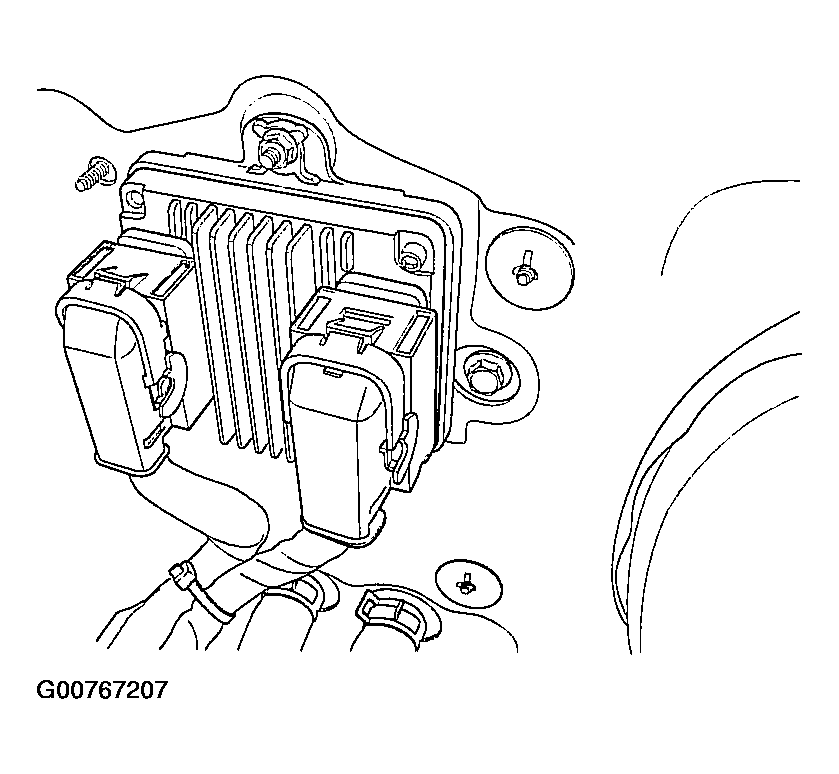

    Fig 1: Removing The Engine Control Module
    G00767207Courtesy of SUZUKI OF AMERICA CORP.
