Rear Toe Adjustment

Rear Toe Adjustment
Adjustment Procedure
1. Perform a preliminary inspection before any attempt is made to change or correct the wheel alignment factors.

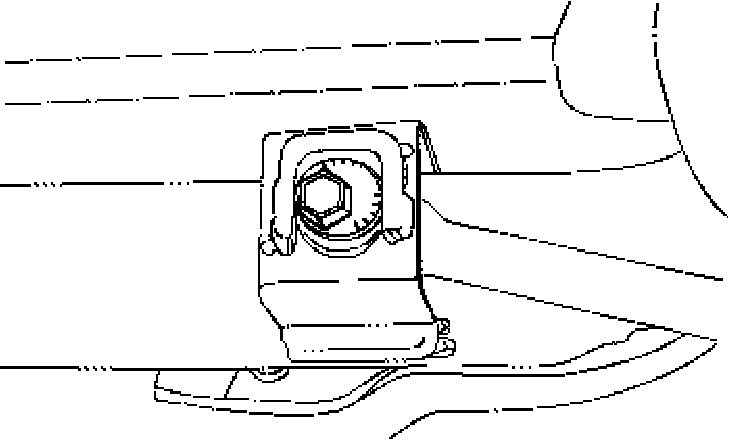

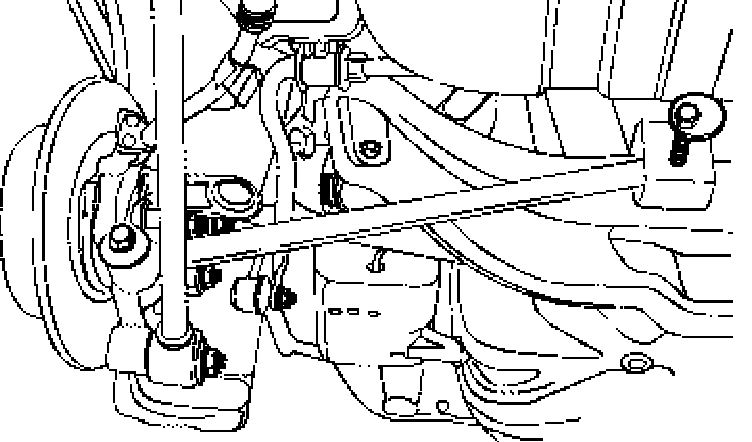

2. Loosen the nuts on the parallel link-to-crossmember bolts.





NOTE: No person in vehicle and full tank of fuel.

3. Rotate the parallel link adjustment bolts until the preferred rear toe specification is obtained.
REAR TOE 0° 12'± 10'

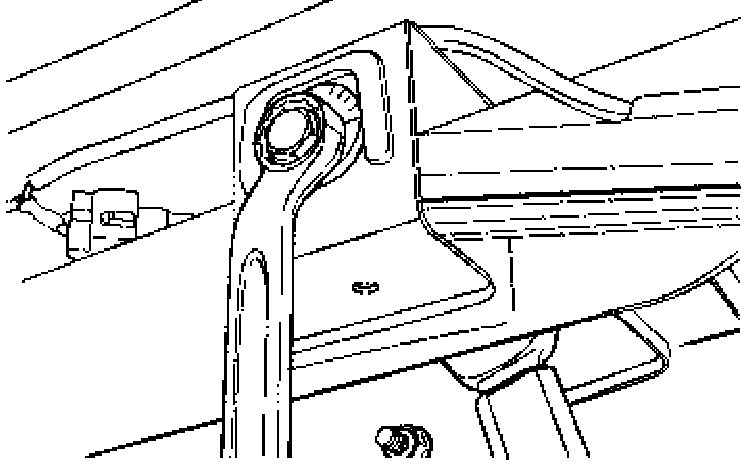

4. Hold the parallel link adjustment bolts and tighten the parallel link-to-crossmember nuts.
^ Tighten the parallel link-to-crossmember nuts to 90 Nm (66 ft. lbs.).
