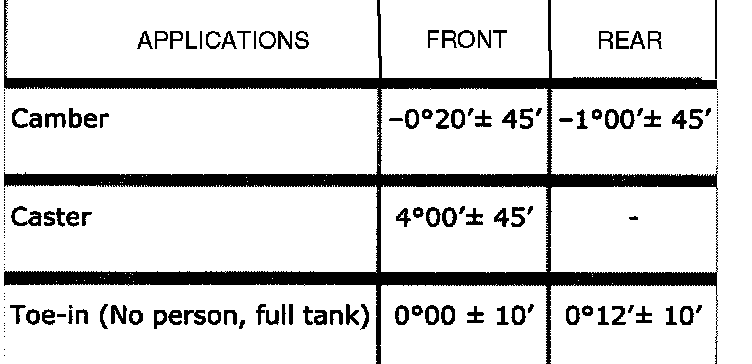

Alignment










Front Wheel Alignment

Toe 0°00 ± 10'

Camber -0°20' ± 45'

Caster 4°00' ± 45'





Rear Wheel Alignment

Toe 0°12' ± 10'

Camber -1°00' ± 45'
