Control Module: Service and Repair

Transaxle Control Module (TCM) Removal and Installation

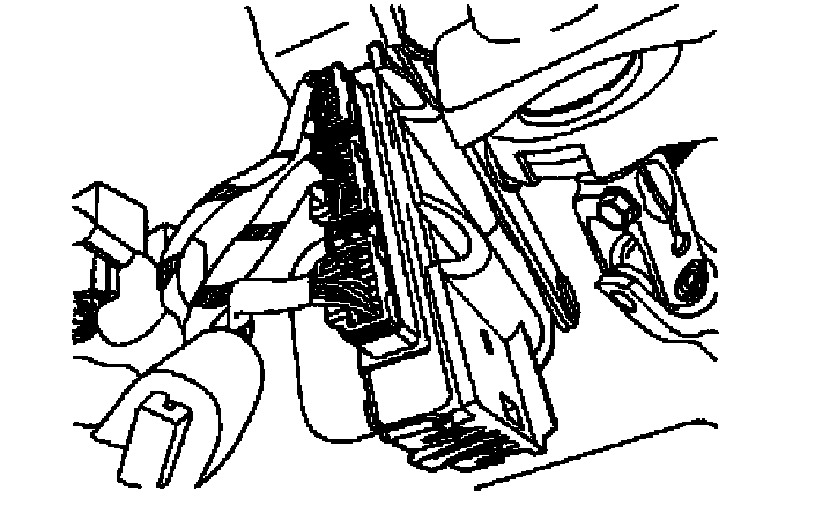

Removal
1. Disconnect the negative battery cable.
2. Disconnect the wiring connectors.
3. Remove the Transaxle Control Module (TCM) from the bracket.

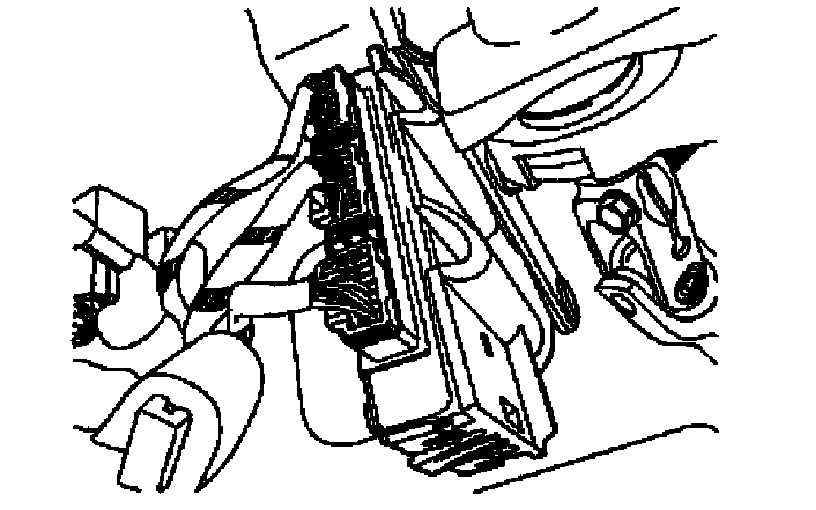

Installation
1. Install the TCM into the bracket.
2. Connect the wiring connectors.
3. Connect the negative battery cable.
