Engine Controls Connectors

Camshaft Position (CMP) Sensor

GM1467004Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 85205-1
  • 3-Way F JR Power Timer 3P Housing Assembly (BK)
Pin Wire Color Circuit No. Function
1 BN 1733 Ignition 1 Voltage
2 BK/WH 51 Ground
3 L-BU/BK 1748 Camshaft Position (CMP) Sensor Signal
Crankshaft Position Sensor (CKP) Sensor

GM1467004Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 85205-1
  • 3-Way F JR Power Timer 3P Housing Assembly (BK)
Pin Wire Color Circuit No. Function
1 D-BU/WH 1869 Crankshaft Position (CKP) Sensor Signal
2 YE/BK 1868 Low Reference
3 BK/WH 51 Ground
Engine Coolant Temperature (ECT) Sensor

GM62426Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12040753
  • 2-Way F Metri-Pack 150 Series Sealed, Pull To Seat (BK)
Pin Wire Color Circuit No. Function
A L-GN 410 Engine Coolant Temperature (ECT) Sensor Signal
B D-GN 808 Low Reference
Evaporative Emissions (EVAP) Canister Purge Solenoid Valve

GM684795Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12052643
  • 2-Way F Metri-Pack 150 Series Sealed (RD)
Pin Wire Color Circuit No. Function
A WH 452 EVAP Canister Purge Valve Solenoid Control
B BN 1733 Ignition 1 Voltage

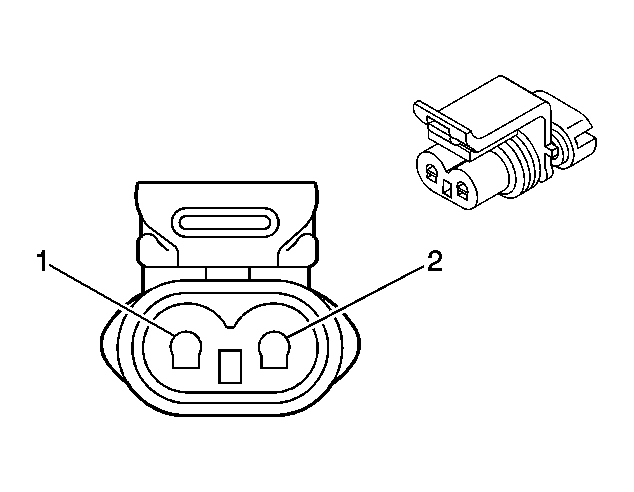

Evaporative Emissions (EVAP) Canister Vent Solenoid

GM1481266Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 32229
  • 2-Way F (BN)
Pin Wire Color Circuit No. Function
1 YE 1578 EVAP Canister Vent Solenoid Control
2 D-GN 1733 Ignition 1 Voltage

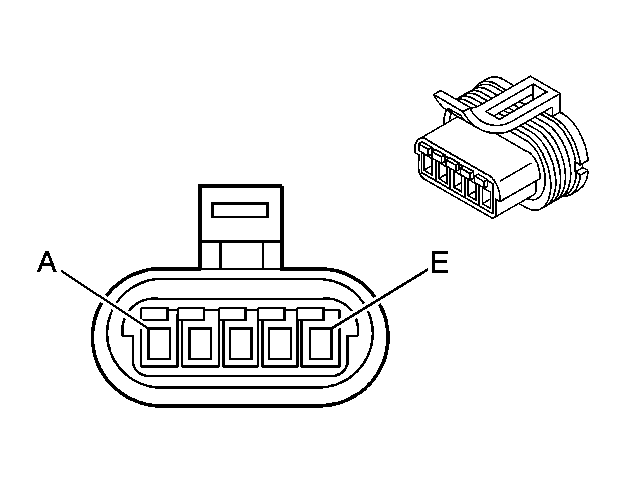

Exhaust Gas Recirculation (EGR) Valve

GM1468386Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12110790
  • 5-Way F Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A D-BU 436 Exhaust Gas Recirculation (EGR) Valve Control
B D-GN 813 Low Reference
C D-GN 435 Exhaust Gas Recirculation (EGR) Valve Position Sensor Signal
D D-GN/WH 416 5V Reference
E BN 1733 Ignition 1 Voltage

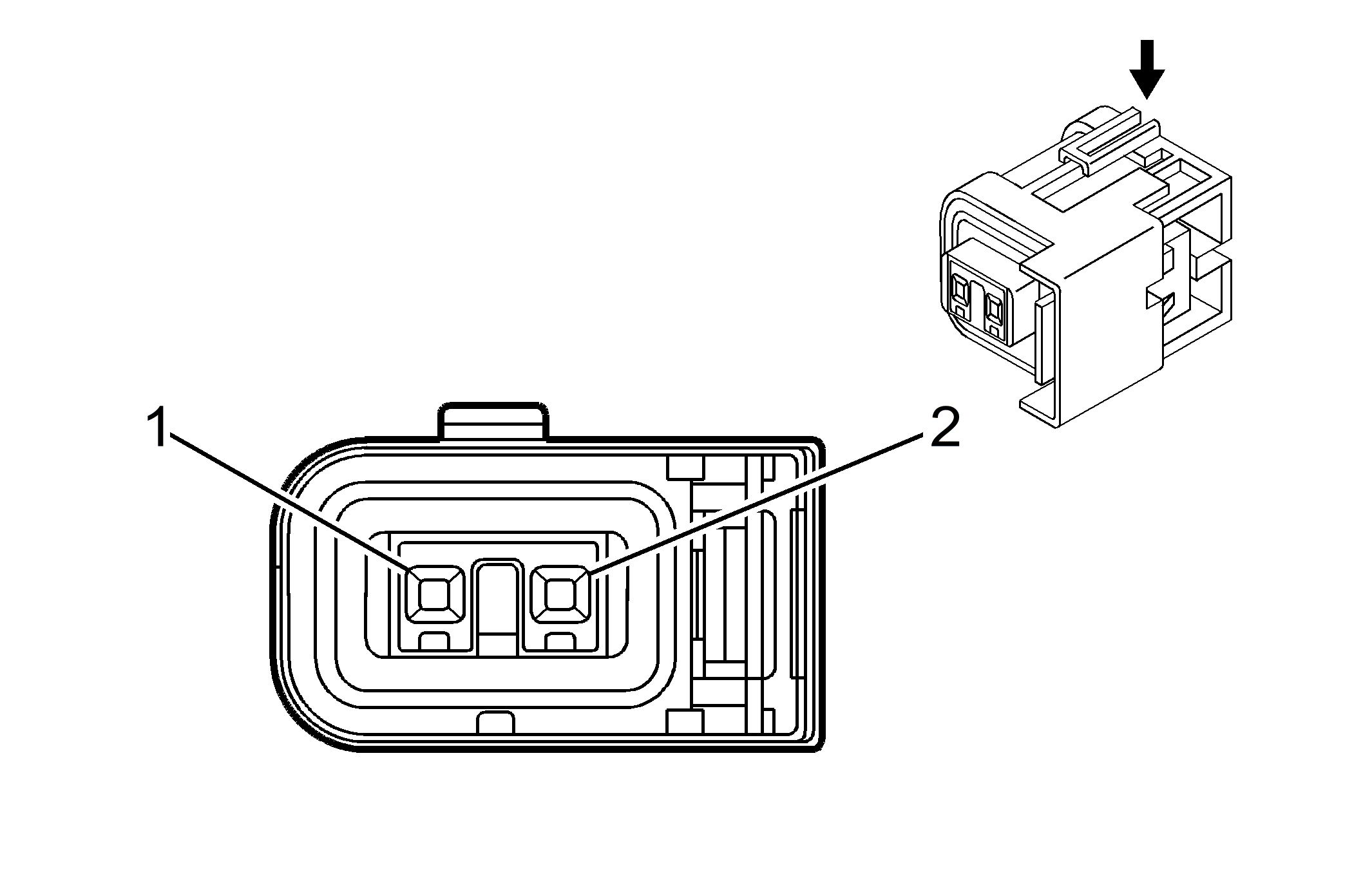

Fuel Injector 1

GM1466998Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 368468-1
  • 2-Way F Injector Plug Assembly (BK)
Pin Wire Color Circuit No. Function
1 BN 1733 Ignition 1 Voltage
2 BN/BK 1747 Fuel Injector 1 Control
Fuel Injector 2

GM1466998Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 368468-1
  • 2-Way F Injector Plug Assembly (BK)
Pin Wire Color Circuit No. Function
1 BN 1733 Ignition 1 Voltage
2 L-GN 1746 Fuel Injector 2 Control
Fuel Injector 3

GM1466998Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 368468-1
  • 2-Way F Injector Plug Assembly (BK)
Pin Wire Color Circuit No. Function
1 BN 1733 Ignition 1 Voltage
2 BN/WH 1745 Fuel Injector 3 Control
Fuel Injector 4

GM1466998Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 368468-1
  • 2-Way F Injector Plug Assembly (BK)
Pin Wire Color Circuit No. Function
1 BN 1733 Ignition 1 Voltage
2 YE 1744 Fuel Injector 4 Control
Fuel Pump/Sender

GM1468528Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 936039
  • 6-Way F Fuel Pump 6 POS Connector Assembly (BN)
Pin Wire Color Circuit No. Function
1 GY 1936 Fuel Level Sensor Signal
2 BK 850 Ground
3 BN 1723 Fuel Pump Supply Voltage
4 L-BU 850 Ground
5 PU 172 Low Fuel Indicator Control
6 BK 1937 Low Reference
Fuel Tank Pressure Sensor

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12059595
  • 3-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A GY/D-GN 1029 Low Reference
B L-BU 1030 Fuel Tank Pressure Sensor Signal
C WH 1031 5-Volt Reference
Heated Oxygen Sensor (HO2S) 1

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A WH 428 Heated Oxygen Sensor (HO2S) 1 Signal
B D-BU/BK 429 Heated Oxygen Sensor (HO2S) 1 Low Reference
C BN 50 Ground
D BN 1733 Ignition 1 Voltage
Heated Oxygen Sensor (HO2S) 2

GM684854Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A D-GN/BK 1670 Heated Oxygen Sensor (HO2S) 2 Low Reference
B L-GN/OG 413 Heated Oxygen Sensor (HO2S) 2 Signal
C BN 1671 Heated Oxygen Sensor (HO2S) 2 Heater Control
D BN 1733 Ignition 1 Voltage
Idle Air Control (IAC) Valve

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12040754
  • 4-Way Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A D-GN 415 Idle Air Control (IAC) B Low Control
B L-GN 417 Idle Air Control (IAC) B High Control
C WH/D-BU 533 Idle Air Control (IAC) A Low Control
D L-GN 534 Idle Air Control (IAC) A High Control
Ignition Coil (IC) Module

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12059595
  • 3-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A OG 423 Ignition Coil (IC) Timing Control 2 and 3
B PK 539 Ignition 1 Voltage
C L-BU 406 Ignition Coil (IC) Timing Control 1 and 4
Intake Air Temperature (IAT) Sensor

GM1467003Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 85202-1
  • 2-Way JR Power Timer 2P Housing Assembly (BK)
Pin Wire Color Circuit No. Function
1 L-BU 468 Intake Air Temperature (IAT) Sensor Signal
2 D-GN 808 Low Reference
Intake Manifold Tuning Valve

GM1466982Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 174352-2
  • 2-Way F Econoseal J Mark II + Connector Plug Housing (BK)
Pin Wire Color Circuit No. Function
1 BN 1733 Ignition 1 Voltage
2 YE 492 Intake Manifold Tuning Valve Solenoid Control
Knock Sensor (KS)

GM1466993Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 368215-1
  • 3-Way JPT 3P Assembly for Knock Sensor (GY)
Pin Wire Color Circuit No. Function
1 YE/BK 496 Knock Sensor (KS) Signal
2 D-BU/WH 1876 Low Reference
3 BK 808 Low Reference
Manifold Absolute Pressure (MAP) Sensor

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12059595
  • 3-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A WH 433 Low Reference
B L-BU 432 Manifold Absolute Pressure (MAP) Sensor Signal
C L-BU 469 5-Volt Reference

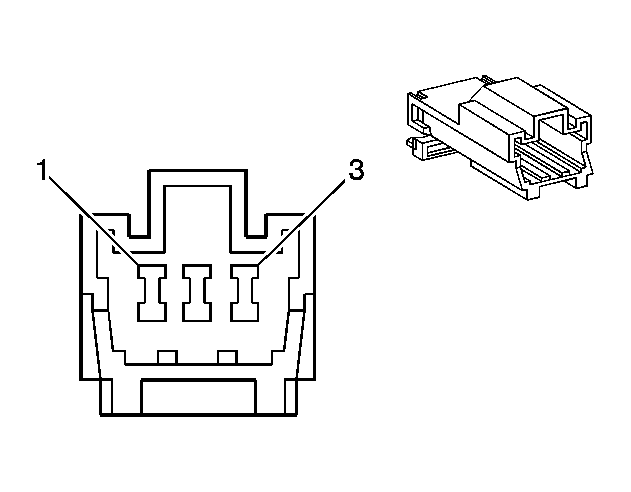

Octane Selector Switch

GM1467062Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 620395
  • 3-Way M Series Sealed (WH)
Pin Wire Color Circuit No. Function
1 GY 892 Octane Selection Signal
2 BK/WH 51 Ground
3 - - Not Used
Rough Road Sensor

GM73223Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12162185
  • 3-Way F Metri-Pack 150.2 Series Sealed, Pull To Seat (BK)
Pin Wire Color Circuit No. Function
A L-BU 1937 Low Reference
B D-GN 602 Rough Road Sensor Signal
C WH/RD 1031 5-Volt Reference
Throttle Position (TP) Sensor

GM258299Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12078090
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A PU 427 5-Volt Reference
B D-BU 426 Low Reference
C WH 425 Throttle Position (TP) Sensor Signal
