Installation Procedure

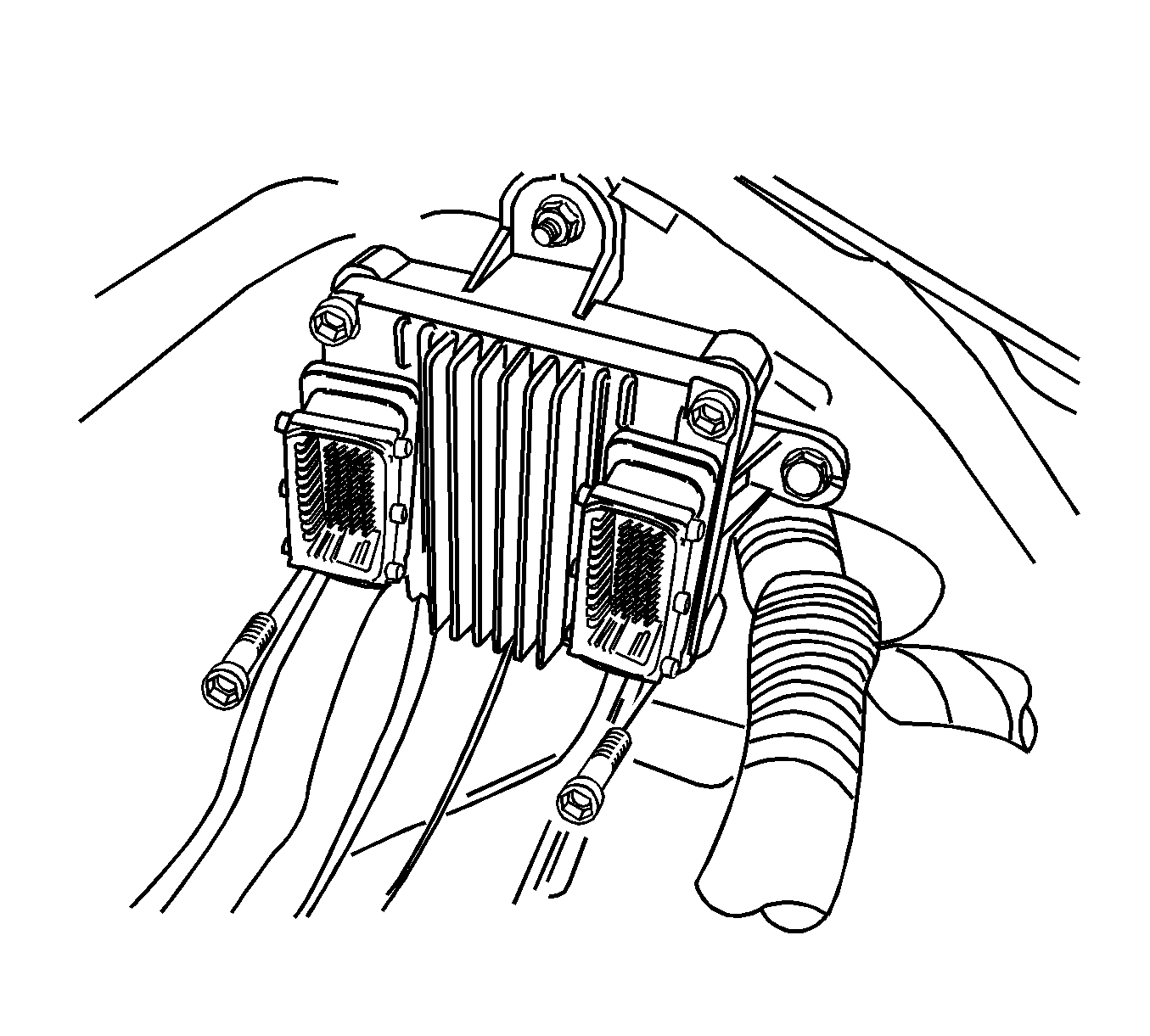

    Fig 1: View of ECM
    GM1241941Courtesy of GENERAL MOTORS CORP.
  1. Position the ECM in place.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the ECM to the ECM mount and install the retaining bolts.

    Tighten:  Tighten the ECM retaining bolts to 4 N.m (35 lb in).

  3. Connect the negative battery cable.
  4. Perform the following procedures:
