Automatic Transmission Shift Lock Control Schematics

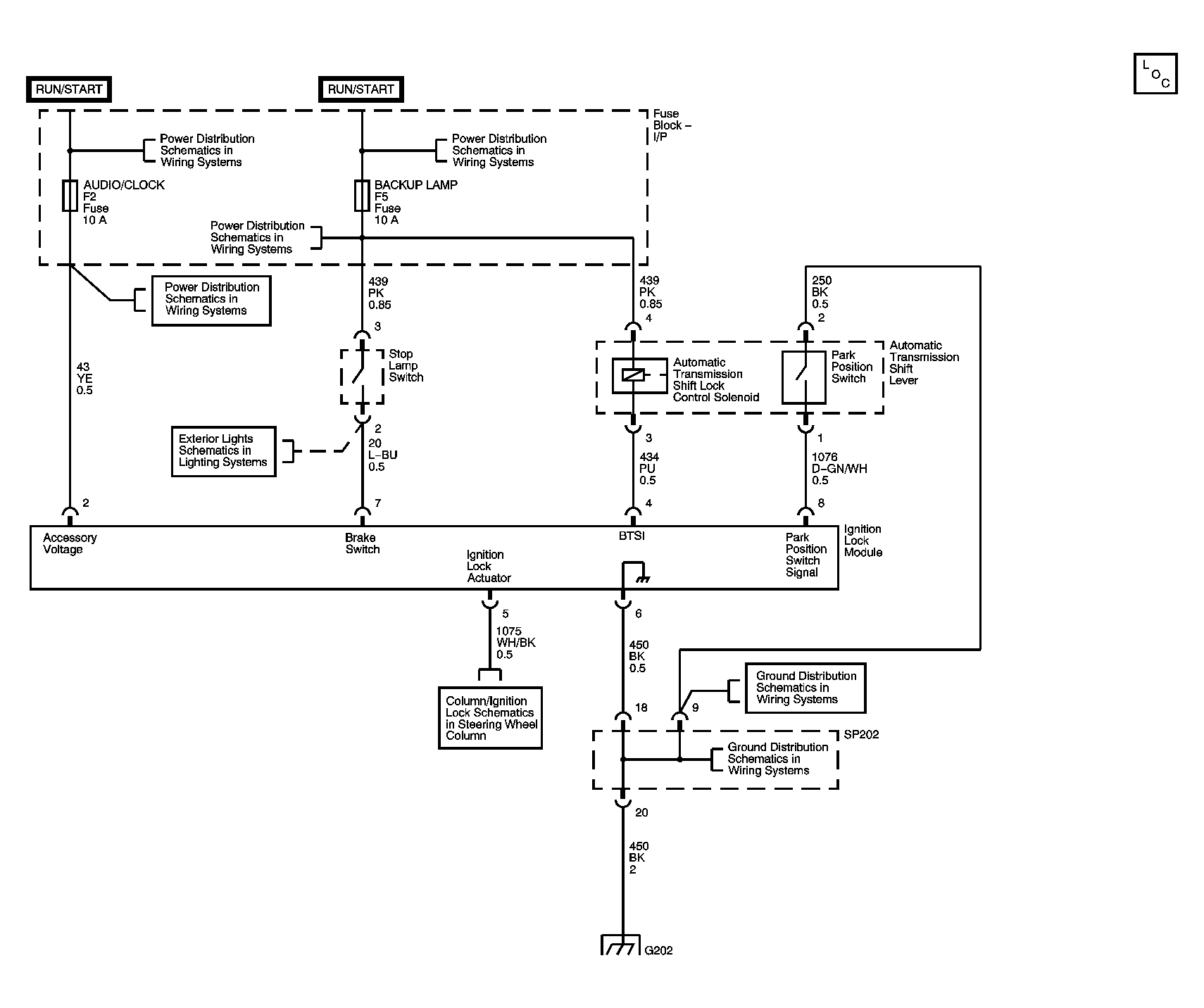

Fig 1: North America Schematics
GM1376498Courtesy of GENERAL MOTORS CORP.

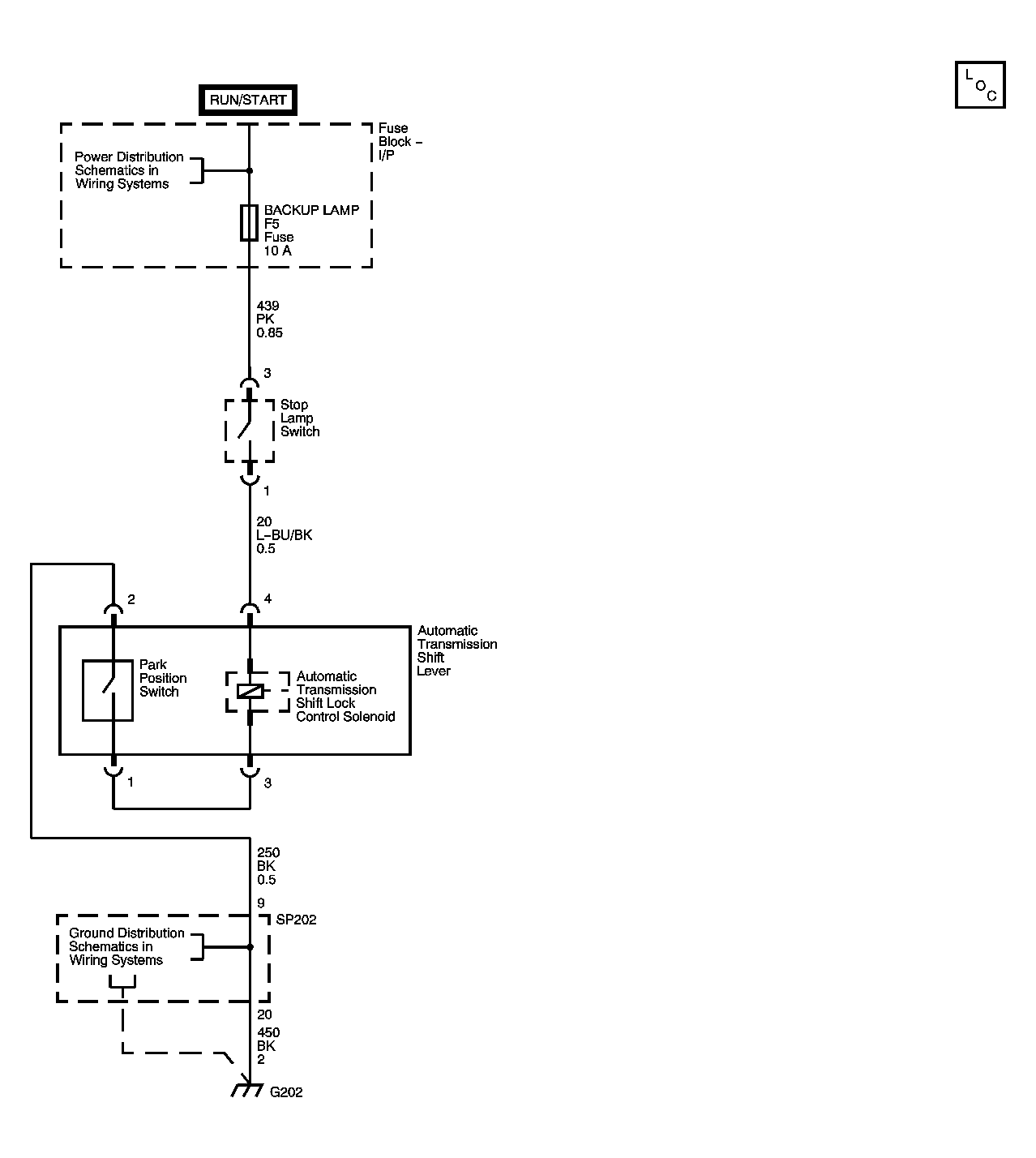

Fig 2: Except North America Schematics
GM1456605Courtesy of GENERAL MOTORS CORP.
