Ignition Coil Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the ignition coil wiring harness connectors.
  3. Remove the ignition coils.

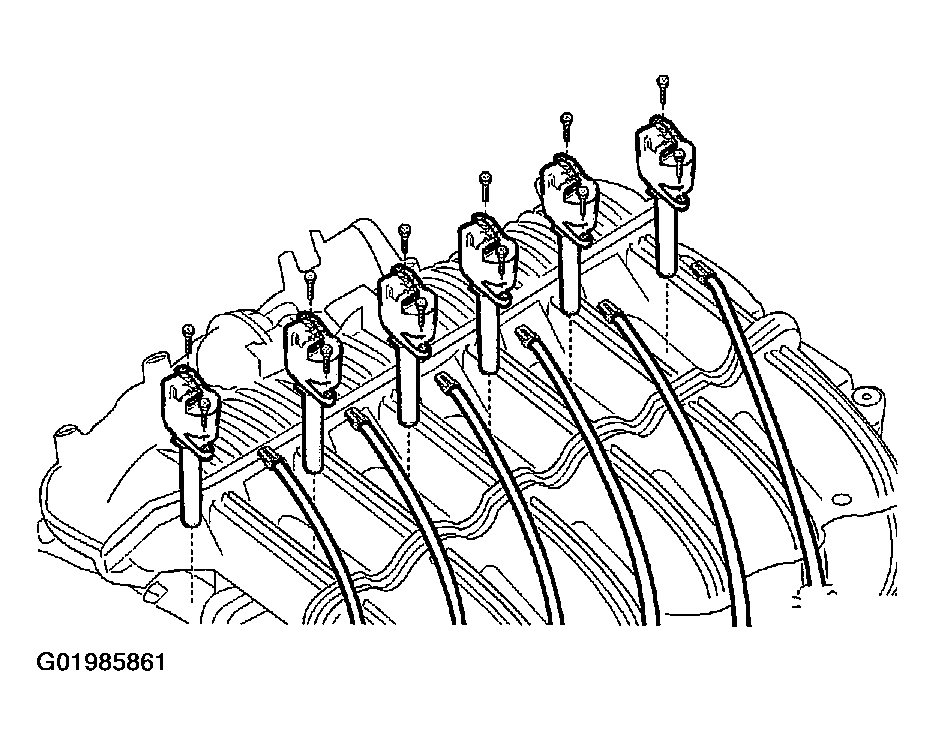

Fig 1: Removing Ignition Coils
G01985861Courtesy of SUZUKI OF AMERICA CORP.
