Intake EGR Pipe Installation

  1. Installation should follow the removal procedure in the reverse order.
  2. Install the intake EGR pipe.

    Tighten

    1. Tighten the intake EGR pipe retaining bolts to 8-12 N.m (71-106 lb-in).

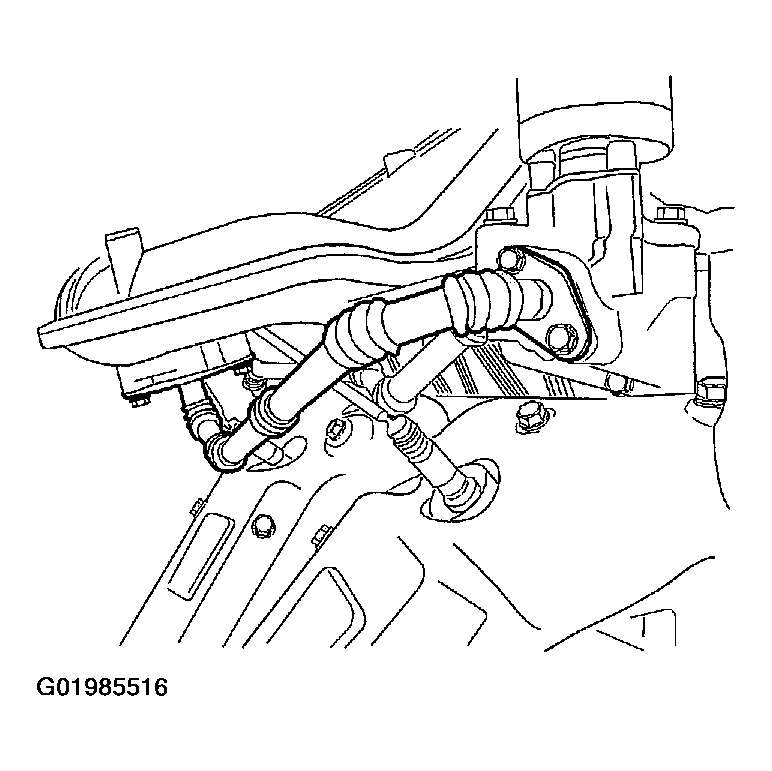

Fig 1: Installing Intake EGR Pipe
G01985516Courtesy of SUZUKI OF AMERICA CORP.
