Oxygen Sensor (O2S) Installation

  1. Installation should follow the removal procedure in the reverse order.

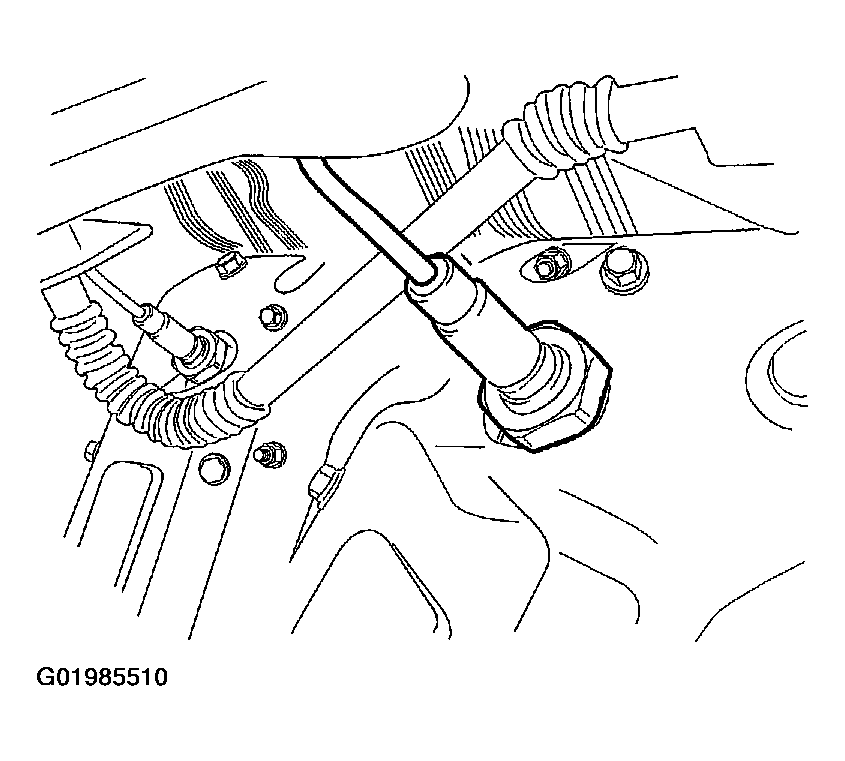

    2. Fig 1: Installing O2S In Reverse Order
    G01985510Courtesy of SUZUKI OF AMERICA CORP.
  2. Install the oxygen sensor (O2S).
    NOTE: A special anti-seize compound is used on the O2S threads. This compound consists of a liquid graphite and glass beads. The graphite will burn away, but the glass beads will remain, making the sensor easier to remove. New or service sensors will already have the compound applied to the threads. If a sensor is removed from any engine and if for any reason it is to be reinstalled, the threads must have anti-seize compound applied before reinstallation.

    Tighten

    1. Tighten the oxygen sensor to 34-44 N.m (25-32 lb-ft).
