Engine Control Module (ECM) Removal

  1. Remove the battery.
  2. Remove the ECM bracket nuts.
  3. Disconnect the ECM connector.
  4. Remove the ECM retaining nuts and the ECM.

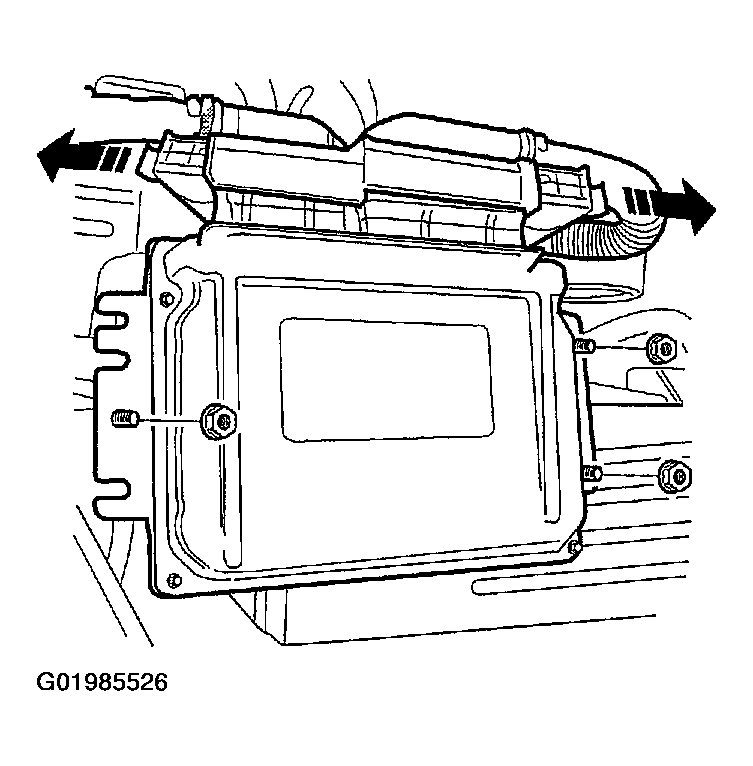

Fig 1: Removing ECM Retaining Nuts & ECM
G01985526Courtesy of SUZUKI OF AMERICA CORP.
