Engine Coolant Temperature Sensor Removal

  1. Relieve the pressure in the coolant reservoir by turning the coolant reservoir cap slightly counterclockwise.
  2. Disconnect the negative battery cable.
    3. Fig 1: Disconnecting Negative Battery Cable
    G01985529Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the VIS vacuum tank. Refer to VIS Vacuum Tank Removal  .

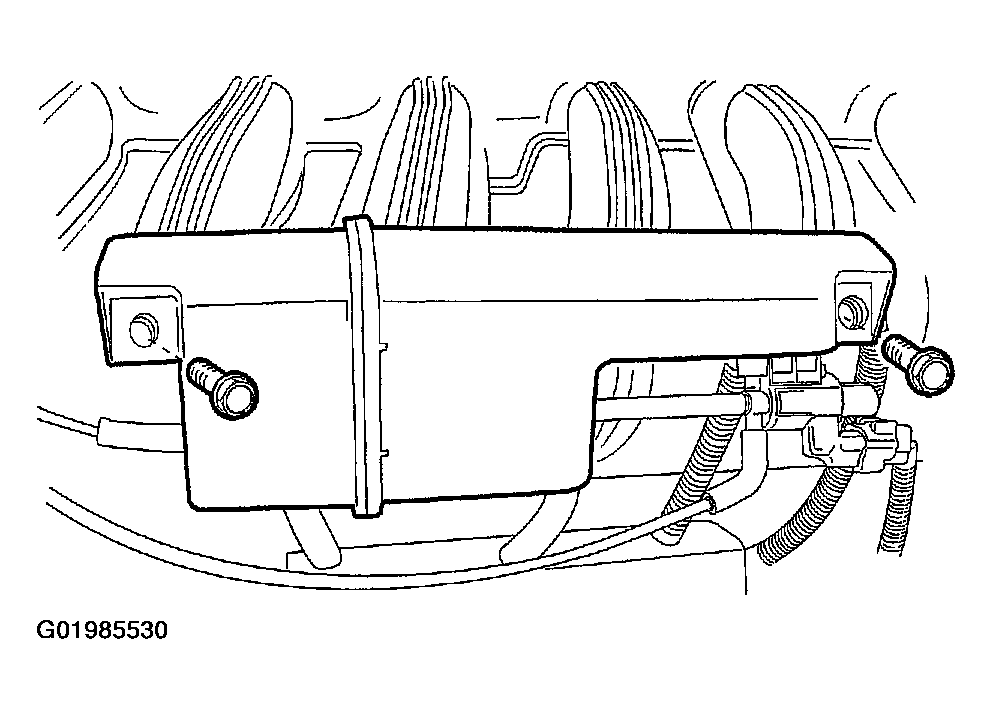

    4. Fig 2: Removing VIS Vacuum Tank
    G01985530Courtesy of SUZUKI OF AMERICA CORP.
  4. Disconnect the engine coolant temperature sensor (ECTS) connector.
  5. Remove the ECTS from the cylinder head.

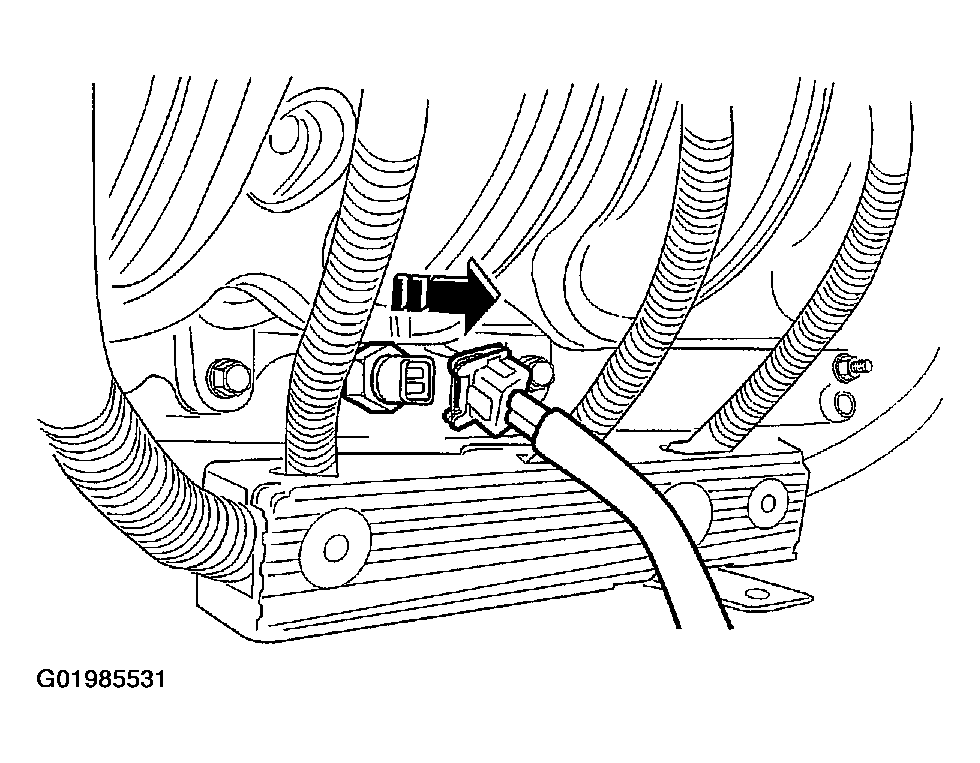

Fig 3: Removing ECTS From Cylinder Head
G01985531Courtesy of SUZUKI OF AMERICA CORP.
