Knock Sensor Installation

Installation should follow the removal procedure in the reverse order.
Install the knock sensor.
Tighten
1. Tighten the knock sensor retaining bolt to 18-20 N.m (13-15 lb-ft).

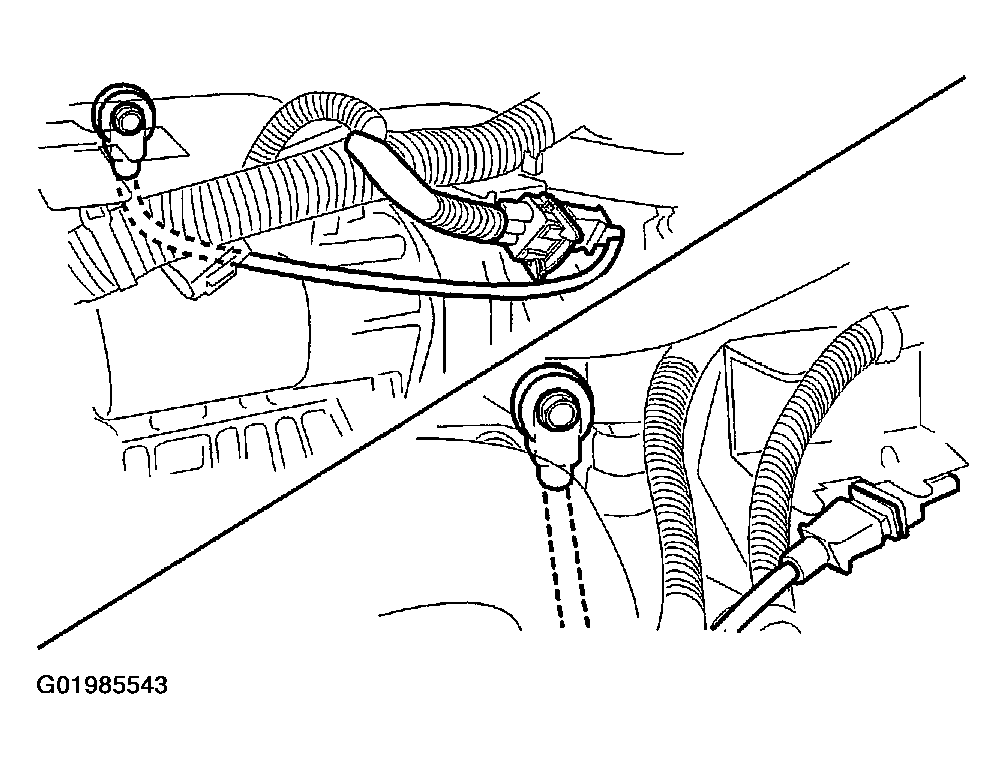

Fig 1: Installing Knock Sensor

Courtesy of SUZUKI OF AMERICA CORP.

Install the VIS vacuum tank.
Tighten
1. Tighten the VIS vacuum tank retaining bolts to 7-9 N.m (62-80 lb-in).

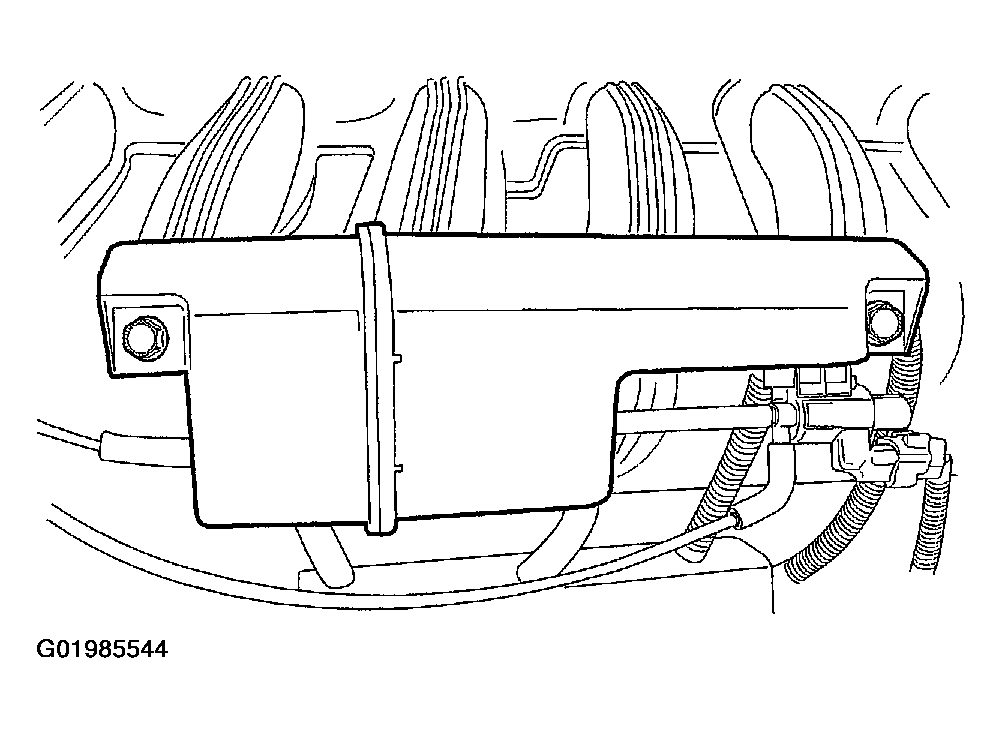

Fig 2: Installing VIS Vacuum Tank

Courtesy of SUZUKI OF AMERICA CORP.
