Knock Sensor Removal

Disconnect the negative battery cable.
Remove the VIS vacuum tank. Refer to "VIS Vacuum Tank"

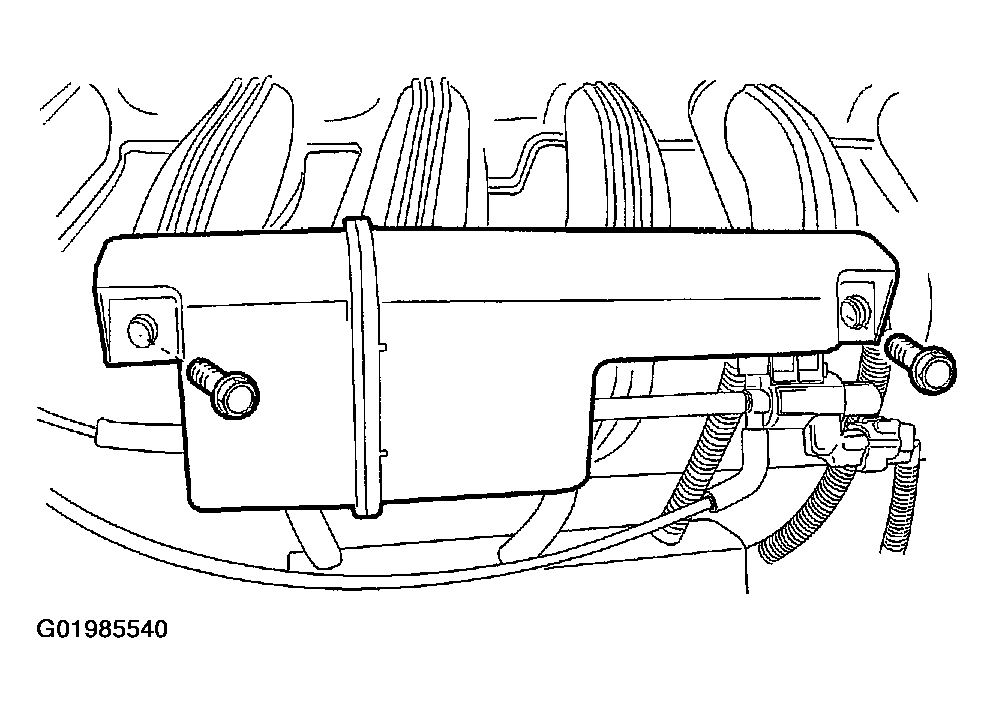

Fig 1: Removing VIS Vacuum Tank

G01985540

Courtesy of SUZUKI OF AMERICA CORP.

Remove the wiring harness from the wiring support bracket.

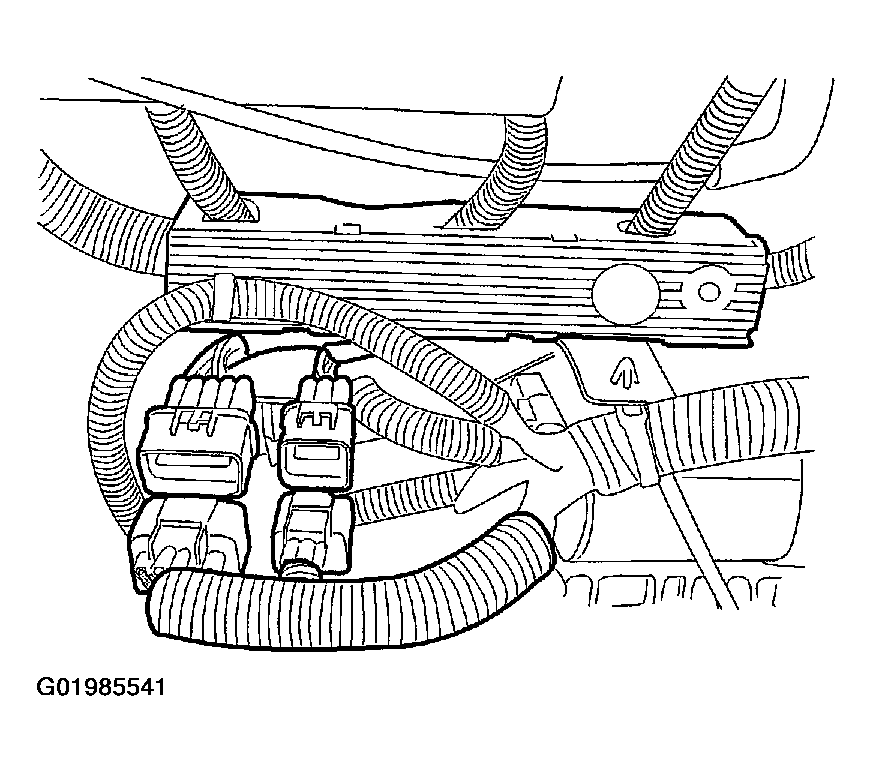

Fig 2: Removing Wiring Harness From Wiring Support Bracket

G01985541

Courtesy of SUZUKI OF AMERICA CORP.

Disconnect the knock sensor wiring harness connector.
Remove the knock sensor.

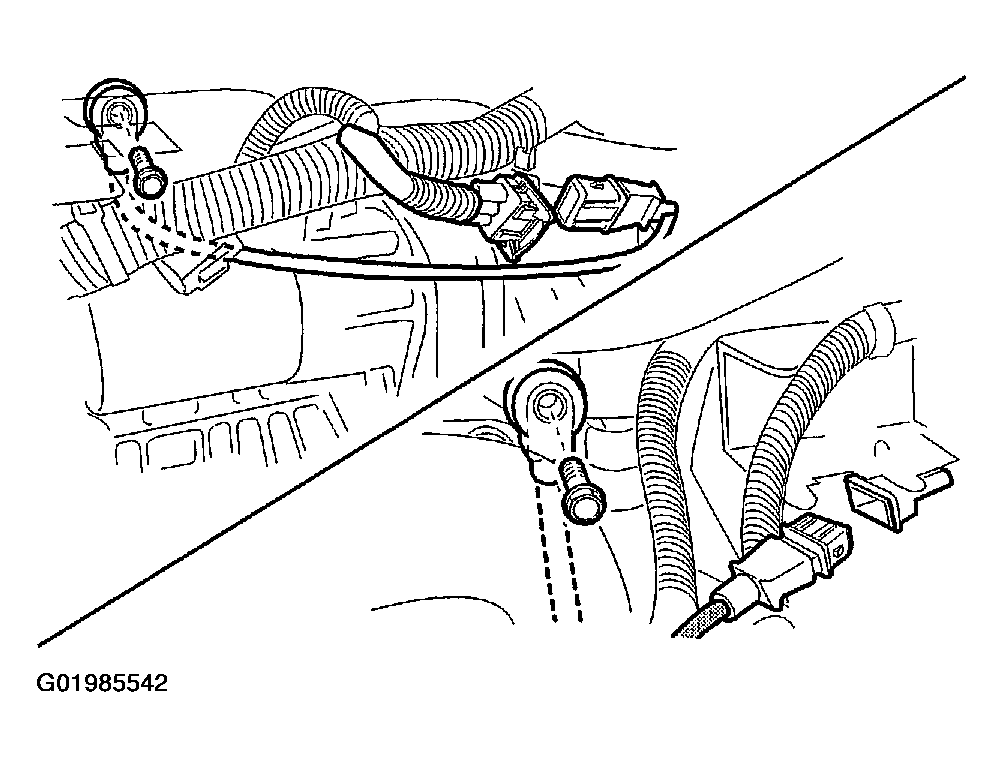

Fig 3: Removing Knock Sensor

G01985542

Courtesy of SUZUKI OF AMERICA CORP.
