Manifold Absolute Pressure (MAP) Sensor Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the manifold absolute pressure (MAP) sensor connector.
  3. Remove the MAP sensor.

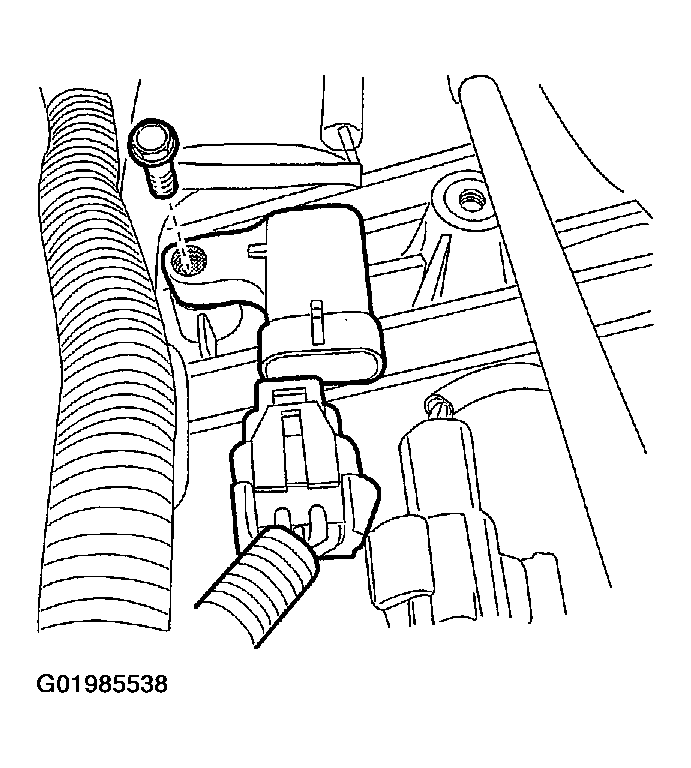

Fig 1: Removing MAP Sensor
G01985538Courtesy of SUZUKI OF AMERICA CORP.
