VIS Valve Installation

  1. Installation should follow the removal procedure in the reverse order.
  2. Install the VIS valve and the VIS actuator.

    Tighten

    1. Tighten the VIS valve retaining bolts to 10-13 N.m (89-115 lb-in).
    2. Tighten the VIS actuator retaining bolts to 10-13 N.m (89-115 lb-in).

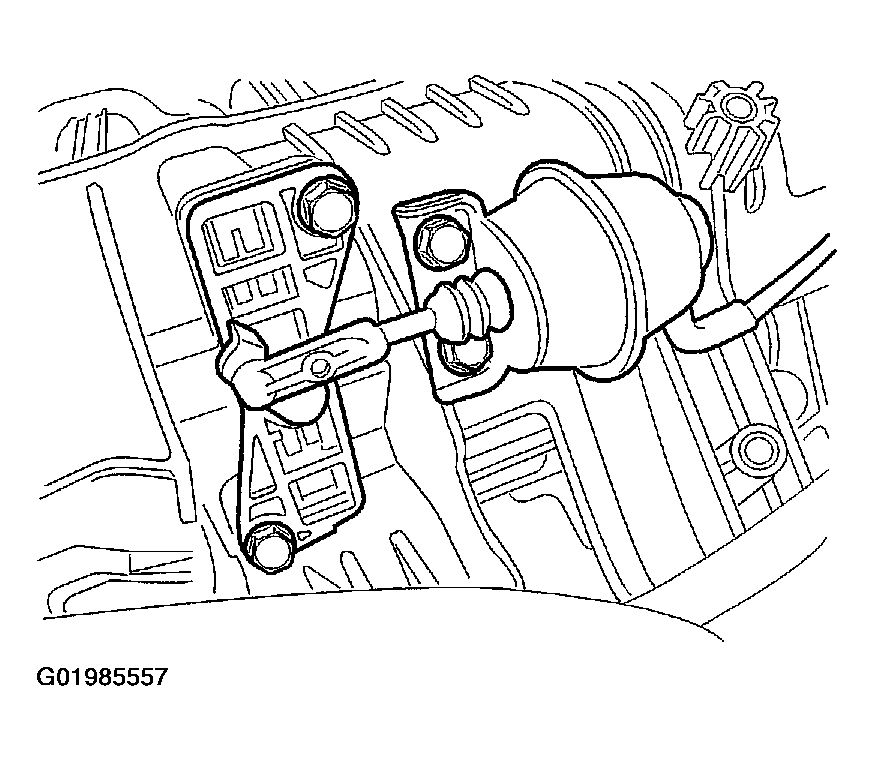

Fig 1: Installing VIS Valve & VIS Actuator
G01985557Courtesy of SUZUKI OF AMERICA CORP.
