VIS Valve Removal

Disconnect the negative battery cable.
Disconnect the throttle cable by opening the throttle and moving the cable through the release slot.

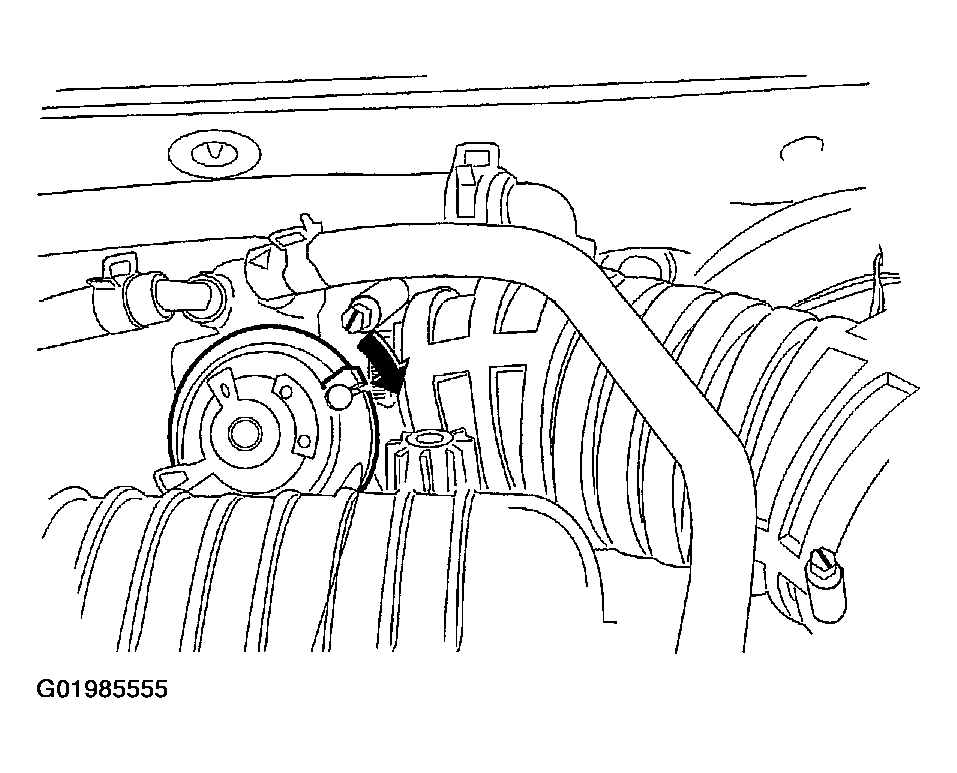

Fig 1: Disconnecting Throttle Cable

Courtesy of SUZUKI OF AMERICA CORP.

Disconnect the vacuum hose from the VIS actuator.
Remove the VIS actuator and the VIS valve.
NOTE: Make sure the VIS valve flap is closed before removing the VIS valve.

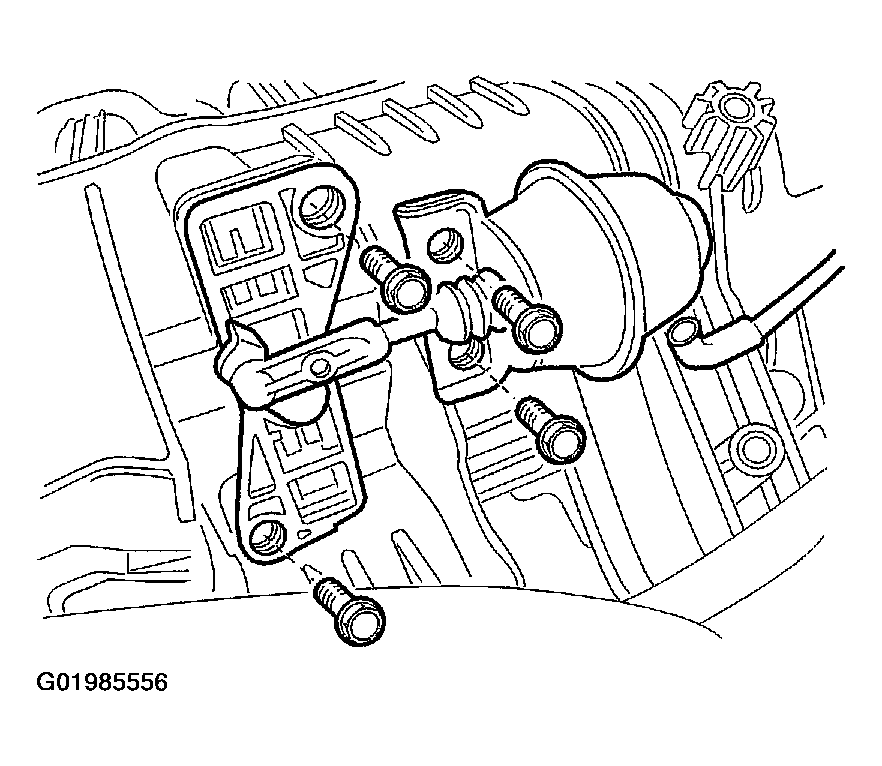

Fig 2: Removing VIS Actuator & VIS Valve

Courtesy of SUZUKI OF AMERICA CORP.
