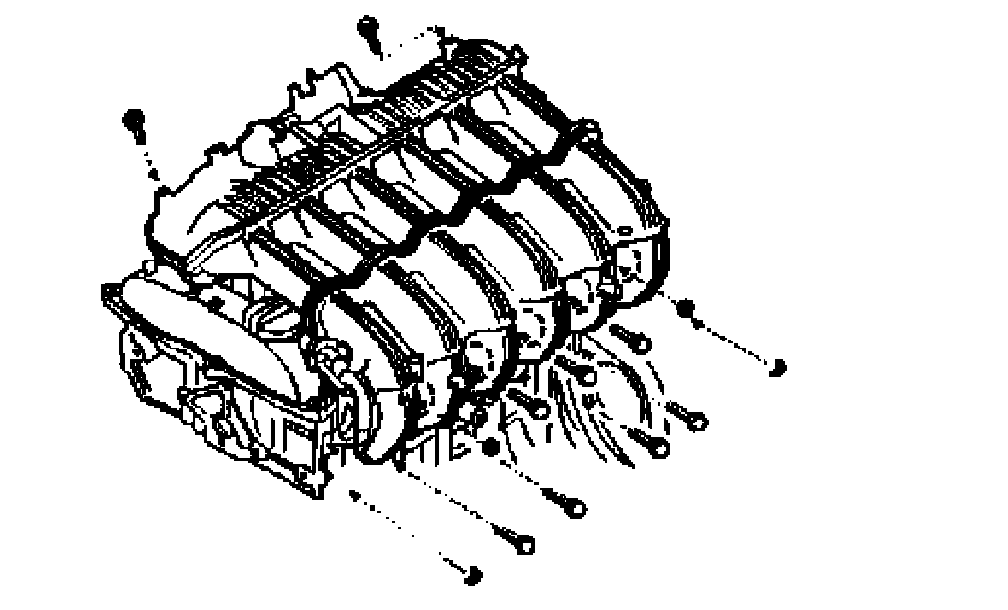

Intake Manifold

Intake Manifold Retaining Bolt/Nut 10 - 14 Nm (89 - 124 inch lbs.)
Intake Manifold Support Bracket Bolt 20 - 30 Nm (15 - 22 ft. lbs.)
Throttle Body Bolt 8 - 18 Nm (6 - 13 ft. lbs.)





Tighten the intake manifold retaining nuts and bolts.
Tighten the seven (7) intake manifold retaining bolts 10 - 14 Nm (89 - 124 inch lbs.)
Tighten the four (4) intake manifold retaining nuts 10 - 14 Nm (89 - 124 inch lbs.)
Tighten the two (2) bolts on the intake manifold support bracket 10 - 14 Nm (89 - 124 inch lbs.)
