Fuel Pressure Regulator Installation

  1. Installation should follow the removal procedure in the reverse order.
  2. Install the fuel pressure regulator.

    Tighten

    1. Tighten the fuel pressure regulator retaining bolts to 10-13 N.m (89-115 lb-in).
  3. Connect the fuel rail hose, fuel return hose, and vacuum hose to the fuel pressure regulator.

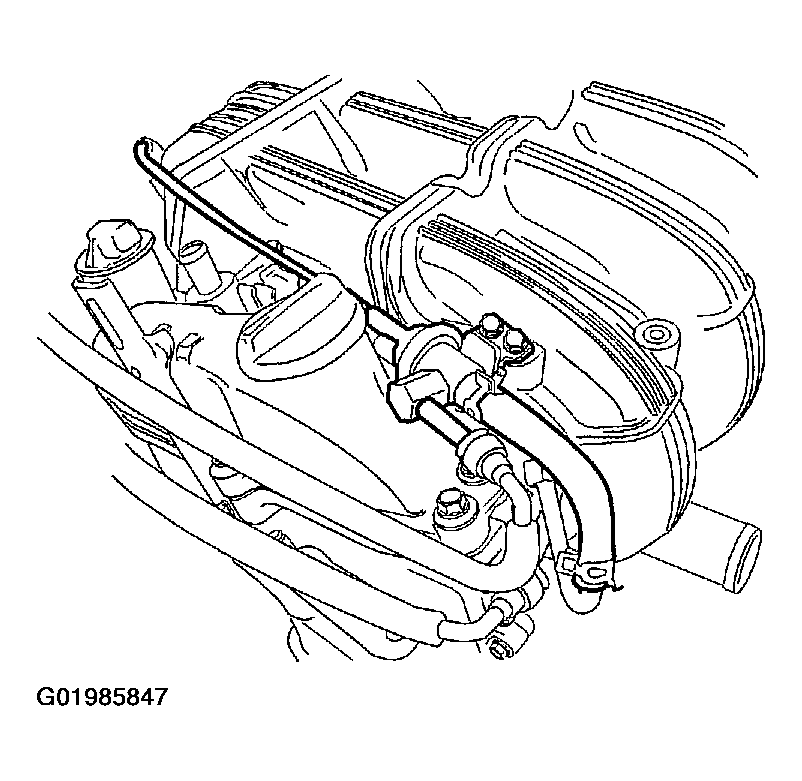

Fig 1: Connecting Fuel Rail Hose
G01985847Courtesy of SUZUKI OF AMERICA CORP.
