Intake Air Temperature (IAT) Sensor Installation

  1. Installation should follow the removal procedure in the reverse order.
  2. Install the IAT sensor.

    Tighten

    1. Tighten the intake air temperature (IAT) sensor to 20-30 N.m (15-22 lb-ft).

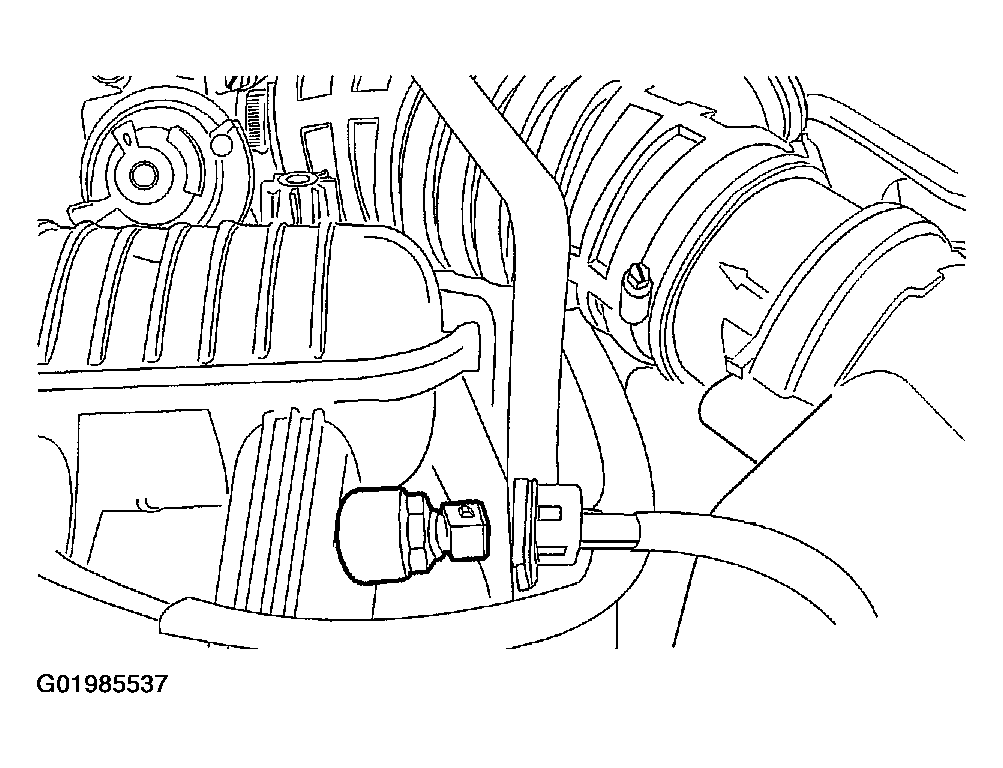

Fig 1: Installing IAT Sensor
G01985537Courtesy of SUZUKI OF AMERICA CORP.
