Noise Suppressor Inspection

Using ohmmeter, check to be sure that capacitor (condenser) in noise suppressor is not conductive. If check result is not satisfactory, replace noise suppressor.

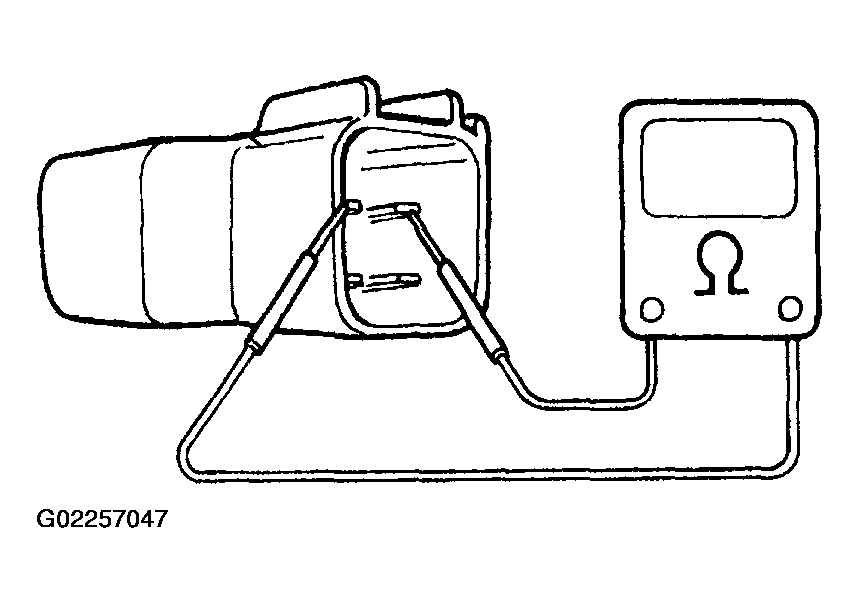

Fig 1: Checking Noise Suppressor

Courtesy of SUZUKI OF AMERICA CORP.
